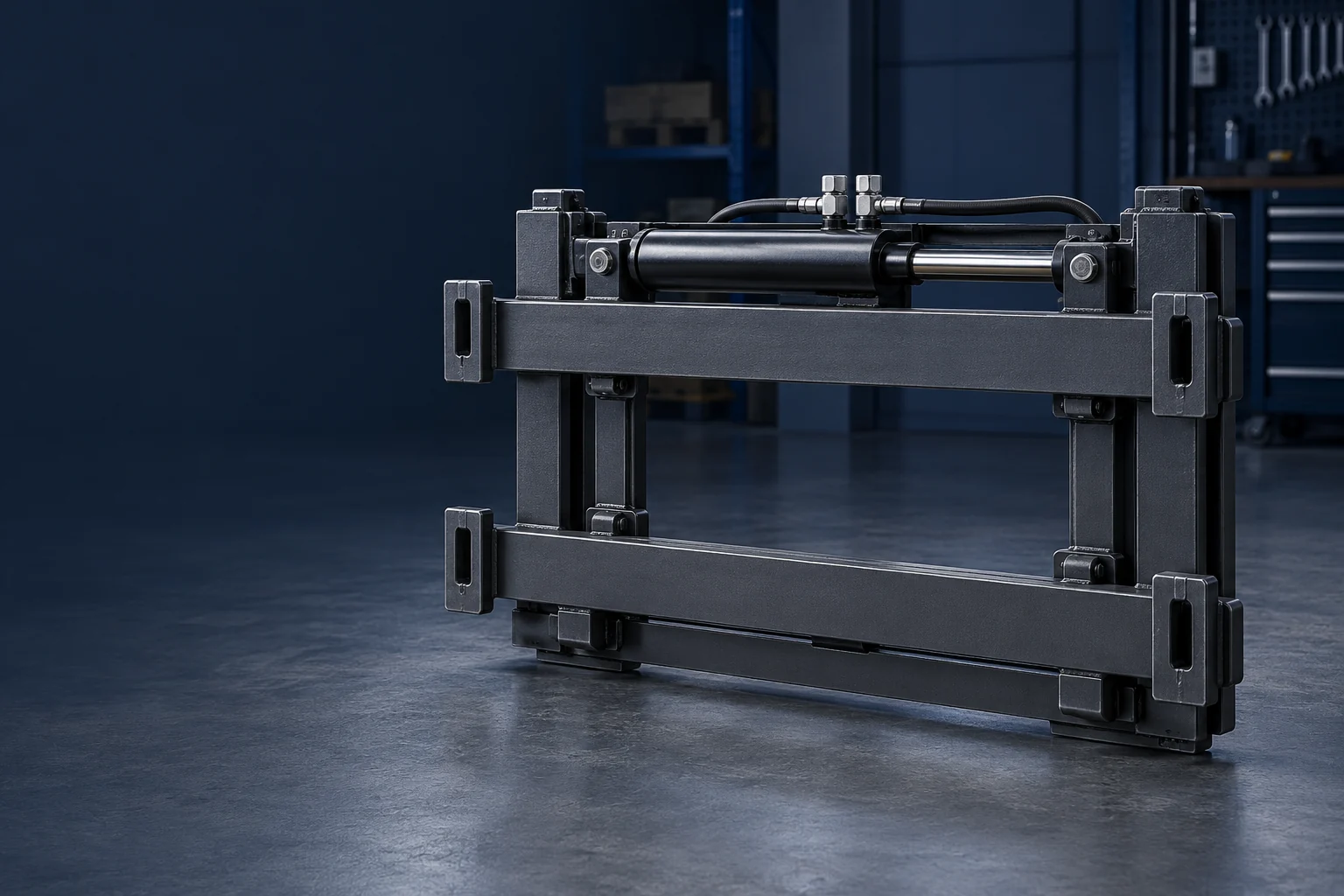

A forklift side shifter is a hydraulic attachment that slides the fork carriage left and right, letting the operator position a load precisely without repositioning the whole truck. It speeds up stacking and loading, reduces re-handling, and is matched to the forklift by ITA/FEM carriage class, width and rated capacity. ForkliftIQ supplies integral and hook-on side shifters compatible with Heli, Hangcha, EP, Toyota and other major brands.
Replacement and OEM-compatible forklift side shifters matched by carriage class, width and capacity for Heli, Hangcha, EP, Toyota, UN Forklift and most major fleets. ForkliftIQ ships integral and hook-on units factory-direct from verified suppliers, with cross-reference support and a fast parts quote.
What a side shifter does
A side shifter mounts to the forklift's mast carriage and uses a hydraulic cylinder (or twin cylinders) to move the forks a set distance to each side of center — commonly around 100 mm (4 in) each way, though this varies by model. Instead of inching the truck forward and back to line up with a rack opening, trailer bay or pallet, the operator nudges the load sideways. That precise placement cuts cycle times, reduces product and rack damage, and eases operator strain during repetitive stacking. It is one of the most common material-handling attachments on counterbalance and reach trucks.
Types: integral vs hook-on
Side shifters come in two main mounting styles. Integral units replace the truck's fork carriage entirely, giving a lower, more compact profile, better forward visibility and minimal lost load center. Hook-on (also called carriage-mounted) units hang onto the existing ISO/ITA carriage bars, making them a fast retrofit that keeps the original carriage in place. Both are specified by ITA/FEM carriage class — most forklifts use Class II, Class III or Class IV depending on capacity — and by carriage width. Choosing between them depends on whether you are retrofitting an existing truck or want the tightest possible profile.
Key specs & how to identify
To match a side shifter correctly, work through a handful of specifications. The most important is the ITA/FEM carriage class, which is set by the bar-to-bar height of the mast carriage — Class II, III and IV are standard steps up as truck capacity increases. Next is the carriage width so the unit fits the fork spread, the rated capacity (the load the attachment itself is rated to carry, at a stated load center), the shift distance to each side, and whether a hydraulic hose kit and fittings are included or need adding to an existing auxiliary function.
- ITA/FEM carriage class (II / III / IV)
- Carriage width to match fork spread
- Rated capacity at stated load center
- Side-shift distance each way
- Integral vs hook-on mounting
- Hose kit & auxiliary hydraulic port
Signs of wear
Side shifters wear where the carriage slides on its guides. Worn wear pads or bushings are the most common issue, showing up as excess play, uneven sliding or a knocking noise under load. Hydraulic drift — the carriage creeping sideways on its own — usually points to a worn cylinder seal or a leaking control valve, while visible fluid leaks at the cylinder or hose fittings mean seals or fittings need attention. Replacing wear pads early protects the more expensive carriage frame; browse compatible O-rings and wear pads to keep a unit sliding smoothly. If the attachment stops moving altogether, our repair walkthrough for a fork positioner or side shifter not working covers the usual hydraulic and valve causes.
Compatibility & sourcing
ForkliftIQ sources side shifters factory-direct from verified suppliers, including a parts partner carrying 85,000+ SKUs across electric and IC forklift platforms. We match every unit by carriage class, carriage width, capacity and truck model rather than by brand name alone, so a shifter built for one OEM truck can often be fitted to an equivalent machine. Remember that any attachment de-rates the truck: the added weight and forward load center reduce net capacity, so always follow the combined truck-plus-attachment capacity plate. We dropship worldwide on FOB or CIF terms and confirm fitment before shipping rather than publishing specs we can't guarantee.
| Spec | What to check | Why it matters |
|---|---|---|
| Carriage class | ITA/FEM Class II / III / IV | Sets bar-to-bar fit to the mast |
| Carriage width | Matches fork spread | Correct fork and load coverage |
| Rated capacity | At stated load center | Must not exceed truck rating |
| Mounting | Integral vs hook-on | Retrofit vs low profile |
Frequently Asked Questions
What carriage class side shifter do I need?
Match the side shifter to your truck's ITA/FEM carriage class (commonly Class II, III or IV) and carriage width. Measure the bar-to-bar height on the mast carriage, or send us your forklift brand, model and capacity and we'll confirm the correct class and fitment.
Will a side shifter reduce my forklift's capacity?
Yes. Any attachment adds weight and load-center offset, so the truck's rated capacity is de-rated. Always follow the derated capacity plate for the truck-plus-attachment combination and never exceed the side shifter's own rated load.
Integral or hook-on side shifter — which is right?
Hook-on units mount onto the existing carriage and suit retrofits, while integral side shifters replace the carriage for a lower profile and better visibility. Both are matched by carriage class, width and capacity. Tell us your truck and we'll advise.
Do you supply the hose kit and MOQ terms?
Most side shifters ship as the carriage assembly; hose kits, fittings and wear parts can be added. MOQ varies from a single replacement to distributor volume. Send your part list in a quote request and we'll confirm quantities, hoses and pricing.
