Hydraulic leaks on a forklift are common and almost always come from one of four places: cylinder rod seals, hose and fitting connections, the pump or motor shaft seal, or the control valve. Clean the area, cycle the mast, and trace the leak to its source before replacing parts.
Most likely causes
Worn cylinder rod or piston seals — Lift, tilt and steer cylinder seals harden and wear, letting oil weep past the rod or let the cylinder drift down under load.
Loose or cracked fittings — Vibration loosens fittings over time; over-torqued or corroded fittings crack and seep at the threads.
Damaged hoses — Abrasion, kinking or age cracks hoses, which then leak under working pressure.
Pump or control-valve shaft seal — A worn pump shaft seal or valve spool seal leaks oil at the pump or valve body itself.
How to diagnose it
1Park on level ground, lower the forks, relieve pressure and clean all suspect areas so fresh oil is easy to see.
2Cycle lift, tilt and steer slowly and watch where oil appears first.

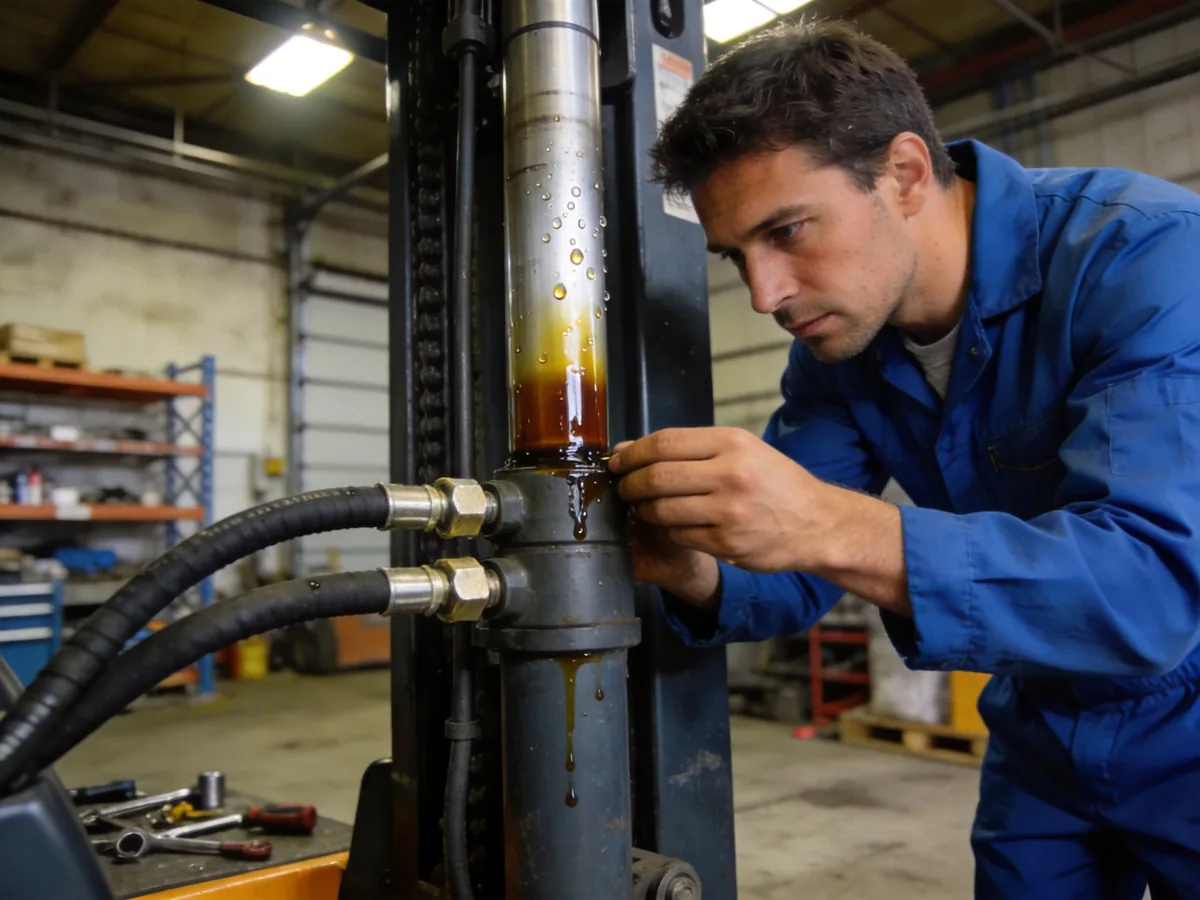

3Check cylinder rods for an oil film and for drift — forks or mast settling on their own indicate internal seal bypass.
4Inspect every hose and fitting for weeping, especially at bends and connectors, and torque any loose fittings to spec.
5Check the pump shaft seal and the control-valve body for oil tracks.
6Top up only with the correct hydraulic oil grade after the leak is repaired.
⚠ Safety: Hydraulic oil is under high pressure — never search for a leak with bare hands, because a pinhole jet can inject oil into skin. Use a piece of cardboard and lower the load first.
Parts that commonly fix this
FAQ
Why is my forklift leaking hydraulic oil?
Usually a worn cylinder rod seal, a loose or cracked fitting, a damaged hose, or a pump/valve shaft seal. Clean the area and cycle the hydraulics to find the source first.
Is it safe to use a forklift that leaks hydraulic oil?
No — a leak can drop the load if a cylinder loses pressure, and oil on the floor is a slip hazard. Fix the leak before returning the truck to service.
Why do my forks drift down on their own?
Forks settling under load usually means a leaking lift-cylinder seal or a leaking control-valve spool letting oil bypass internally.
What hydraulic oil does a forklift use?
Most use an ISO VG 32 to 46 hydraulic oil, but always follow the truck's service manual — mixing grades or types degrades performance.
