EP JX0

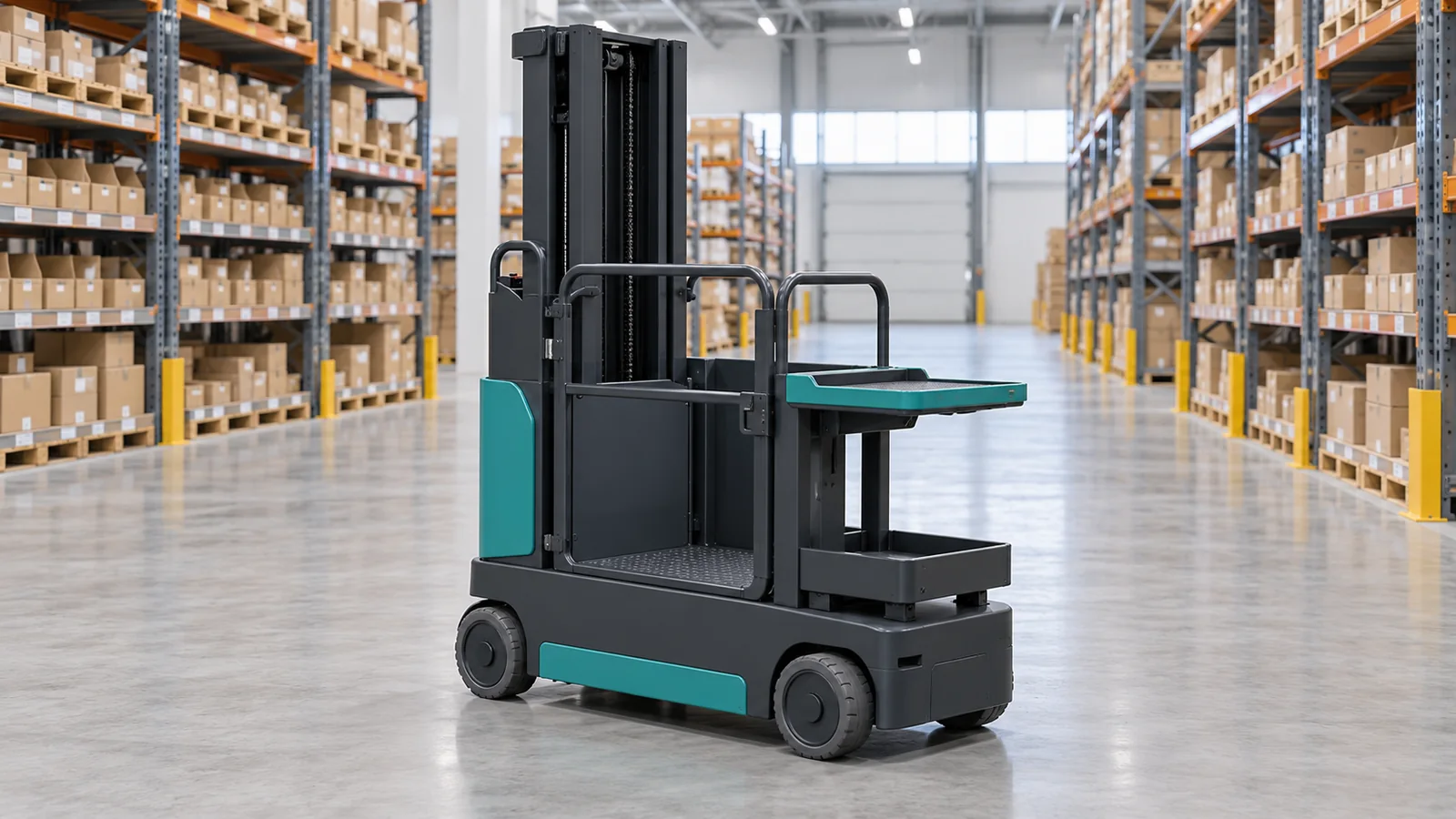

compact vertical order picker for piece-picking tasks. Define the picking task and each load zone; do not treat picking height as platform height or combine separate load limits.
Reviewed 2026-09-30 · manufacturer claims remain attributed · quotation-specific evidence required
Published scope
Start with the claim, then identify the offered truck.
The facts below summarize the source reviewed by ForkliftIQ. They do not prove current availability, regional configuration or suitability for a particular site.
Buyer interpretation
Define the picking task and each load zone; do not treat picking height as platform height or combine separate load limits.
A model name helps organize research. Technical approval still depends on one exact configuration and a written operating requirement.
Application boundary
This route is for bringing an operator to shelf-level goods. Specify item size, individual weight, picking frequency, shelf depth and how goods leave the aisle. A vertical picker and a pallet stacker solve different handling jobs; avoid selecting either from the same capacity column.
Configuration evidence
The manufacturer uses multiple height terms and separate load numbers. Obtain the current diagram and manual to identify each zone and reference point. Do not add the three figures into one lifting rating, and do not convert a picking reach into a platform-height specification.
Operating-system check
Measure clear aisle width, turns, doors and overhead obstructions and require a supervised representative-task trial. The battery and charger option should follow the break schedule and installation. Record charging access and responsibility for recovery, inspection and local support before ordering.
Information to measure before requesting this model
Record shelf heights, picking depth, carton size, individual item weights, order frequency, aisle pinch points, doors, overhead restrictions and transfer points. Define the pedestrian interaction, floor condition and actual charging windows.
Prepare a goods-flow drawing and ask the supplier to identify the operator and goods zones, their individual limits and the exact height reference points. Preserve all relevant footnotes. Establish training, inspection and local service responsibilities before agreeing delivery.
Questions for the quotation
- Which limit applies to the operator, goods tray and lower shelf, and what does the asterisk mean?
- How are standing height, tray lift and picking reach defined for this quoted model?
- Which charger and battery are supplied, and which electrical input is required?
- What inspection, training, interlock verification and recovery procedures apply at our site?
Documents to request
Ask for the complete model and option codes, a dated model-specific data sheet, dimensions, the configuration-specific load chart, battery and charger data, attachment approval, tyre specification, operator and maintenance manuals, scheduled service requirements and the applicable destination-market conformity records. The contracting party should identify who commissions the truck, provides training, supports diagnostics, supplies parts and carries warranty responsibility.
How to compare an alternative
Build one comparison sheet and hold the operating case constant. Use the same load, load centre, lift height, attachment, aisle or route, gradients, floor, temperature, shifts and charging window for every candidate. Ask suppliers to show where each quoted value comes from and whether it is standard, optional, calculated, tested or dependent on a market package.
Separate truck price from the operating system around it. Include charger and electrical work, battery replacement assumptions, tyres, scheduled service, diagnostic access, software or telematics fees, training, commissioning, freight, spare parts and expected downtime support. A lower equipment price can produce a higher operational cost when these boundaries are omitted.
Commercial and delivery boundary
Record the legal seller, Incoterm, delivery location, included options, excluded installation work, document language, acceptance method, warranty start, response time and responsible service entity. Require written change control when the supplier substitutes a mast, battery, charger, tyre, controller or software package after the technical review.
Parts and service identity
The family name is not sufficient for a parts match. Preserve the data plate, full model, serial number, mast and attachment details, battery voltage, controller and display labels, old component number, connectors, ports, mounting points and dimensions. Ask the source of every proposed replacement: catalogue record, drawing, supersession notice or written manufacturer confirmation.
Define the goods flow before the truck
List the typical and largest item, carton shape, individual weight, picking rate and shelf depth. Describe how orders are consolidated and transferred to the next process. Establish whether a worker can keep the goods within the approved storage zones throughout the task. A narrow chassis measurement does not resolve the space needed for stock, carts or pedestrians beside the vehicle.
Keep height definitions separate
Request a drawing that marks floor level, operator standing surface, goods tray and intended reach. Use the correct reference when measuring overhead obstacles and accessible shelves. The quotation must identify the exact variant and battery package. Have the supplier explain any difference between headline language, the detailed table and the current manual before accepting the offer.
Inspection and recovery responsibilities
Agree who provides operator instruction, commissioning and inspection records and who can respond to an equipment fault. Ask for the manufacturer's documented procedures for the offered configuration, including recovery and any operator-presence or gate controls. Define the acceptance demonstration around the site task and applicable instructions rather than inventing operating steps.
Service parts for a personnel-picking vehicle
Preserve the platform and gate identification, mast record, control-panel label, traction controller, wheels, battery and charger codes with the serial number. Changes to controls or interlock components require evidence from the responsible source. A visually similar part does not establish suitability. Use the parts request form to organize identity and source documents, and compare the different job of the ES16-RS pallet stacker before choosing a route.
Evidence boundary
ForkliftIQ has not inspected or tested this truck. Published capacity, dimensions, energy and software statements remain attributed to the manufacturer source. Current availability, exact configuration, regional documentation, dealer authority, lead time, field performance and warranty must be confirmed in writing for the offered truck.
