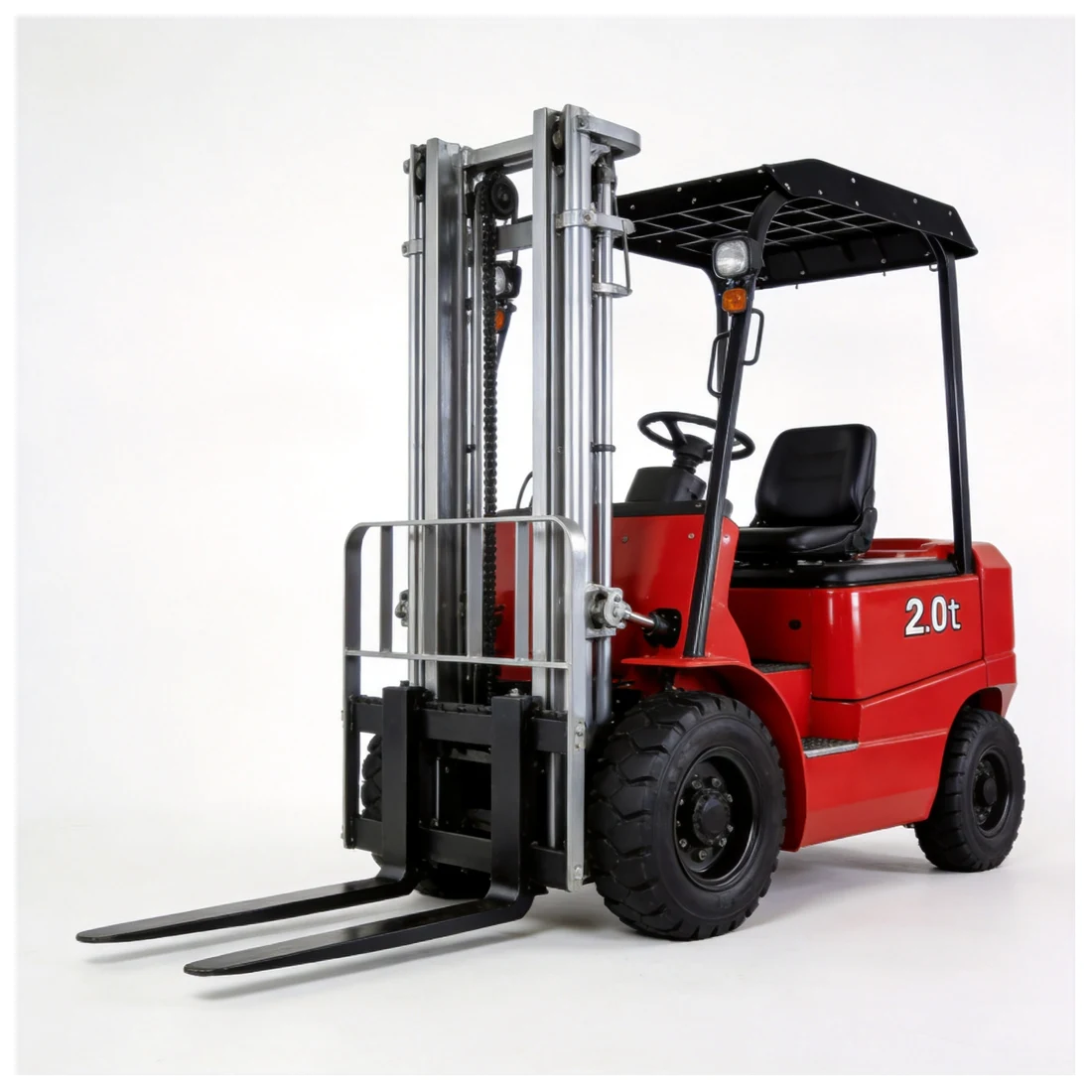

2-Ton Electric Counterbalance Forklift — CPD20
A 2000 kg (2-ton) electric sit-down counterbalance forklift for indoor and mixed-duty handling — maintenance-free AC drive, full-hydraulic steering and clean electric power.
At a glance
Specifications are indicative and customizable (lift height, battery, forks, attachments). Confirmed on quotation.
Full specifications
| Rated capacity | 2000 kg (2 t) |
| Load centre | 500 mm |
| Power | Electric — AC motor (maintenance-free lead-acid; lithium-ion optional) |
| Max lift height | 3000 mm (3 m) — customizable |
| Mast lowered height | 2050 mm |
| Overall length (to fork face) | 2220 mm |
| Overall width | 1120 mm |
| Service weight | 2480 kg |
| Tyres | Four-wheel solid (puncture-proof) |
| Drive | Integral drive axle, AC motor, maintenance-free |
| Steering | Full hydraulic power steering |
Key features
Maintenance-free AC drive
All-AC motor with intelligent fault controller — low failure rate and lower running cost than DC or IC trucks.
OPS + fingerprint start
Operator-presence sensing plus fingerprint recognition keeps the truck immobile unless a seated, authorised driver is on board.
Full-hydraulic steering
Light, low-noise power steering with smooth, jerk-free lifting from the full-hydraulic system.
Climb assist
High/low-speed climbing assistance prevents roll-back and load slip on ramps.
Full LCD instrument
Real-time read-out of battery, hours, fault codes and running status.
Built to last
Cast-iron counterweight, manganese-steel forks, and imported, low-temperature oil seals (waterproof, anti-seepage).
Power & customization
Lift height, battery capacity, fork length and attachments are all customisable. Supplied with a maintenance-free lead-acid pack as standard; a drop-in lithium-ion battery is available on request.
Frequently asked questions
Is this forklift available with a lithium battery?
Yes. The 2-ton CPD20 ships with a lead-acid pack as standard, and a drop-in lithium-ion option is available for multi-shift or cold-store duty.
What lift heights can I order?
3 m is standard. Two- and three-stage masts (and full free-lift versions) up to 4.5–6 m are available — specify your door and racking heights when you request a quote.
What is the minimum order quantity?
We ship from a single unit for sample/first orders. Full-container (FCL) pricing gives the best unit cost — ask for both single-unit and container quotes.
