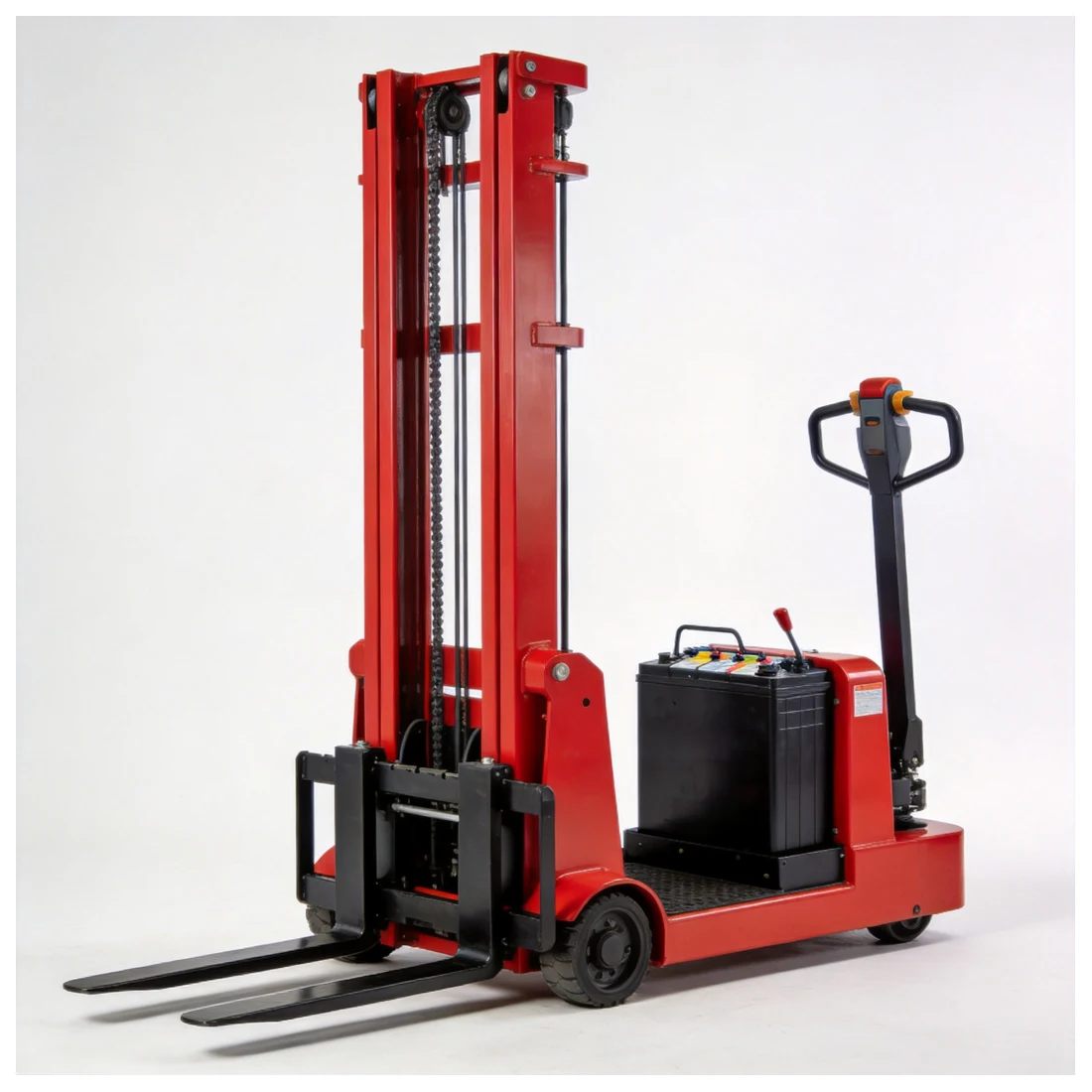

Full-Electric Walkie Stacker — CDD15
Full-Electric Walkie Stacker, 1,500 kg capacity — presented as a reference for a written supplier inquiry. Indicative, customizable specifications.
At a glance
These are reference values, not specifications assigned to the linked supplier. Require the actual offered model and supporting documents.
Full specifications
| Rated capacity | 1500 kg |
| Max lift height | 3000 mm — customizable |
| Drive | Electric, AC/DC |
| Fork length | 1150 mm |
| Battery | 24V (indicative) |
| Mast | Two-stage |
| Steering | Electric tiller |
Key features
Lift to height
Vertical mast lifts pallets onto racking and mezzanines, not just floor-to-floor.
Walk-behind compact
Tiller-controlled walkie design needs little aisle space.
Electric drive & lift
Battery power for clean, quiet indoor operation with smooth proportional lift.
Customizable mast
Single, two- or three-stage masts and fork lengths to suit your racking.
Questions before a CDD15 inquiry
What should I include in a CDD15 inquiry?
Describe the pallet, load, rack height, travel distance and shift pattern. Ask the offer to identify the powered travel and lifting functions and the proposed battery and charger.
Which specifications should I confirm before ordering?
Request the manufacturer and complete model designation, data sheet, mast and dimension drawings, applicable capacity documentation, and battery and charger details. The existing numerical listings are indicative and have not been verified in this FAQ correction; they are not approval for your load or layout.
Are order quantity, availability and delivery confirmed?
No minimum order quantity, stock status, price advantage or delivery period is confirmed by this FAQ. Request a dated offer identifying the exact equipment, quantity, included items and delivery terms.
Request a quote on the CDD15
Tell us your pallet size, lift height, aisle width and destination port — use those details to request a comparable written offer.
Get my quote1.5-ton walkie stacker supplier research
Hangcha documents an A-series mini stacker family, CD(T)D12/15, with nominal capacities of 1.2 and 1.5 tonnes and lithium-battery power.
Scope of this link: Capacity-family overlap does not identify this CDD15 reference as a particular Hangcha configuration. Confirm powered travel and lift, operator arrangement, mast, usable capacity at height, battery, charger and pallet access in the actual offer.
Prepare the pallet and rack requirement
Provide pallet dimensions, bottom-board layout and fork-entry direction, load dimensions and centre of gravity, rack beam height, door clearance and measured aisle space. Separate nominal capacity from the capacity chart for the proposed lift height, mast and load centre. Ask for a chassis drawing showing the fork and support-leg arrangement; a similar category name does not establish access to a closed pallet.
List travel distance, work frequency, floors and charging arrangements. Require the offer to identify powered travel, powered lift and any manual functions, together with the exact battery, charger, included accessories and commissioning scope. Compare the technical response before price and record unresolved dimensions instead of assuming the reference values apply.
