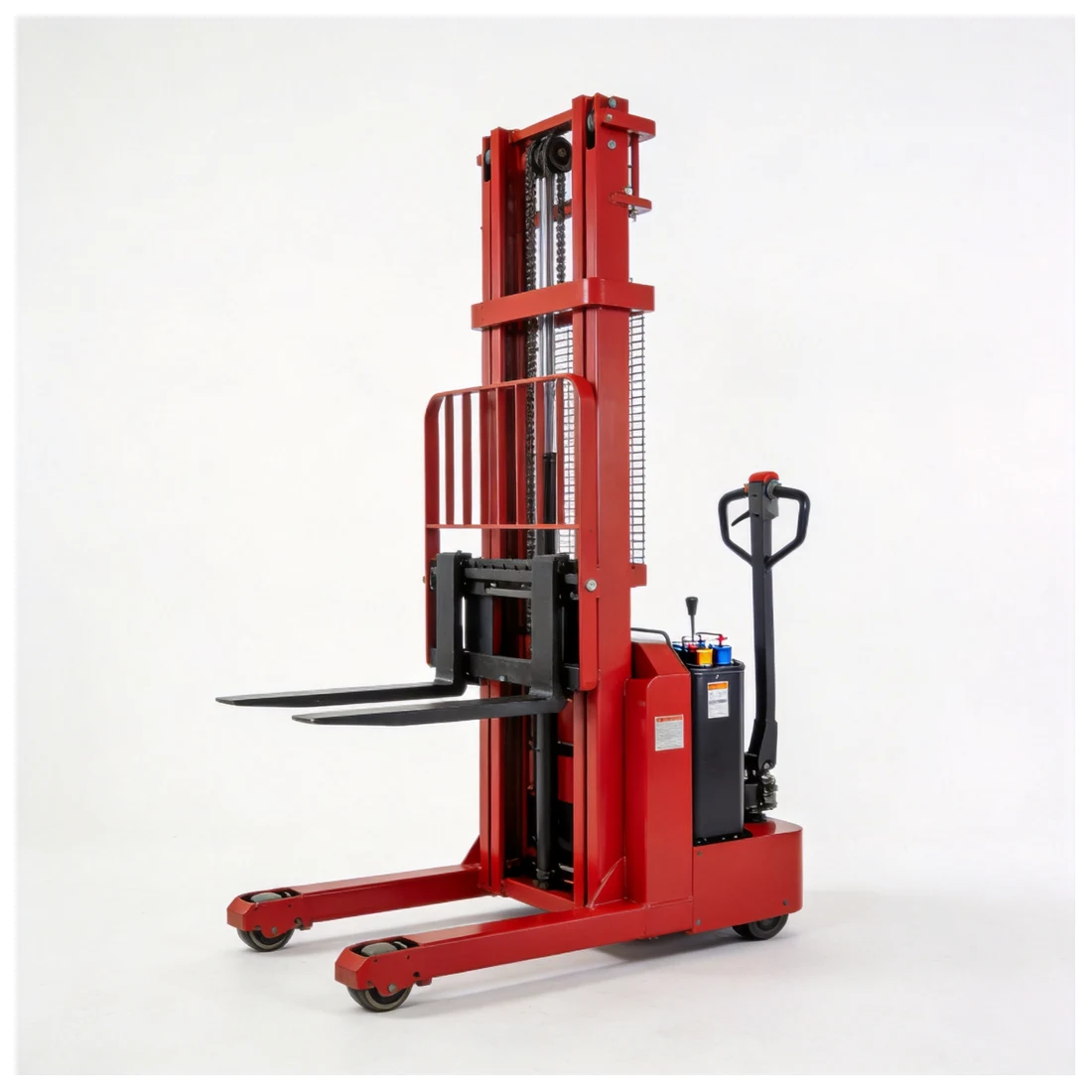

Heavy-Duty Straddle Stacker — CDD20
Heavy-Duty Straddle Stacker, 2,000 kg capacity — presented as a reference for a written supplier inquiry. Indicative, customizable specifications.
At a glance
These are reference values, not specifications assigned to the linked supplier. Require the actual offered model and supporting documents.
Full specifications
| Rated capacity | 2000 kg |
| Max lift height | 3500 mm — customizable |
| Type | Straddle-leg, full-electric |
| Drive | AC electric |
| Fork length | 1150 mm |
| Battery | 24V (indicative) |
| Mast | Two-stage |
Key features
Lift to height
Vertical mast lifts pallets onto racking and mezzanines.
Walk-behind compact
Tiller-controlled walkie design needs little aisle space.
Electric drive & lift
Clean, quiet indoor operation with smooth proportional lift.
Customizable mast
Single, two- or three-stage masts and fork lengths to suit your racking.
Questions before a CDD20 inquiry
What should I include in a CDD20 inquiry?
Send pallet width, fork-entry dimensions, load details and rack layout. Request the proposed chassis and support-leg drawing before assuming that the truck fits your pallet or aisle.
Which specifications should I confirm before ordering?
Request the manufacturer and complete model designation, data sheet, mast and dimension drawings, applicable capacity documentation, and battery and charger details. The existing numerical listings are indicative and have not been verified in this FAQ correction; they are not approval for your load or layout.
Are order quantity, availability and delivery confirmed?
No minimum order quantity, stock status, price advantage or delivery period is confirmed by this FAQ. Request a dated offer identifying the exact equipment, quantity, included items and delivery terms.
Request a quote on the CDD20
Tell us your load, working height and destination port — use those details to request a comparable written offer.
Get my quoteStraddle-leg stacker supplier research
NOBLELIFT identifies PS12/16/18TSL as straddle-leg electric pedestrian stackers, with nominal capacities of 1.2, 1.6 and 1.8 tonnes.
Scope of this link: The published family ends at 1.8 tonnes and does not satisfy a confirmed 2-tonne requirement. This is a chassis-layout research route only. CDD20 is not assigned to NOBLELIFT; obtain a different documented offer if 2 tonnes is essential.
Prepare the pallet and rack requirement
Provide pallet dimensions, bottom-board layout and fork-entry direction, load dimensions and centre of gravity, rack beam height, door clearance and measured aisle space. Separate nominal capacity from the capacity chart for the proposed lift height, mast and load centre. Ask for a chassis drawing showing the fork and support-leg arrangement; a similar category name does not establish access to a closed pallet.
List travel distance, work frequency, floors and charging arrangements. Require the offer to identify powered travel, powered lift and any manual functions, together with the exact battery, charger, included accessories and commissioning scope. Compare the technical response before price and record unresolved dimensions instead of assuming the reference values apply.
