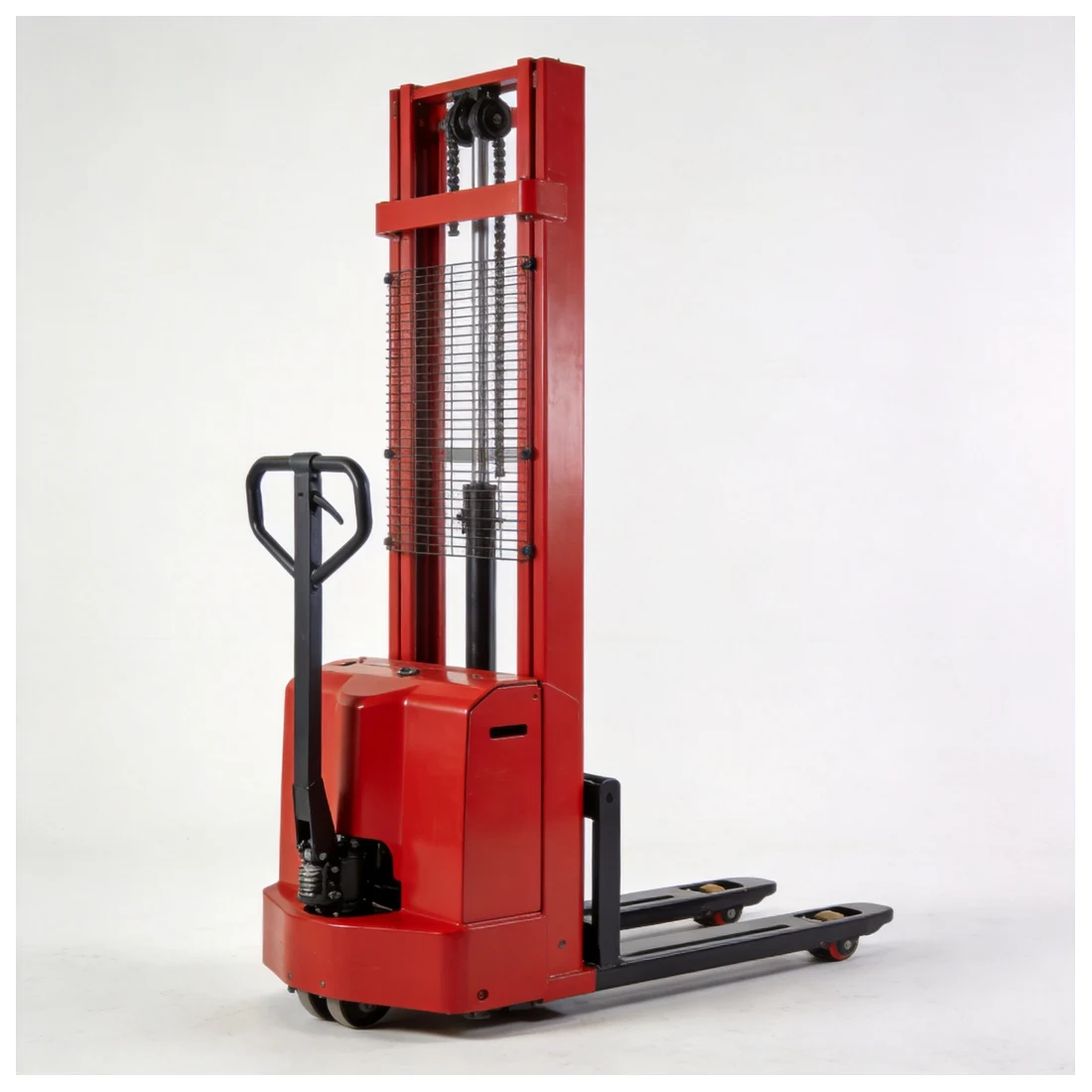

Semi-Electric Stacker — SES-10
Semi-Electric Stacker, 1,000 kg capacity — presented as a reference for a written supplier inquiry. Indicative, customizable specifications.
At a glance
These are reference values, not specifications assigned to the linked supplier. Require the actual offered model and supporting documents.
Full specifications
| Rated capacity | 1000 kg |
| Max lift height | 1600 mm |
| Power | Electric lift, manual travel |
| Fork length | 1150 mm |
| Battery | 12V/24V (indicative) |
| Mast | Single-stage |
Key features
Lift to height
Vertical mast lifts pallets onto racking and mezzanines, not just floor-to-floor.
Walk-behind compact
Tiller-controlled walkie design needs little aisle space.
Lift and travel arrangement
The current listing describes electric lifting and manual travel. Ask the offer to confirm both functions for the proposed unit.
Customizable mast
Single, two- or three-stage masts and fork lengths to suit your racking.
Questions before a SES-10 inquiry
What should I include in a SES-10 inquiry?
Describe the load, pallet, lift height, travel distance and work frequency. Ask which functions are powered and which require manual effort in the exact proposed configuration.
Which specifications should I confirm before ordering?
Request the manufacturer and complete model designation, data sheet, mast and dimension drawings, applicable capacity documentation, and battery and charger details. The existing numerical listings are indicative and have not been verified in this FAQ correction; they are not approval for your load or layout.
Are order quantity, availability and delivery confirmed?
No minimum order quantity, stock status, price advantage or delivery period is confirmed by this FAQ. Request a dated offer identifying the exact equipment, quantity, included items and delivery terms.
Request a quote on the SES-10
Tell us your pallet size, lift height, aisle width and destination port — use those details to request a comparable written offer.
Get my quoteSemi-electric stacker supplier research
A reachable NOBLELIFT catalogue record labels SPN10/15(C) a standard semi-electric stacker and displays nominal capacities of 1,000 and 1,500 kg.
Scope of this link: This legacy record has an inconsistent AGV breadcrumb. Only its explicit semi-electric product label and displayed capacity range are used here. It does not prove current supply, autonomous operation, travel mode, lift height or battery specification; SES-10 is not an official NOBLELIFT model assignment.
Prepare the pallet and rack requirement
Provide pallet dimensions, bottom-board layout and fork-entry direction, load dimensions and centre of gravity, rack beam height, door clearance and measured aisle space. Separate nominal capacity from the capacity chart for the proposed lift height, mast and load centre. Ask for a chassis drawing showing the fork and support-leg arrangement; a similar category name does not establish access to a closed pallet.
List travel distance, work frequency, floors and charging arrangements. Require the offer to identify powered travel, powered lift and any manual functions, together with the exact battery, charger, included accessories and commissioning scope. Compare the technical response before price and record unresolved dimensions instead of assuming the reference values apply.
