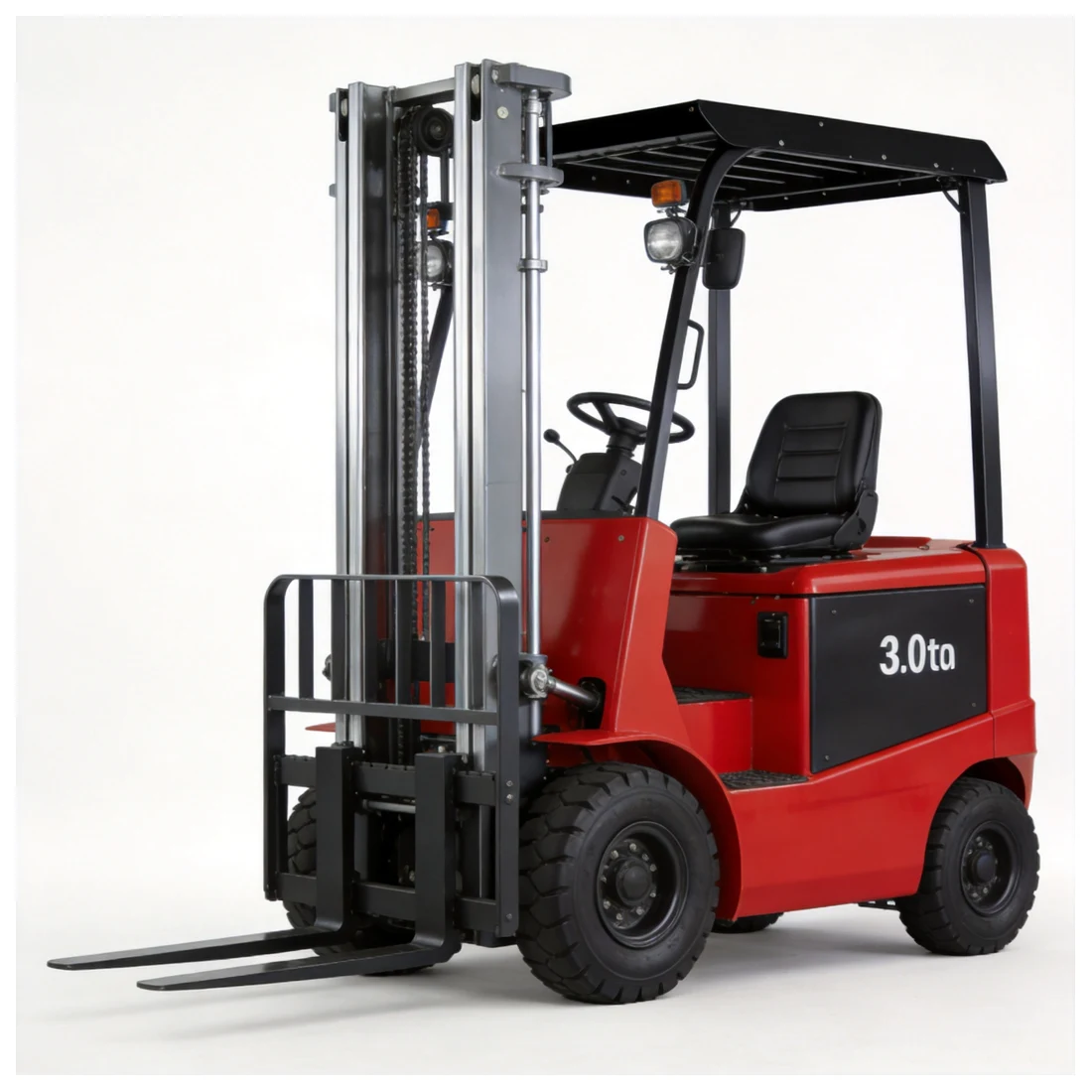

3-Ton Lithium-Ion Forklift — CPD30
A 3000 kg (3-ton) lithium-battery sit-down counterbalance forklift for indoor and mixed-duty handling — maintenance-free AC drive, full-hydraulic steering and zero-emission lithium power.
At a glance
Specifications are indicative and customizable (lift height, battery, forks, attachments). Confirmed on quotation.
Full specifications
| Rated capacity | 3000 kg (3 t) |
| Load centre | 500 mm |
| Power | Lithium-ion battery (maintenance-free, opportunity-charging) |
| Max lift height | 3000 mm (3 m) — customizable |
| Mast lowered height | 2050 mm |
| Overall length (to fork face) | 2580 mm |
| Overall width | 1200 mm |
| Service weight | 3500 kg |
| Tyres | Four-wheel solid (puncture-proof) |
| Drive | Integral drive axle, AC motor, maintenance-free |
| Steering | Full hydraulic power steering |
Key features
Maintenance-free AC drive
All-AC motor with intelligent fault controller — low failure rate and lower running cost than DC or IC trucks.
OPS + fingerprint start
Operator-presence sensing plus fingerprint recognition keeps the truck immobile unless a seated, authorised driver is on board.
Full-hydraulic steering
Light, low-noise power steering with smooth, jerk-free lifting from the full-hydraulic system.
Climb assist
High/low-speed climbing assistance prevents roll-back and load slip on ramps.
Full LCD instrument
Real-time read-out of battery, hours, fault codes and running status.
Built to last
Cast-iron counterweight, manganese-steel forks, and imported, low-temperature oil seals (waterproof, anti-seepage).
Power & customization
Lift height, battery capacity, fork length and attachments are all customisable. A larger-Ah lithium pack or fast charger can be specified for continuous multi-shift duty.
Frequently asked questions
How long does the lithium battery last?
The 3-ton CPD30 uses a maintenance-free lithium-ion pack that supports opportunity-charging and typically lasts 8–10 years / 3,000+ cycles. Tell us your shift pattern and we will size the battery.
What lift heights can I order?
3 m is standard. Two- and three-stage masts (and full free-lift versions) up to 4.5–6 m are available — specify your door and racking heights when you request a quote.
What is the minimum order quantity?
We ship from a single unit for sample/first orders. Full-container (FCL) pricing gives the best unit cost — ask for both single-unit and container quotes.
Request a quote on the CPD30
Tell us your lift height, shift pattern and destination port — we’ll send single-unit and full-container pricing, lead time and options.
