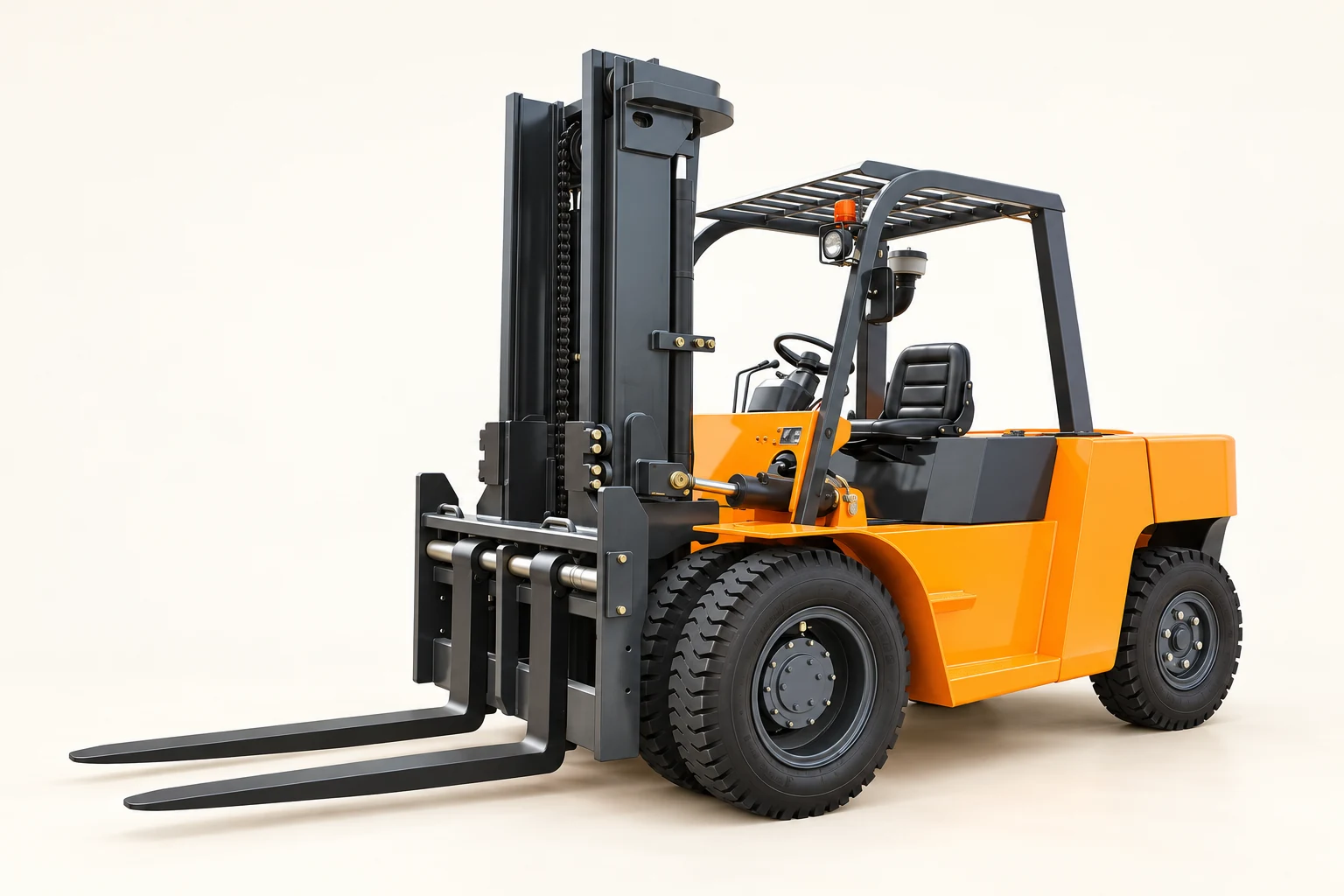

H-series stone-handling forklifts

What the official reference establishes

The manufacturer specialist-product page identifies a 7.5–12-tonne stone-handling range. Its linked brochure imagery labels the H series and distinguishes stone and rental versions. The visible table includes CPCD75AH, CPCD80AH, CPCD100AH and CPCD120AH entries. This establishes a supplier catalogue family, rather than a guarantee that any stone load, attachment or site route is acceptable for a given truck.

Define the work before choosing a configuration

Keep H/AH references separate from the J-series diesel table. Similar load classes or shared CPCD stems are not evidence of the same chassis or specification. The CPCD120AH rental and stone entries remain configuration variants within this reference. Their differences must be resolved in the current quotation and drawings; the page does not create two purportedly verified products from those two table columns.

Keep the supply package explicit

Describe the stone or block dimensions, mass distribution, centre of gravity, intended attachment and site route. Ask the supplier and responsible assessor for current configuration drawings and the documents applicable to the complete combination. The original brochure includes overload-related marketing language; no overload approval or operating instruction is adopted here. A specialist product title alone does not establish the allowable load, handling method or suitability for a particular project.

Questions for the proposed product

Which complete configuration would be supplied?

Request the full model and series designation, current revision, mast, tyres, energy system or engine, forks and attachments. Match these details across the quotation, drawing and delivery documents.

What should be supplied for the site assessment?

Provide the load dimensions and distribution, required working envelope, route, duty pattern and destination. Ask the responsible supplier and qualified assessor to document the proposed combination. This reference does not approve equipment selection or release into service.

How can competing offers be compared?

Separate the truck, energy package, options, documents, delivery, commissioning and support. Record assumptions and exclusions, and confirm the legal entity issuing the quotation rather than relying solely on a brand name.

From product research to a comparable request

Prepare a written equipment requirement around the actual load, working envelope, route and duty pattern. Request a full series/model designation and current configuration documents. Compare the truck, energy system or engine, mast, attachments, accessories, delivery and support separately. A shared short code, similar appearance or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The jaczg.com contact page explicitly identifies Anhui Jianghuai Heavy Construction Machinery and the Shanghai Road 2, Hefei address matching the existing supplier record. The selected product page and original brochure images were read over ordinary HTTP. HTTPS has a certificate problem; no check was bypassed. Product pages are undated and image-file dates are not treated as issue dates. The site states that parameters can change. Model labels and family headings are attributed catalogue information, not independent tests, current stock or an approved site configuration. Parent-company statements on older international pages are not used to resolve current ownership. Safety, overload, certification, performance, environmental limits and fitment claims are not adopted. This is procurement preparation, not an operating, installation or repair procedure.
