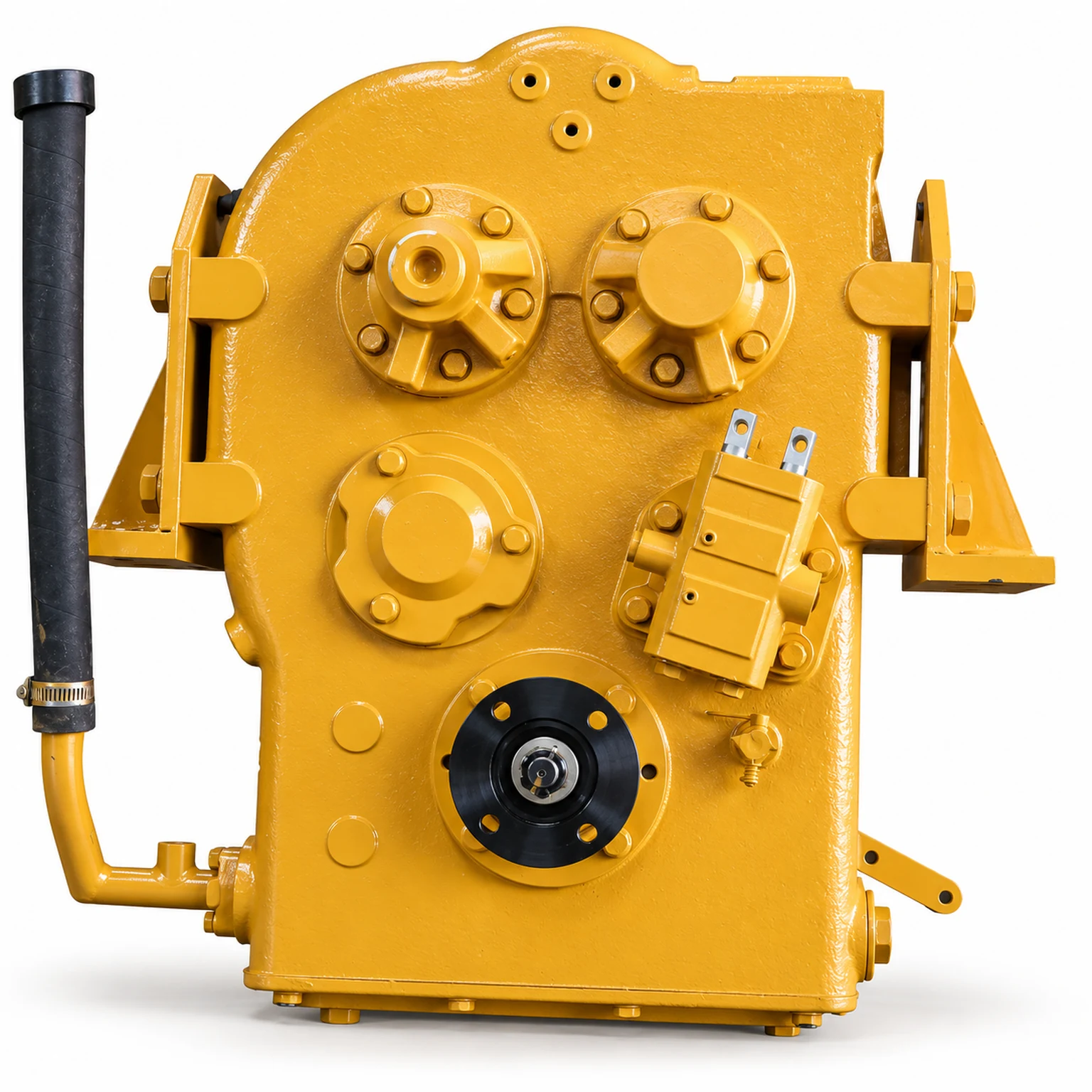

Haiyutong ZL20 split transmission

What the source identifies

The manufacturer title identifies ZL20 fixed-shaft transmission in split form under its loader-transmission category. The body distinguishes converter versions and basic, speed-up and speed-down ratio arrangements.

Keep the version and application explicit

This is a loader catalogue reference, not a general forklift replacement. Do not infer the exact assembly from cast or plate markings visible in a catalogue photograph. Full ratio version, engine/converter interface and installation drawing must be reconciled.

Questions before a comparable quotation

Which installed assembly is being replaced?

Provide the machine make, full model and serial identity, engine and transmission or converter nameplates, existing complete part numbers and safely accessible photographs. No dismantling or diagnostic procedure is prescribed.

Which version and interface must match?

Request the complete supplier code and current drawing, ratio or converter version, mounting and flange details, control interface and a written matching basis for that specific machine. Similar yellow or grey castings do not establish interchangeability.

What is included and how is it documented?

Separate the complete assembly from turbine, valve, pump, coupling and other subcomponents. Agree included parts, condition, current documents, warranty exclusions and the process for resolving code differences before ordering.

From this reference to a purchase request

Keep the offered product identity, quantity, application and delivery destination in one written requirement. Compare the supplier’s dated documents and exclusions alongside price, lead time, warranty and support responsibilities. The existing supplier and procurement tools below help prepare that information; opening a link does not send a message or count as a completed or effective enquiry.

Source and evidence boundary

The company-controlled product body and mapped original image were reviewed directly. The page is undated unless its source says otherwise; the review date is not a product launch date. Supplier descriptions and nominal catalogue figures are attributed reference information, not independent performance, safety, conformity, fitment or stock verification. Obtain documents for the actual offered version and resolve any difference before ordering. This page provides no installation, repair, energising or operating procedure.
