Jieou electronic component references / Angular position sensing
Supplier product referenceJieou angle-sensor reference
Use the named function to prepare a complete component-identity request; the catalogue does not supply a full SKU.
Identify the product
- Reference
- Jieou angle-sensor reference
- Handling category
- Angular position sensing
- Evidence reviewed
- 31 October 2026 · manufacturer catalogue
- Offer status
- Research reference; request a current written configuration
What the source identifies

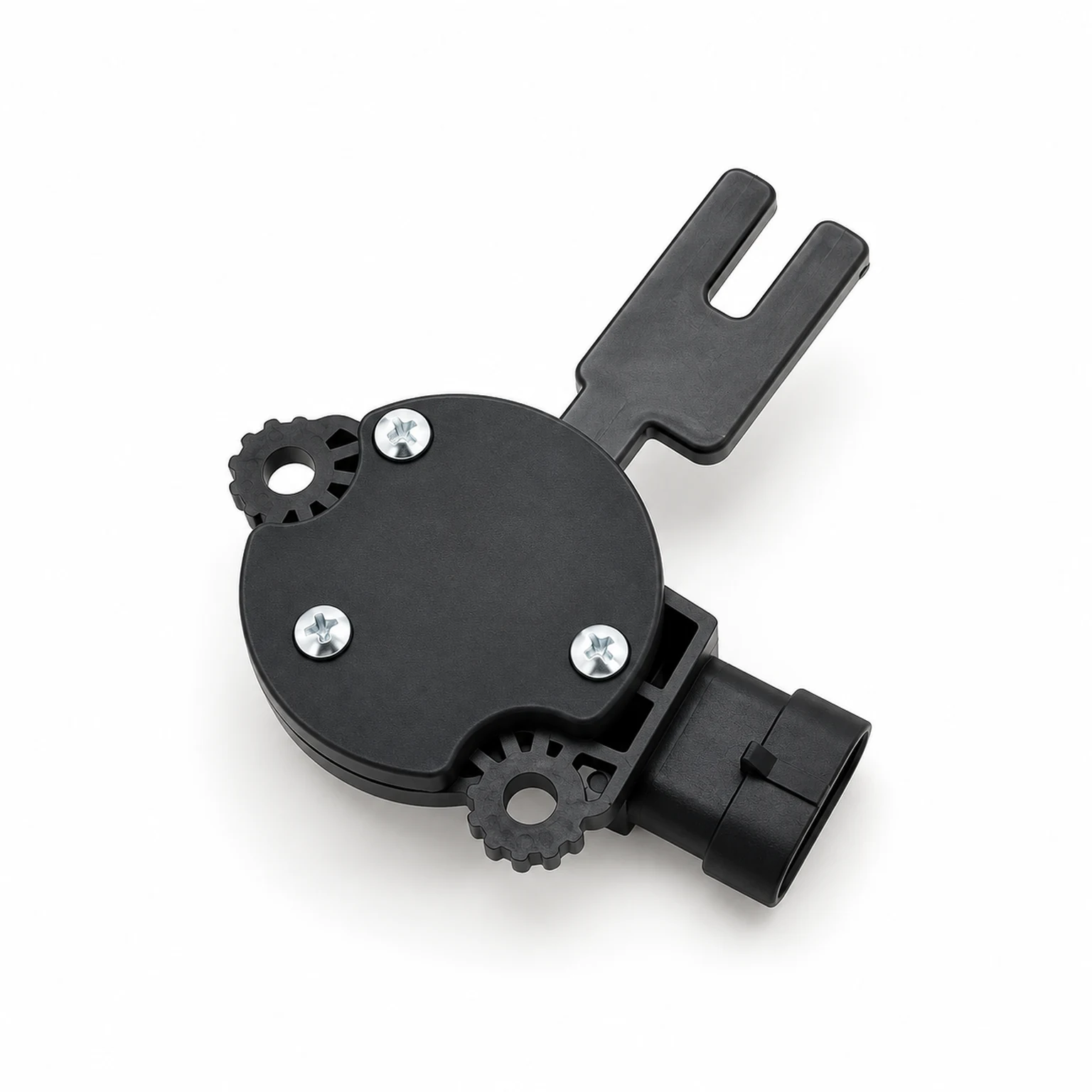

The official title identifies an angle sensor. The mapped photograph has a round body, mounting features, lever and electrical connector; it is distinct from the linear-displacement reference.
Keep the version and application explicit
The brief body does not establish an exact measuring range, signal format, supply voltage or full code. Visual similarity to another machine’s sensor cannot confirm fitment or safety-function performance.
Questions before a comparable quotation
What information should accompany the request?
Full code and revision, angular range, signal and supply specifications, lever/key geometry, mounting and connector documentation. Keep existing machine and component labels and the intended function together in one written request.
Can a similar-looking component be substituted?
A photo is insufficient. Ask the responsible supplier for a documented electrical, mechanical and functional match to the actual host equipment. Do not infer a pinout, energise a substitute or copy parameters from a family description.
What should the quotation identify?
Require the complete part number and revision, included cable or connector, dated specification and drawing, quantity, delivery scope and support responsibility. Any missing label or interface remains an unresolved requirement.
From this reference to a purchase request
Keep the offered product identity, quantity, application and delivery destination in one written requirement. Compare the supplier’s dated documents and exclusions alongside price, lead time, warranty and support responsibilities. The existing supplier and procurement tools below help prepare that information; opening a link does not send a message or count as a completed or effective enquiry.
Source and evidence boundary
The company-controlled product body and mapped original image were reviewed directly. The page is undated unless its source says otherwise; the review date is not a product launch date. Supplier descriptions and nominal catalogue figures are attributed reference information, not independent performance, safety, conformity, fitment or stock verification. Obtain documents for the actual offered version and resolve any difference before ordering. This page provides no installation, repair, energising or operating procedure.
