Jieou linear-displacement sensor reference

What the source identifies

The body names a non-contact Hall linear-displacement sensor and discusses programmable stroke, supply and analogue-output options. These describe possible versions, not one confirmed orderable configuration.

Keep the version and application explicit

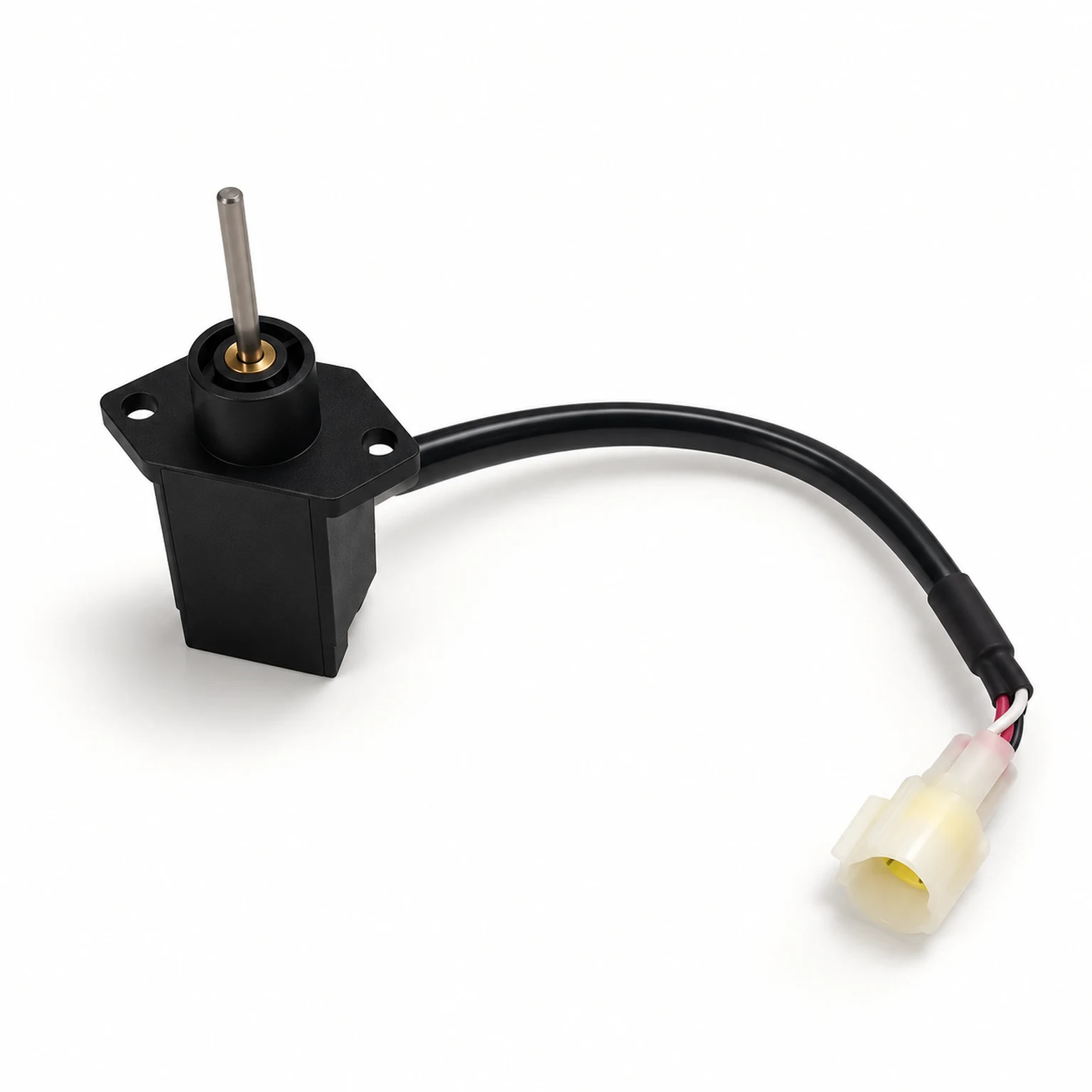

The heading is not a full part number. The source photograph shows one stem and cable form with labels; outward form does not verify internal sensing principle, stroke or a branded-machine application. No label has been recreated as identity evidence.

Questions before a comparable quotation

What information should accompany the request?

Exact part code and revision, stroke, supply/output relationship, calibration document, connector and mounting geometry. Keep existing machine and component labels and the intended function together in one written request.

Can a similar-looking component be substituted?

A photo is insufficient. Ask the responsible supplier for a documented electrical, mechanical and functional match to the actual host equipment. Do not infer a pinout, energise a substitute or copy parameters from a family description.

What should the quotation identify?

Require the complete part number and revision, included cable or connector, dated specification and drawing, quantity, delivery scope and support responsibility. Any missing label or interface remains an unresolved requirement.

From this reference to a purchase request

Keep the offered product identity, quantity, application and delivery destination in one written requirement. Compare the supplier’s dated documents and exclusions alongside price, lead time, warranty and support responsibilities. The existing supplier and procurement tools below help prepare that information; opening a link does not send a message or count as a completed or effective enquiry.

Source and evidence boundary

The company-controlled product body and mapped original image were reviewed directly. The page is undated unless its source says otherwise; the review date is not a product launch date. Supplier descriptions and nominal catalogue figures are attributed reference information, not independent performance, safety, conformity, fitment or stock verification. Obtain documents for the actual offered version and resolve any difference before ordering. This page provides no installation, repair, energising or operating procedure.

http://www.xmjieou.com/product-6291-6111-163761.html
