LPE platform electric pallet-truck reference

What the official product catalogue establishes

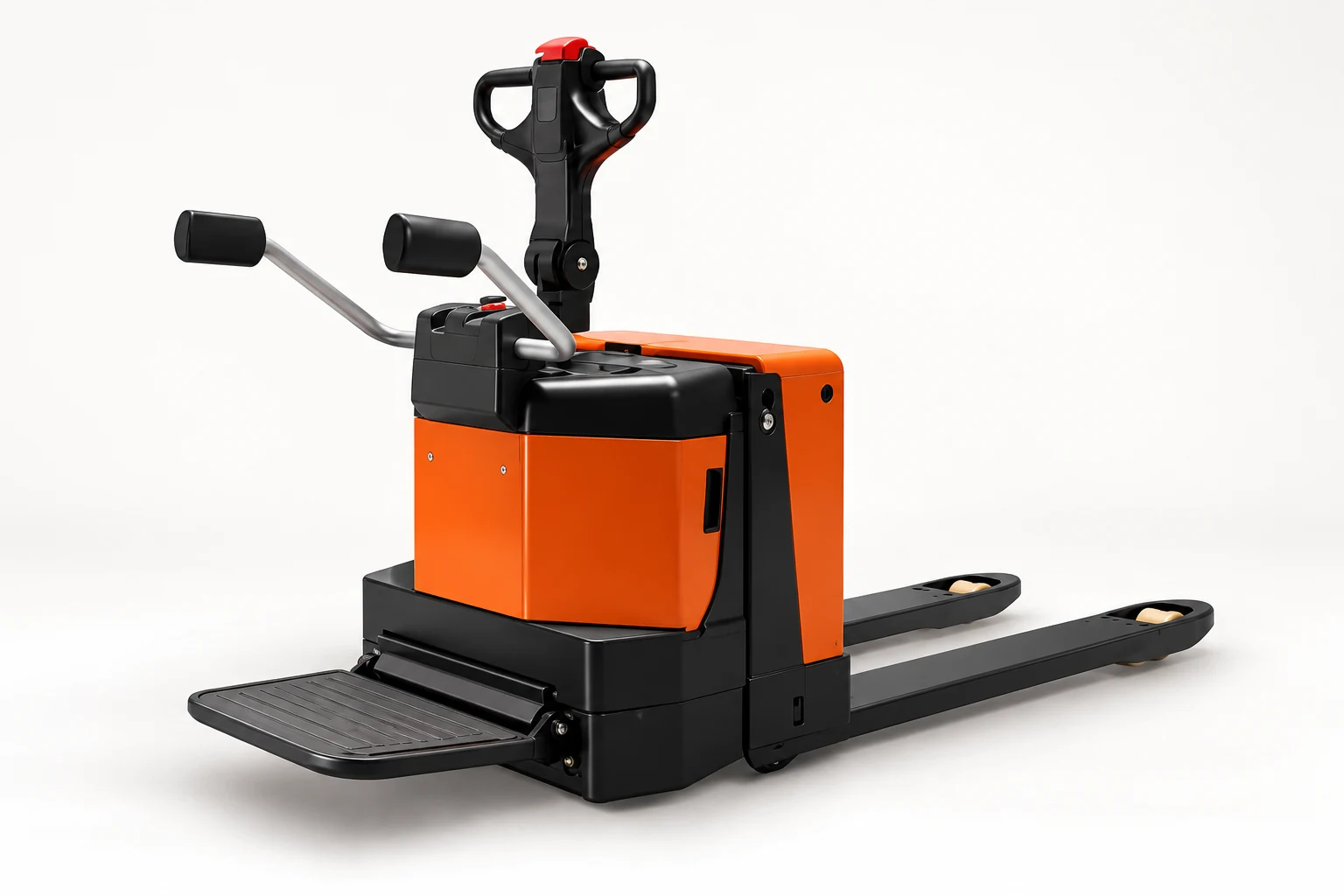

Boxiwei lists the LPE200/220/250 family under electric warehouse vehicles. The table separates LPE200* from an unstarred LPE200/220/250 group, with 2,000 kg for the starred column and 2,000/2,200/2,500 kg across the unstarred group. A 600 mm load centre is shown. The reference image depicts a platform pallet truck with a tiller and side-support arms; it is not a mast-equipped pallet stacker. One family page retains these variants without creating duplicate capacity pages. The source is the sales company's catalogue, not independent evidence of manufacturer authorization, local stock or the current equipment supplied.

Define the work before choosing a configuration

The asterisk matters. The page gives different widths, turning-radius values and fork-face dimensions for the starred and unstarred columns, and includes a BTMF production note. That wording has not been independently verified as factory or country-of-origin evidence. Also, a height row is labelled overhead-guard height even though the illustrated truck has no overhead guard. This reference therefore does not use it as a verified guard or clearance dimension. Ask for the exact complete model, generation and drawing before assessing the route. Provide pallet geometry, load, travel distance, turns, floor joints, gradients and shift pattern as inputs to the proposal.

Keep the supply package explicit

Request the actual operator-platform arrangement, side supports, controls, fork dimensions, wheels, battery and charger package. Have the quote state whether any platform or support feature is standard, optional or specific to the pictured variant. A capacity label does not resolve battery endurance, speed, manual effort, route suitability or training requirements. For a used unit, record serial identity, year, hours, battery-condition evidence and inspection scope. Keep the seller, invoice entity, warranty responsibility, replacement-parts route and delivered condition explicit. The representative image is not a condition report or proof that an offered truck has the same fitted accessories.

Questions for the proposed product

Should LPE200* and LPE200 be merged as identical?

No. The supplier separates them and publishes different dimensions. Keep the asterisk or exact variant on the requirement and compare current documents.

Does the height row establish an overhead guard?

No. Its label conflicts with the pictured platform truck; request a correct drawing and actual component description.

Can it replace a stacker for storage at height?

No such role is established here. This listing concerns pallet transport; the separate SWE reference addresses stacking equipment.

From product research to a comparable request

Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.

Sources and evidence boundary

The source is Boxiwei’s own sales catalogue, originally dated 1 July 2020. The company is a sales and service supplier; inclusion does not establish manufacturer identity or brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
