HELI Changzhou sales/service supplier profile / G2 CQD16 / CQD20
Supplier-published product familyG2 seated reach-truck catalogue reference
The local catalogue lists CQD16 and CQD20 with multiple energy and configuration options. Match the full code, battery system and mast before comparing dimensions or capacity.
Identify the enquiry scope
- Published family
- G2 seated battery reach truck
- Table model codes
- CQD16 / CQD20
- Supplier-table rated loads
- 1,600 / 2,000 kg at 600 mm load centre
- Published standard mast
- 4,600 mm, supplier table
- Energy alternatives
- Lead-acid and lithium configuration columns; exact package to confirm
Reviewed 21 October 2026. Dimensions and ratings are attributed to the supplier table, not independent testing; request current exact-model documents.
What the official product catalogue establishes

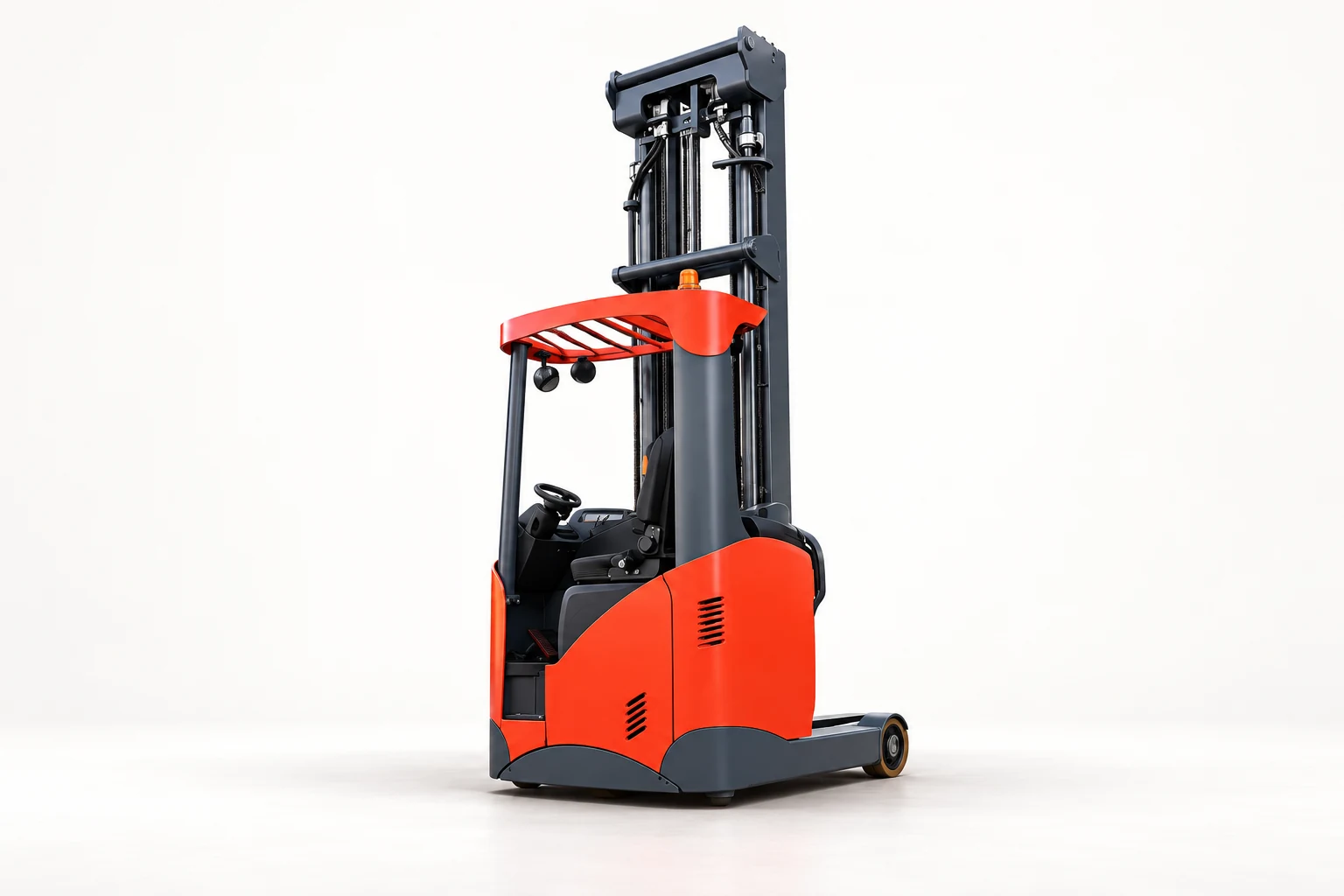

The Changzhou website publishes a G2 1.6–2 tonne seated reach-truck page rather than merely linking to a parent-brand catalogue. The table identifies CQD16 and CQD20, with rated loads of 1,600 and 2,000 kg at a 600 mm load centre and a 4,600 mm standard mast height. It also separates lead-acid and lithium power descriptions and several configuration codes. These columns remain within one product-family reference. Their existence does not identify the energy system, generation or installed options of a truck currently offered by the service point. The seated operator position and reach-truck geometry make this a distinct task from the standing CPDSR counterbalance range.
Define the work before choosing a configuration
Provide the pallet and load drawings, load centre, storage levels, rack access, floor condition, working aisles and charging constraints. Request the full model and configuration code, exact mast, fork or attachment arrangement, residual-capacity information and a current dimensioned drawing. The source table has grouped cells for configuration, battery type and width values; this reference does not assign every listed width to every variant. The published standard height cannot resolve the proposed mast's lowered height, free lift, working aisle or remaining capacity. A photograph of a tall reach mast is also not dimensional or high-level load evidence.
Keep the supply package explicit
Separate battery, charger, controls, wheels, fork functions and optional monitoring equipment in the proposal. The source describes steering modes, instrumentation, CAN communication and optional fork monitoring or height features, but it does not prove which package is installed on a quoted unit. Ask for the actual configuration records and included manuals. Safety, braking, energy-saving and maintenance benefits have not been independently tested here. Clarify the sales entity, condition, inspection scope if used, warranty, support route and replacement-parts identification. Neither brand presentation nor a product listing establishes current inventory or the local service team's capability for a specific repair or commissioning job.
Questions for the proposed product
Does CQD16 alone identify the battery system?
No. The source has different configuration and energy columns. Require the full configuration code and battery and charger specification.
Can all dimensions be copied across CQD16 and CQD20?
No. The source groups some cells and varies others. Request a current exact-model drawing rather than using one row as a universal dimension.
Does the standard mast height prove residual capacity at height?
No. Ask for the capacity information associated with the offered mast, load centre and attachments.
From product research to a comparable request
Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is HELI Changzhou’s own sales catalogue. No reliable product publication date was established; the review date is not a release date. The company is a sales and service supplier; inclusion does not establish manufacturer identity or brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
