BD electric platform transport trucks

What the official product catalogue establishes

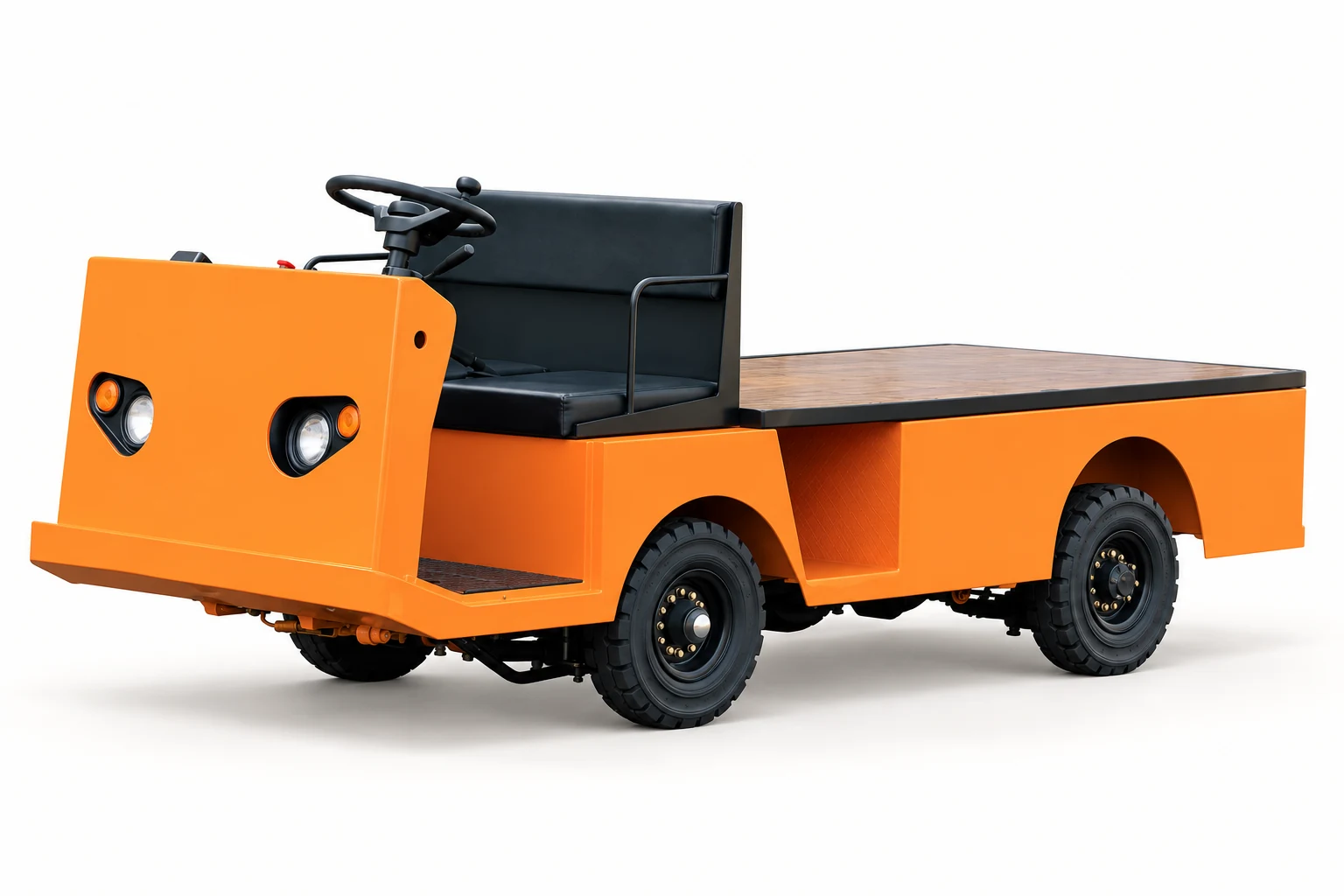

The supplier places these electric flatbed vehicles in its towing category, but the visible machine has a cargo deck rather than forklift forks. Its table describes load carried on that deck. The product prose prints BD10/BD10/20/30-C1, while the table prints three slash-separated identifiers containing BD10. Those strings are preserved as source notation, not silently normalised into assumed model names. The website has another page with the same electric-platform title and a different reference image but no specific model text. It is retained as a related unresolved reference, not counted as a separate verified product.

Define the work before choosing a configuration

The table associates payload rows of 1,000, 2,000 and 3,000 kg with turning radii of 3,700, 3,700 and 3,800 mm respectively. Overall length including the step is listed as 3,158, 3,158 and 3,498 mm; width is 1,140, 1,140 and 1,400 mm. These are supplier-table comparisons pending exact model identification, not interchangeable dimensional options. A separate maximum-traction column is expressed in newtons. It must not be converted into an approved trailer mass or combined with platform payload to invent a towing capability. Ask for a current drawing and rating basis before using any value in a route or load-handling plan.

Keep the supply package explicit

Describe cargo dimensions, total mass, centre of gravity, support points, loading method and restraint interfaces. Request usable deck dimensions and deck height, because an overall vehicle dimension is not the usable loading surface. Record route clearances, turning space, floor conditions and transfer points. If trailer use is also needed, make it a separate requirement and request specific coupling, braking and permitted-train documentation. The supplier’s statements about stability, electrical covers and component brands are not adopted here as a weather-protection rating, outdoor approval or engineering guarantee.

Questions for the proposed product

Which exact identifier will appear on the offer?

Provide both the source text and table to the supplier and ask it to reconcile the repeated BD10 notation. Request a complete current model code, series revision, payload rating and dimensional drawing. The second same-title page and its picture have not established an additional variant or alias.

Does the cargo fit the usable platform and load limits?

Supply cargo dimensions, mass, centre of gravity, support and loading arrangements. Ask for usable deck size, height, permitted load distribution and the proposed securing interfaces. Do not infer deck dimensions from the overall length or treat a pictured BD20 badge as confirmation of every payload alternative.

What belongs in the supply and support package?

Separate the carrier, battery, charger, deck configuration, documents, delivery and support scope. Confirm the legal quoting entity, condition, lead time and warranty terms. If towing is proposed, request separate documented limits; neither a newton-valued traction entry nor a cargo payload establishes a permitted trailer combination.

From product research to a comparable request

Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.

Sources and evidence boundary

The source is Nanjing Guanqing’s own sales catalogue. No reliable product publication date was established; the review date is not a release date. The company is a sales and service supplier; inclusion does not establish manufacturer identity or brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
