Wuxi Shengge supplier profile / SGCD-DG10 / DG15 / DG20
Supplier-published product familySGCD-DG semi-electric stacker family
Related 1,000, 1,500 and 2,000 kg source variants are grouped here. Match each mast-height option to its specific capacity and drawing.
Identify the enquiry scope
- Source model columns
- SGCD-DG10 / SGCD-DG15 / SGCD-DG20
- Listed loads / load centre
- 1,000 / 1,500 / 2,000 kg; 500 mm
- Listed fork length / adjustable width
- 1,070 mm / 320–680 mm
- Height boundary
- Headline 1.6–4 m; table lists options only to 3.5 m
Reviewed 22 October 2026. Dimensions and ratings are attributed to the supplier table, not independent testing; request current exact-model documents.
What the official product catalogue establishes

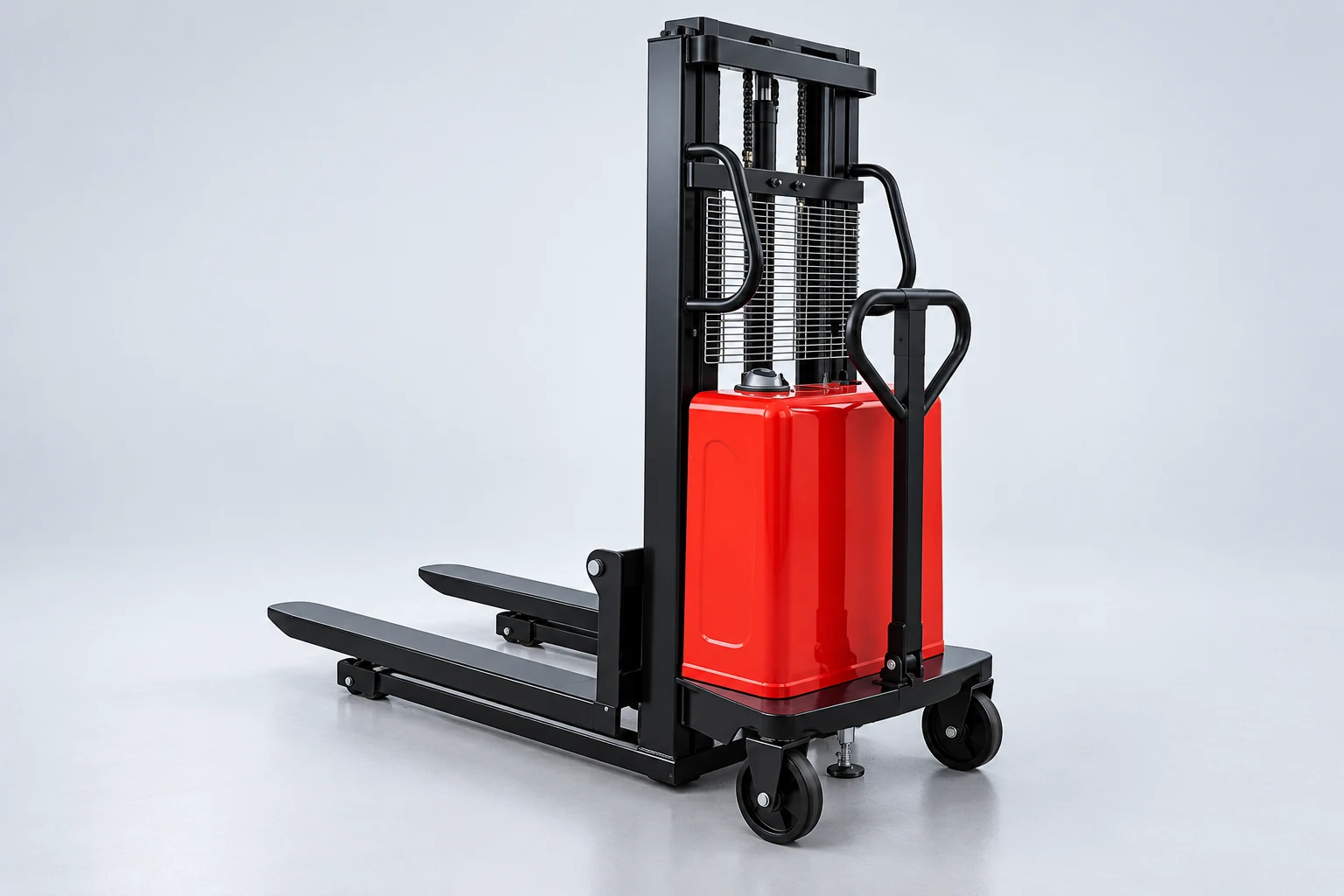

The SGCD-DG page identifies a semi-electric stacker family and groups three capacity columns under one catalogue entry. The related DG10, DG15 and DG20 variants remain together here rather than becoming duplicate product pages for every rating. The source photograph shows one mast-and-push-handle configuration; it does not establish every model in the table. This reference is distinct from a fully powered pallet truck and from a seated forklift. The semi-electric heading alone does not establish a powered travel system or a particular battery package.
Define the work before choosing a configuration
The headline advertises heights from 1.6 to 4 metres. The table instead shows merged cells containing 1,600, 2,000, 2,500, 3,000 and 3,500 mm options, with the 2,000 kg column showing 1,600 and 2,000 mm. That presentation does not support a complete capacity-by-height matrix or a confirmed 4-metre variant. Ask for the exact model suffix, mast drawing and load chart. Describe load depth, pallet entry structure, receiving height, floor and route. Support legs, forks and wheels must be matched to the actual pallet geometry rather than inferred from a family photograph.
Keep the supply package explicit
The table gives a 1,070 mm fork length, 320–680 mm adjustable fork width and 90 mm lowered fork height. Treat these as source identification data, not proof of every option currently offered. Ask which functions are powered, which require manual movement, what battery and charger are included and which wheel configuration is proposed. Keep the operator’s working space and the complete vehicle envelope in the comparison. Published height choices do not establish full capacity at every height, safe operation on a slope or suitability for a particular rack. No safety, certification or current stock claim is made here.
Questions for the proposed product
Which capacity and mast combination can the supplier document?
Request the full suffix, rated-load basis, raised and lowered mast heights, free lift if applicable and the corresponding load chart. Ask the supplier to reconcile the 4-metre headline with the table. Keep an unanswered height question open rather than creating a new verified model from the headline.
What travel, power and pallet interfaces are supplied?
Request a written description of powered functions, manual movement, battery and charger data, wheel materials and support-leg dimensions. Provide pallet photographs and a drawing. The shared family description should not conceal a materially different drive arrangement or pallet interface in the proposed equipment.
How can quotes be compared consistently?
Use the same load, height, route and daily-duty requirement for each supplier. Separate mast choice, power package, delivery, manuals, commissioning and service scope. Obtain a current drawing and parts-identification route. The clean illustration is a representative presentation and cannot substitute for those documents.
From product research to a comparable request
Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is Wuxi Shengge’s own sales catalogue. No reliable product publication date was established. Historical footer or news dates are not product release dates; the review date is not a release date. The company is a sales and service supplier; inclusion does not establish manufacturer identity or brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
