XCMG Port Machinery supplier profile / XCF1612E5
Supplier-published product familyXCF1612E5 electric heavy counterbalance forklift
A source-listed 16,000 kg electric heavy forklift at a 1,200 mm load centre. Compare the actual mast, forks, load geometry and electrical package.
Identify the enquiry scope
- Official model
- XCF1612E5 / electric heavy counterbalance
- Source nominal load / load centre
- 16,000 kg / 1,200 mm
- Source fork dimensions
- 2,440 × 200 × 100 mm
- Source machine mass / turning radius
- 25,890 kg / 4,750 mm
Reviewed 24 October 2026. Dimensions and ratings are attributed to the supplier description or table, not independent testing; request current exact-model documents.
What the official product catalogue establishes

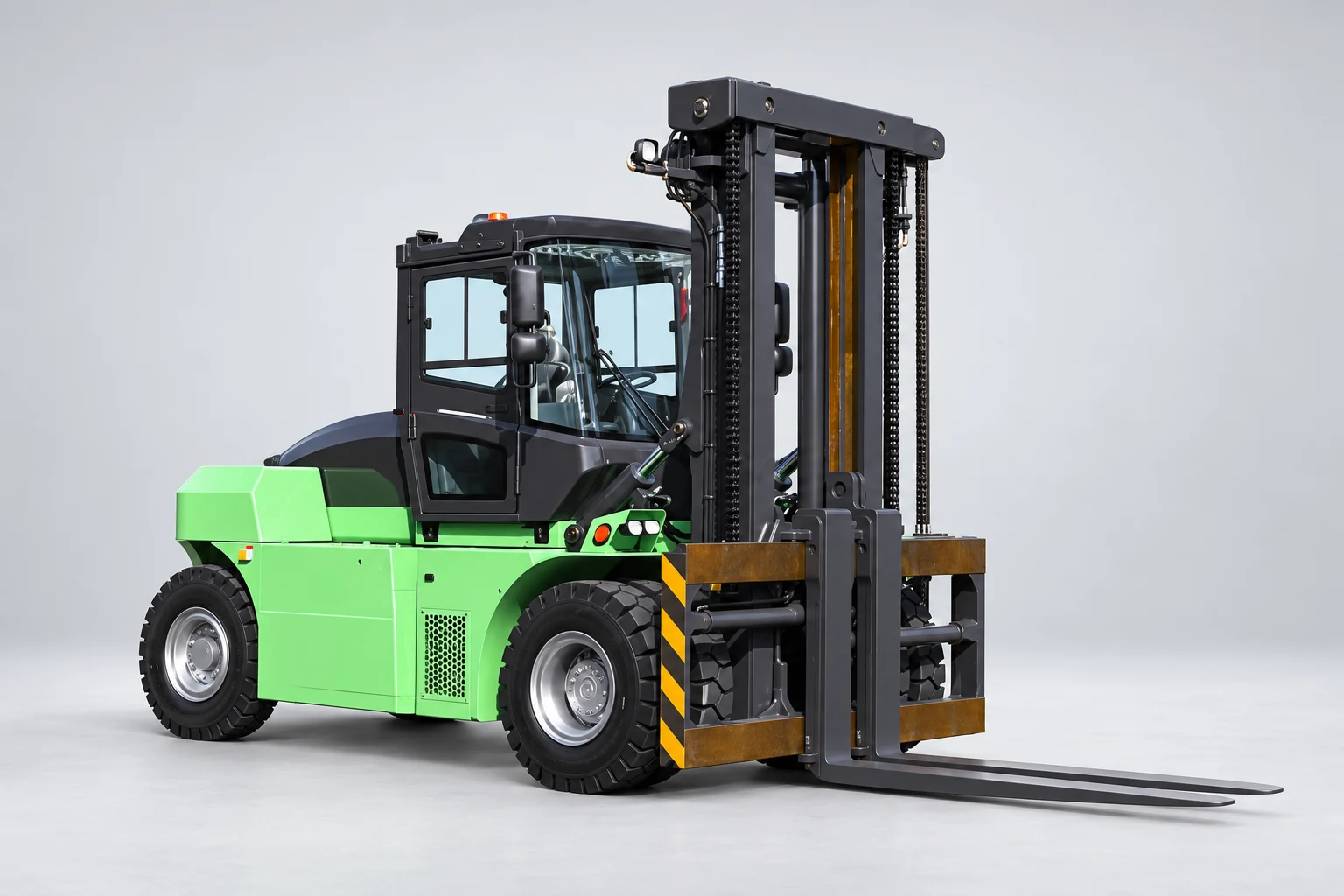

XCF1612E5 appears on XCMG’s official port-logistics solution and its dedicated heavy-counterbalance product page. The table lists a 16,000 kg rating at a 1,200 mm load centre and 2,440 mm forks. It remains distinct from the internal-combustion XCF1612K reference. The official product picture is labelled XCF1612E rather than fully documenting E5 revision details. The illustration therefore represents the visible electric heavy-truck form; a current nameplate, drawing and quotation must identify the ordered version.
Define the work before choosing a configuration
State the actual load footprint, centre of gravity, required lift and support arrangement. Heavy or long loads can differ substantially from the nominal load-centre basis. Ask for the proposed mast’s capacity documentation and complete dimensions, including fork and carriage interfaces. The source table leaves the retracted/extended mast-height field blank. No value is invented from an image or from the K model’s table. Provide the receiving height and restricted clearances so the missing dimension is resolved in the offer.
Keep the supply package explicit
The electric truck’s battery, charger, connection and control package must be specified for the actual duty and destination. Avoid borrowing a battery value or power figure from another E or E5 page. The source’s promotional energy and efficiency comparisons are not taken as measured results for a buyer’s site. Keep machine supply, energy equipment, any infrastructure, documentation, commissioning and ongoing support visible as separate responsibilities. A common nominal load does not make the electric and internal-combustion truck interchangeable.
Questions for the proposed product
What resolves the model and mast identity?
Require the complete E5 designation, applicable drawing and capacity information for the actual mast and fork package. Ask for the missing lowered and extended mast dimensions. A representative E-labelled image is not sufficient evidence of the delivered revision or operating envelope.
What load information should accompany the enquiry?
Provide load dimensions, mass, centre of gravity, support points and any special attachment. Ask for the proposed residual-capacity basis and the responsible technical assessment. Keep nominal rating, load-centre assumptions and site requirements separate in the comparison.
How is the energy and support scope recorded?
Request the exact battery and charger identity, supply and connection requirements, working assumptions, manuals and service-parts route. Record warranty, delivery condition, commissioning and support responsibilities. An online product listing is not proof of current stock, configuration approval or a guaranteed duty cycle.
From product research to a comparable request
Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is XCMG Port Machinery’s own sales catalogue. The original publication date is not stated on the reviewed product page. Image-folder and customer-review dates are not launch dates; this review date is not a release date. The company describes development and manufacture on its own website; inclusion is not an independent factory audit or proof of brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
