CQD20H reach truck

What the official reference establishes

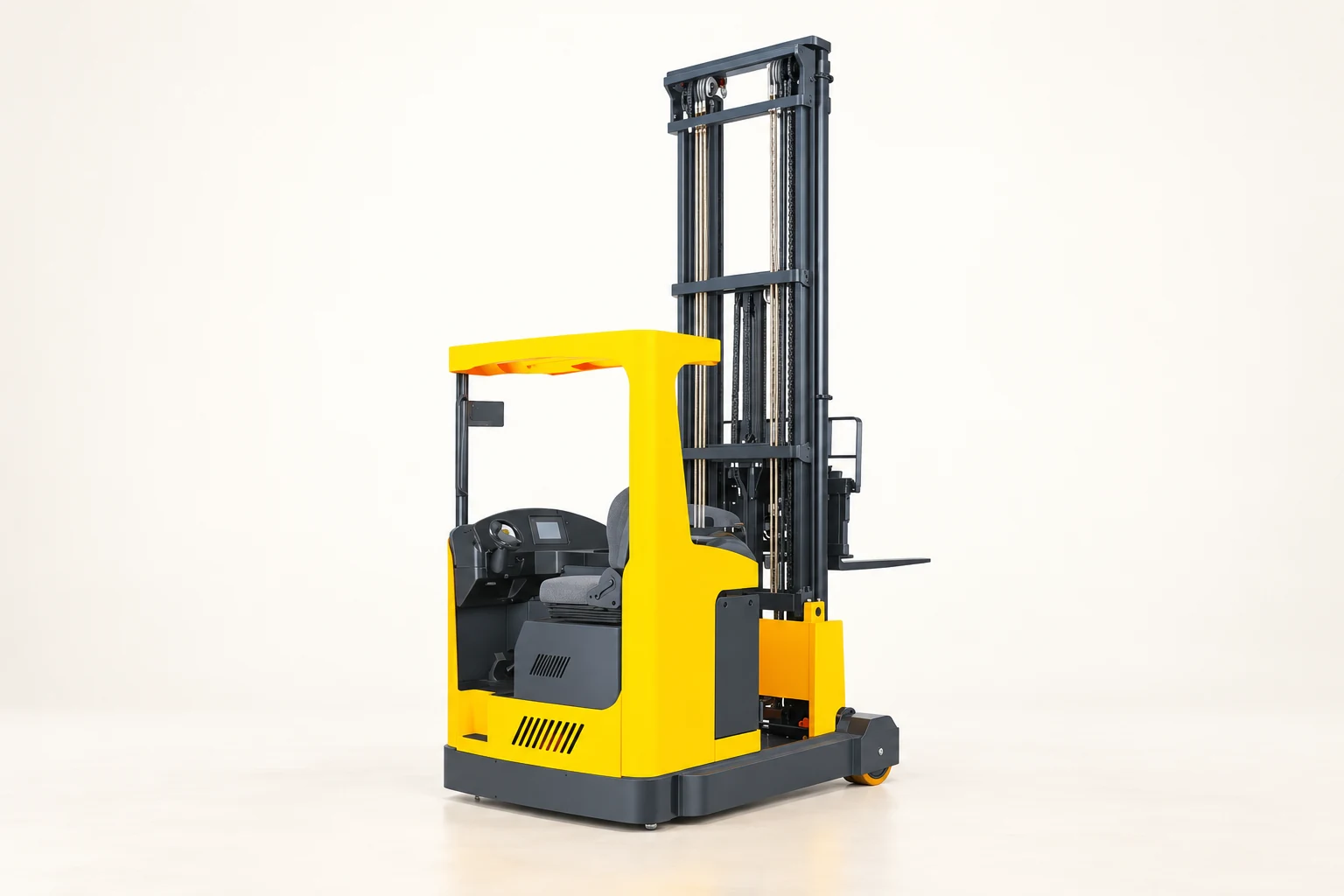

The supplier lists CQD20H in its Xilin reach-truck section. The readable introduction describes a seated operator compartment, a reach-truck chassis and mast options. Its corresponding original photograph shows a yellow cabin, a tall dark mast and the fork carriage beside the cabin. This establishes the published product reference and equipment category, rather than the configuration of a machine currently available in Yangzhou.

Define the work before choosing a configuration

Keep CQD20H separate from the nearby CQD20/20X and CQD15/CQD16 catalogue names. A shared CQD prefix does not make these aliases, and a photograph of a tall mast does not prove a particular lift height. We have not converted the model number into a load rating or adopted the source maximum-height wording as a project specification. The chosen mast and its residual capacity must be documented for the actual load and attachment.

Keep the supply package explicit

Describe the pallet footprint, entry direction, rack beam heights, load centre, lowest overhead obstruction and aisle geometry. Ask for the offered mast drawing, lowered height, required operating aisle and load chart. Request the battery and charger as identified components, with the intended charging arrangement. Where the source mentions more than one battery-removal arrangement, ask which is supplied rather than assuming both are included.

Questions for the proposed product

Which version is actually offered?

Ask for the complete model suffix, revision, manufacturer, current datasheet and configuration drawing. Reconcile the quotation, equipment label and delivery documents rather than relying only on a catalogue photograph.

Which site inputs are needed?

Send the actual pallet or picking-unit dimensions, load distribution, route and working envelope. Ask which current documents support the proposed match, and keep unanswered assumptions visible in the comparison.

What is included in the quotation?

List the truck, mast where applicable, forks, battery, charger, accessories, delivery, commissioning, documents and support separately. Confirm the legal entity issuing the quotation and the responsible service route.

From product research to a comparable request

Prepare the requirement around the actual handling or picking task. State the goods, dimensions, load distribution, aisle and overhead constraints, quantity, duty pattern and destination. Request the offered revision and current configuration documents. Keep equipment, energy system, accessories, delivery and support as separate lines so quotations can be compared on the same basis. This reference is a starting point for supplier questions, not an equipment approval.

Sources and evidence boundary

The company-labelled yz-xilin.com homepage, company introduction, relevant catalogue section, readable product introduction and matching original image were checked. The name and Yangzhou address match the existing directory record. Normal HTTP returned readable content; HTTPS has a certificate problem and no certificate check was bypassed. The lower detailed-description region embeds a404 response, so no complete parameter sheet was available there. Product pages are undated; this review date is not a launch date. Only catalogue identity, category and explicitly attributed introductory details are used. Safety, certification, performance, current stock, authorisation and suitability claims are not adopted. Ask for current manufacturer documents and the exact supplying legal entity. This is procurement preparation, not an operating, repair or inspection procedure.

http://www.yz-xilin.com/products/xilinchache/qianyishichachexilie/qianyishichachecqd20h.html
