JP CASTER JQR262 suspension twin-wheel casters

What the official reference establishes

The official JQR262 page describes a twin-wheel AGV suspension caster with two suspension elements. Its main table lists 100mm and 125mm wheel rows, each with a 30 × 2mm width entry. Published loads are 350kg for the 100mm brown-spring row and 400 or 600kg for the 125mm brown- or black-spring rows. The same full 125mm model text is reused for different springs and loads, so the code alone cannot resolve the supplied variant.

Define the work before choosing a configuration

The overview mentions a 100–150mm diameter envelope, but the readable model table only defines 100mm and 125mm rows. The table’s 125mm height is 178mm, while the load-deflection tables start at 180mm; some deflection and limit-height entries also need clarification. Ask for a reconciled drawing, spring identification, preload/load-deflection basis and current load rating. This page does not silently fill the missing 150mm row or certify suspension travel from inconsistent numbers.

Keep the supply package explicit

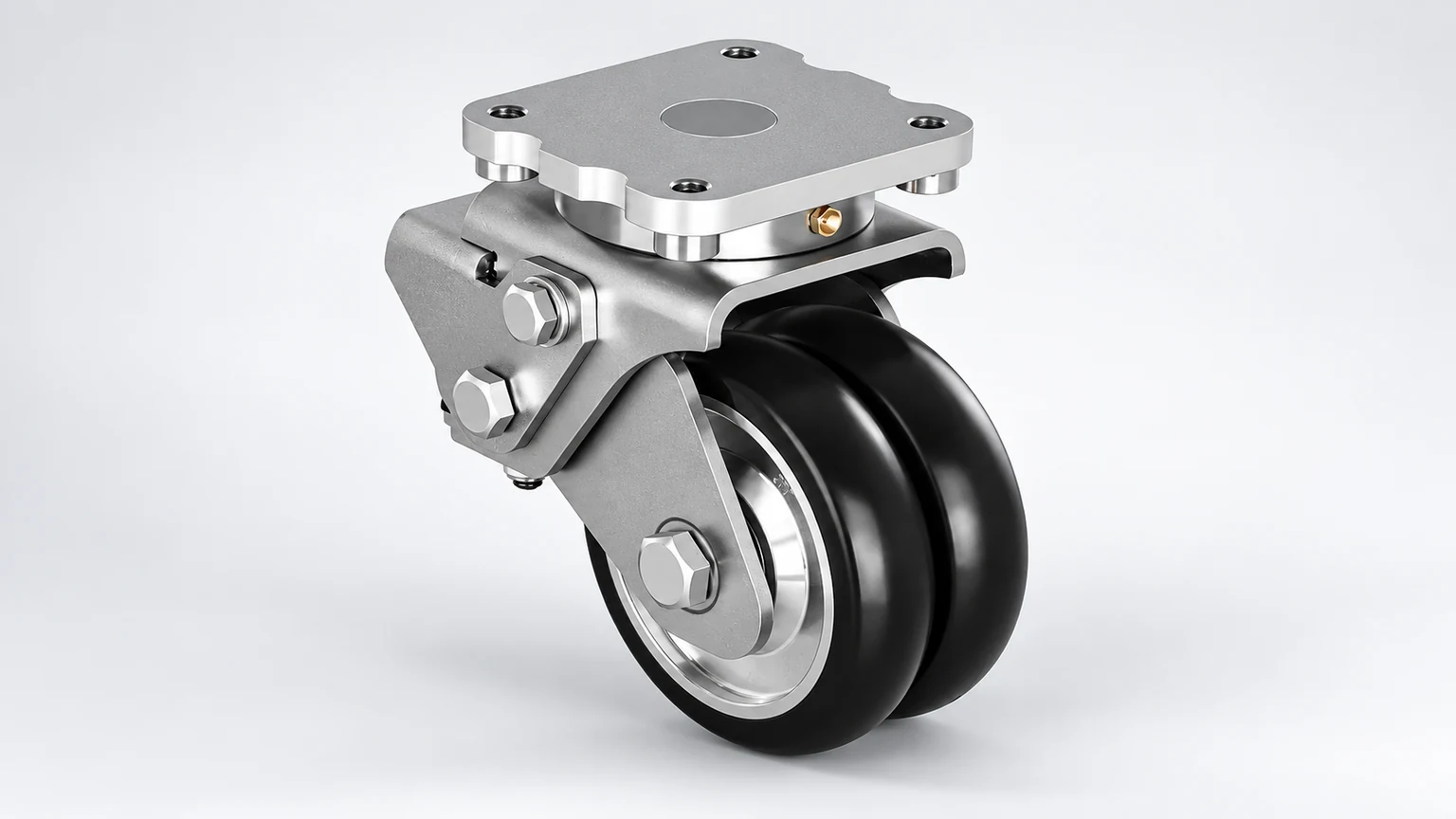

The illustration follows a paired black-wheel assembly with swivel plate and articulated support arms; hidden spring construction is not invented from the exterior. Confirm mounting height under the relevant condition, plate and hole pattern, rotational envelope, spring package, tread, bearing and included fasteners. A published single-caster load is not a complete robot payload rating, proof of fatigue life or validation of obstacle crossing on the buyer’s floor.

Questions for the proposed product

Which full code and assembly are being offered?

State the exact diameter, width, mounting, material, bearings, mechanism and included components. Preserve every suffix and obtain the current assembly drawing.

What establishes the actual duty and fit?

Provide the equipment identity, load distribution, route, floor, interfaces and envelope. Ask the supplier to explain dynamic-load and environmental assumptions. Multiplying catalogue caster ratings does not establish equipment payload.

What is included in the quotation and support route?

Identify the legal supplier, quantity, condition, drawing revision, documents, samples where agreed, delivery and warranty terms. Stock, certification, fitment and application performance are not established by this reference.

From product research to a comparable request

Prepare one written component requirement around equipment identity, full caster code, load conditions, mounting dimensions, floor and travel route. Compare tread, bearings, swivel or fixed layout, springs, brake or leveling interfaces, drawing revision and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The official About page identifies Jujiang Intelligent Technology (Huzhou) Co., Ltd. as the operator of JP CASTER and publishes the southwest gate of No.2688 Nianfeng West Road, Nanxun District, Huzhou, Zhejiang, matching the existing supplier profile. The selected product bodies, parameter tables and labelled images were read directly. This is supplier-published information, not an independent factory audit, load test, material analysis or certification. Undated pages and upload-folder dates do not establish a product launch date. No stock, authorization, verified compliance, service life, fitment or application safety is claimed. Ask for the current exact-code drawing and written supply package. No installation, adjustment, electrical, brake-service or operating procedures are provided.
