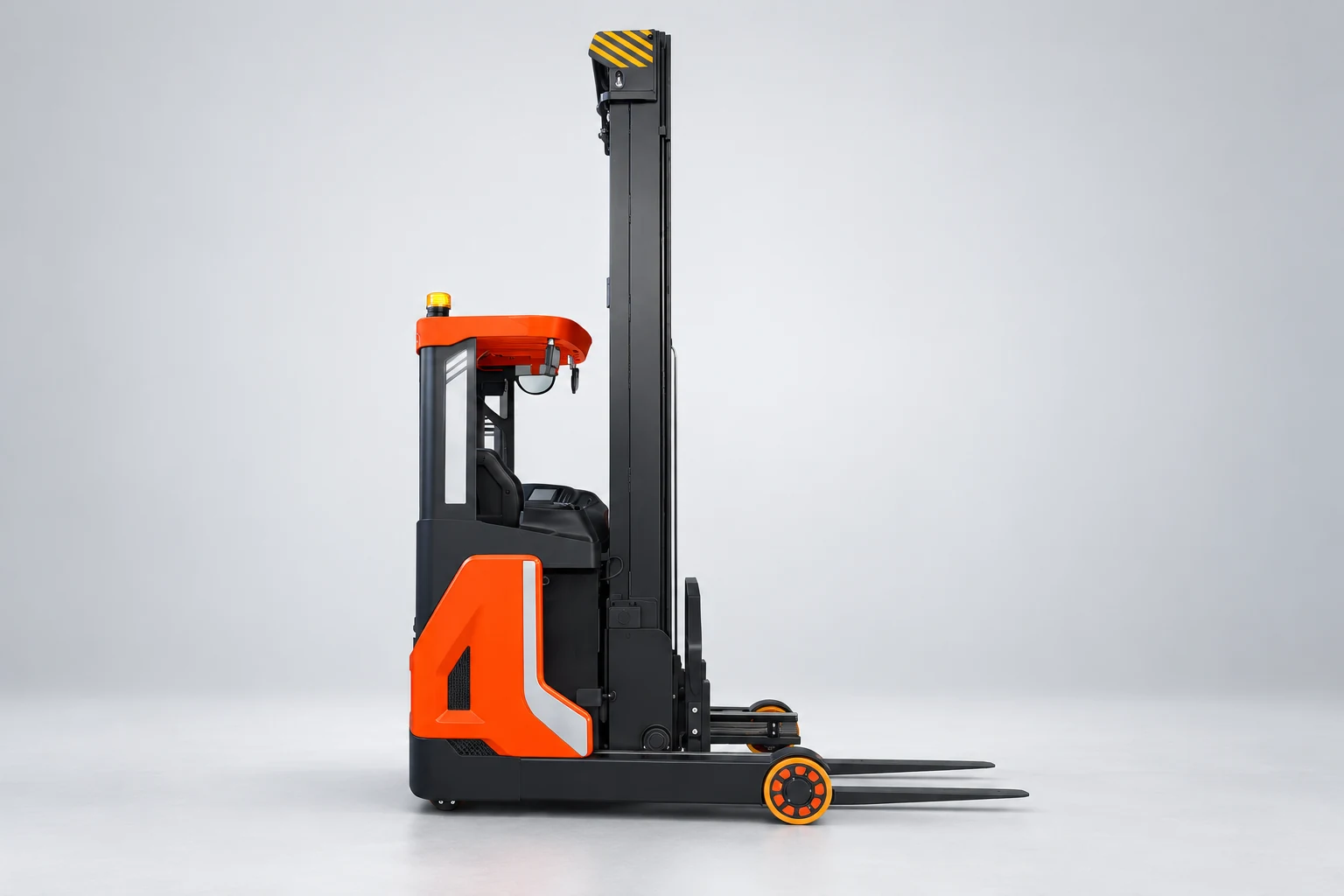

Noblelift RT16/20Pro seated reach trucks

What the official reference establishes

The official Pro table lists RT16Pro and RT20Pro with nominal loads of 1.6 and 2.0 tonnes at a 600mm load centre. It gives reach distances of 525 and 595mm, and a 1270mm body width. These catalogue entries support comparison; they do not establish residual capacity at an unspecified rack level.

Define the work before choosing a configuration

The table gives 2780 and 2900mm right-angle stacking aisle values for an 800 × 1200mm pallet with 1200mm along the forks, and turning radii of 1650 and 1750mm. Provide rack geometry, pallet projection, cross-aisles, floor, overhead restrictions and proposed mast before asking the manufacturer to validate the layout. The listed 2200mm overhead-guard height is not automatically the collapsed mast height.

Keep the supply package explicit

Battery entries are 48V/420Ah with 48V/560Ah in parentheses for RT16Pro, and 48V/560Ah for RT20Pro. Obtain the exact battery/charger package and current drawing. One feature image filename on the Pro body references RT16-20B, so feature imagery is not used to claim that B and Pro assemblies are identical; the product’s own main gallery is the illustration reference. Control and braking descriptions are not independently tested safety guarantees.

Questions for the proposed product

Which complete model and configuration are offered?

State every suffix, mast or towing specification, load basis, forks or coupling, battery, charger, options and drawing revision. Identify the contracting entity and the exact items included.

What evidence answers the proposed application?

Provide the duty, load, pallet or trailer, route, floor, storage and environmental requirements. Request current model-specific drawings and capacity or towing information with explicit assumptions.

What remains outside this catalogue reference?

Confirm current availability, lead time, documents for the destination, commissioning, warranty and support responsibility. A published model or illustration does not prove stock, certification, authorization, application safety or a confirmed replacement.

From product research to a comparable request

Prepare one written equipment requirement around the load, pallet or trailer, working height, route, floor and duty cycle. Compare the exact model, mast or towing configuration, battery, charger, drawings, documents and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The official About and contact pages identify Noblelift Intelligent Equipment Co., Ltd. in Changxing, Zhejiang, and publish No.528 Changzhou Road, Taihu Subdistrict, matching this supplier record. The homepage and contact text use slightly different Chinese characters for the road name; the contracting entity should confirm its current address. The selected product bodies, specification tables and corresponding main-gallery images were read directly. Supplier-published specifications are not an independent capacity, braking, safety or certification test. Undated bodies and image-folder dates do not establish launch dates. Confirm the exact configuration, current drawing, application assessment and supply package. No stock, authorization, certified compliance, fitment or operating safety guarantee is claimed. No installation, repair, battery service, control adjustment or operating procedures are provided.
