HELI CBD20 460 standing pallet truck

What the official reference establishes

The supplier’s G-series standing pallet-truck detail lists model CBD20, configuration 460, electric drive and standing operation. Its table gives a 2000kg nominal load at a 600mm load centre, a 1460mm wheelbase, a 790mm body width and an 85mm lowered-fork-height entry. The stated 854kg service weight includes the battery; it is not a battery weight or a load rating.

Define the work before choosing a configuration

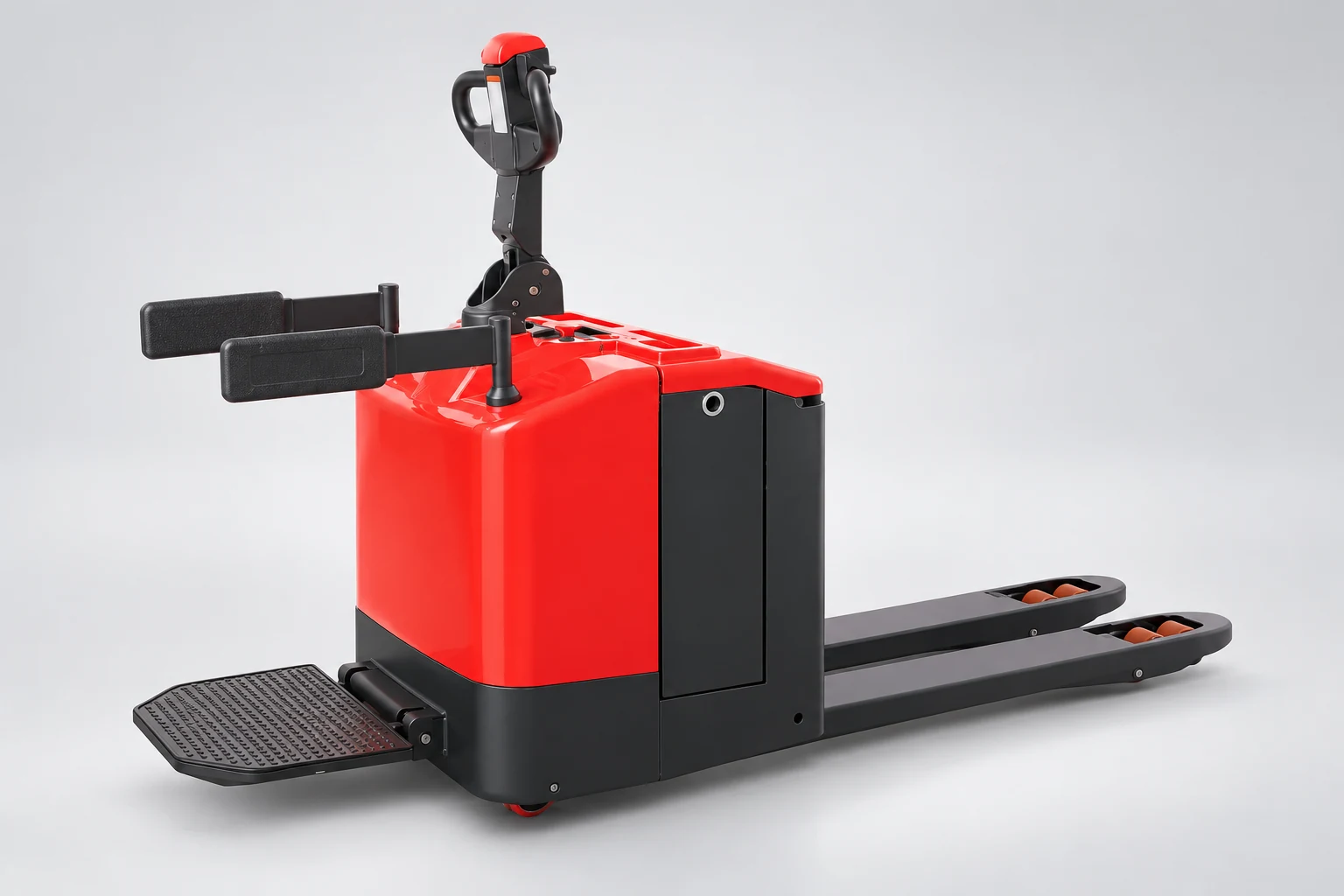

Provide the pallet entry openings, deck construction, fork length and spacing, travelling route, floor condition, slopes, shift pattern and loading-dock interface. The listed body width is not a turning radius, aisle-width requirement or overall fork envelope. The source shows a tiller, rider platform and protective side arms; confirm the exact supplied arrangements and site requirements in the current drawing and quotation.

Keep the supply package explicit

Do not merge all CBD20 references into this product: the configuration number, operator arrangement and battery specification matter. This is a low-lift pallet-transport reference, not a high-lift stacker. The current battery capacity, charger, route performance and options are not fully defined by the short table. Ask for the complete specification and supply scope, including documents, delivery, commissioning, warranty and the legal entity responsible for service.

Questions for the proposed product

Which exact configuration is being offered?

Keep the complete model, configuration code, mast, forks or attachment, battery, charger and operator arrangement in the written proposal. Ask for the current datasheet, dimensional drawing and all assumptions.

What proves the load and site match?

Provide the actual load, pallet, load centre, required lift, rack geometry, route and floor conditions. Require the proposed mast/attachment load chart and a documented application review; catalogue headings do not guarantee capacity at height.

Who supplies and supports the truck?

Confirm the contracting and invoicing entity, delivery, commissioning, service location, warranty and document scope. A shared company catalogue does not prove local branch stock, independent authorization or guaranteed response times.

From product research to a comparable request

Prepare one written equipment requirement around the actual load, pallet, load centre, lift, aisle, route, floor and duty cycle. Compare complete model/configuration codes, the proposed mast load chart, drawings, battery, charger, documents and support responsibilities. Keep unresolved alternatives visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The company-controlled About and contact bodies identify Quzhou Minglong Machinery and a Lanxi contact at Wanggaoling on National Highway 330. The company product catalogue directly lists the four selected families and their model/configuration tables. This is supplier-offering evidence, not an independent verification of manufacturer authorization, exclusivity, local branch stock or factory identity. Some other catalogue routes returned server errors; these are excluded or recorded as access gaps. Historical manufacturer statistics in the About text are not treated as current facts. Confirm the quoting, invoicing, delivery and service entity. No guaranteed performance, safety, certification, fitment, repair or operating procedure is supplied here.
