Zhejiang Haimei supplier profile / BL5
Supplier catalogue product referenceHaimei BL5 heavy manual hydraulic pallet truck
A heavy manual pallet-truck reference. Use the dated dimensional table to frame questions, then obtain the current offered configuration.
Identify the enquiry scope
- Source model / role
- BL5; manual low-lift pallet transport
- Listed nominal load
- 5000 kg; supplier claim, application review required
- Dated configuration pairs
- 550 mm width /1150 mm fork;685 mm /1220 mm
- Document and height boundary
- Version 06/2021;85–195 mm fork height; current specification required

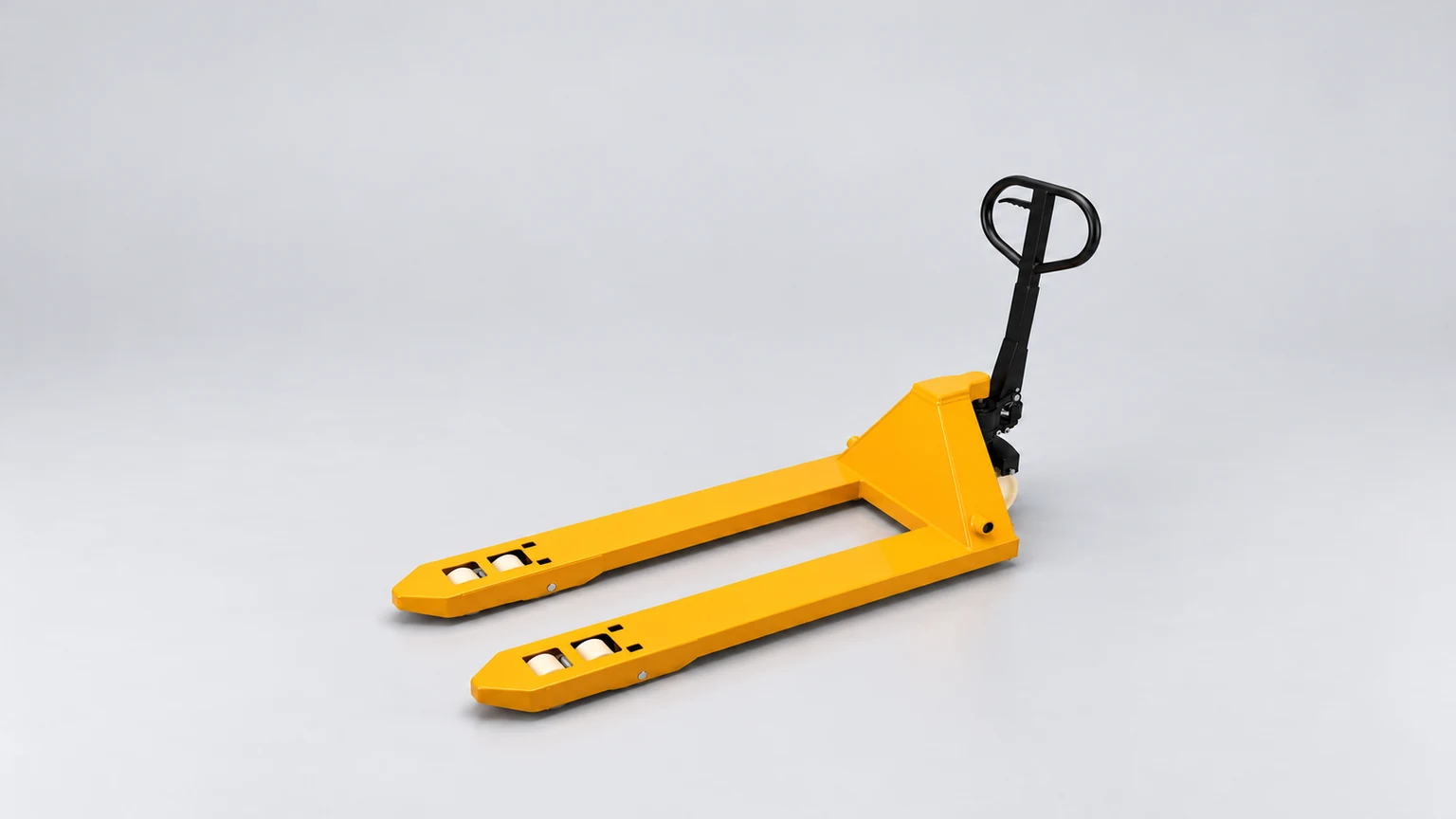

Reviewed 28 October 2026. Source dating: Official BL5 catalogue and three-page PDF read; table version 06/2021. Current website reviewed 28 October 2026; no new-release claim.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
Haimei’s manual pallet-truck catalogue lists BL5 with a nominal 5000 kg load. The linked three-page BL5 document identifies manual drive and carries a technical-table version of June 2021. Its two dimensional columns pair 550 mm overall width with 1150 mm fork length, and 685 mm width with 1220 mm fork length. Both columns list 85 mm minimum and 195 mm maximum fork height. This is dated supplier information, not a current quotation.
Define the work before choosing a configuration
The same table lists load-centre entries of 475 and 510 mm for the two configurations. Preserve the column pairing rather than mixing the narrower body, longer fork and another load-centre value into an invented specification. Prepare the pallet openings, load dimensions and actual mass, travel distance, floor conditions and required manoeuvring space for technical review. BL5 remains distinct from the separately listed QBL5 reinforced reference.
Keep the supply package explicit
The brochure also presents slow-lowering, strength, testing and certification claims. Those are not independently verified here and are not adopted as guarantees of safe transport, life or approval. A 5000 kg catalogue entry does not establish that a person can move a particular load on a given route or that the floor and pallet are suitable. Ask for current limits, the applicable drawing and manual, quotation scope and contractual responsibility. No pulling, lifting or hydraulic-adjustment procedure is supplied.
Questions for the proposed product
Which exact product and configuration is quoted?
Keep the full supplier model, load variant and handling form. Request the current datasheet and drawing tied to the offer, including dimensions, forks or platform, mast where applicable, wheels and included options.
What supports the intended work?
Provide the actual load and pallet or platform footprint, required heights, route and floor conditions. Ask the responsible supplier to confirm current capacity and permitted-use documentation for that configuration.
What remains to be documented?
Confirm current availability, delivery, warranty, contracting entity and technical acceptance documents. For powered equipment, also obtain the matched battery, charger and electrical details. A catalogue reference or image does not establish inventory, certification, authorization or fit.
From product research to a comparable request
Prepare one written handling requirement around the actual load, pallet or drum identity, required heights, aisle and floor limits, energy source and documentation. Compare the complete offered configuration and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The current company-controlled About page identifies Zhejiang Haimei Machinery Co., Ltd. and publishes Gufang Village, Bailongqiao Town, Wucheng District, Jinhua, Zhejiang. The website and product materials use HEAMI branding. Model-specific catalogue modules and their original images were read in a normal browser. Only the BL5 technical PDF was retrieved and read; its table is version06/2021. HK5, HC and LHT technical downloads returned HTTP429; unread dimensions, electrical and performance data are not adopted. Company-wide patent, certification, test, safety and capacity claims have not been independently audited. Confirm the contracting entity, current complete specification and application documentation. Independent presentations explain catalogue form, not stock, test results or a guaranteed supplied assembly.
