Supplier product reference · reviewed 19 October 2026
A separately documented NW-S21 reference, using its linked product sheet while excluding the unrelated SF-family web table.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
The NW-S21 webpage names a 36W rectangular work lamp but contains an unrelated specification table for NW-SF12, NW-SF16 and NW-SF30. Its own PDF download identifies NW-S21 explicitly, shows the same four-screw rectangular front and deep cooling housing, and provides a separate specification. This supports a distinct S21 reference rather than an automatic alias to the SF family.

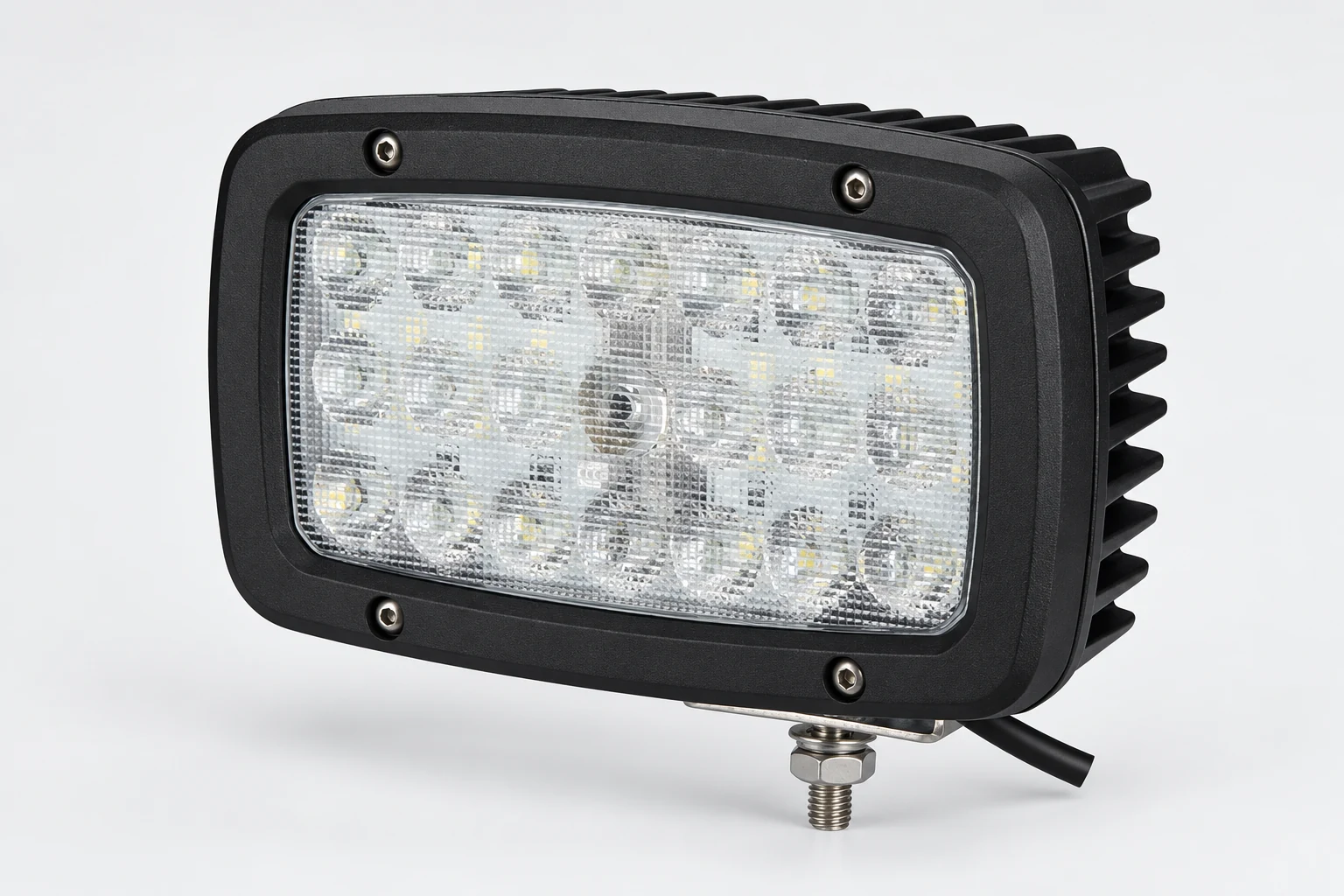

The linked sheet lists 21 emitters,36W effective power,10–30V input and a 160 ×111 ×75mm envelope. Those entries are retained as supplier-published data for the sheet version. The webpage’s SF-family dimensions, lower wattages and 9–32V supply range have not been imported. The illustration follows the S21 supplier photograph and does not prove dimensions, a measured beam pattern or the contents of a quoted mounting kit.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Name NW-S21 in the request and ask for a dated sheet and matching drawing. Include the linked PDF and identify the unrelated SF table on the webpage. The sheet has no clearly established issue date, so current production and revision must still be confirmed.
Request the bracket or stud scope, mounting centres, cable exit, connector and documented accessory supply. The sheet’s external envelope is not a vehicle fitting template. The product name and voltage entry do not establish direct connection to a forklift traction battery.
The sheet lists 4320lm, an 80-degree flood beam and IP69K. The webpage also uses IP68 in its introduction. Ask which protection statement and supporting report apply to the offered revision. No photometric, enclosure or approval test has been independently verified here.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
Model identity is supported by the official product-specific PDF and matching source photograph. This resolves the previous identity hold, while the web-table mismatch and IP wording difference remain disclosed. The undated sheet is not proof of current stock, certified use, measured output or vehicle compatibility.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/36w-flood-led-working-lamp.html
https://www.novavehicle.com/upload/6649/36w-flood-led-working-lamp_534803.pdf
Source description and available specifications reviewed on 19 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
