Supplier product reference · reviewed 19 October 2026
A 140mm round position, indicator and stop reference; the source's IP65/IP67 discrepancy and dimensional wording need clarification.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.

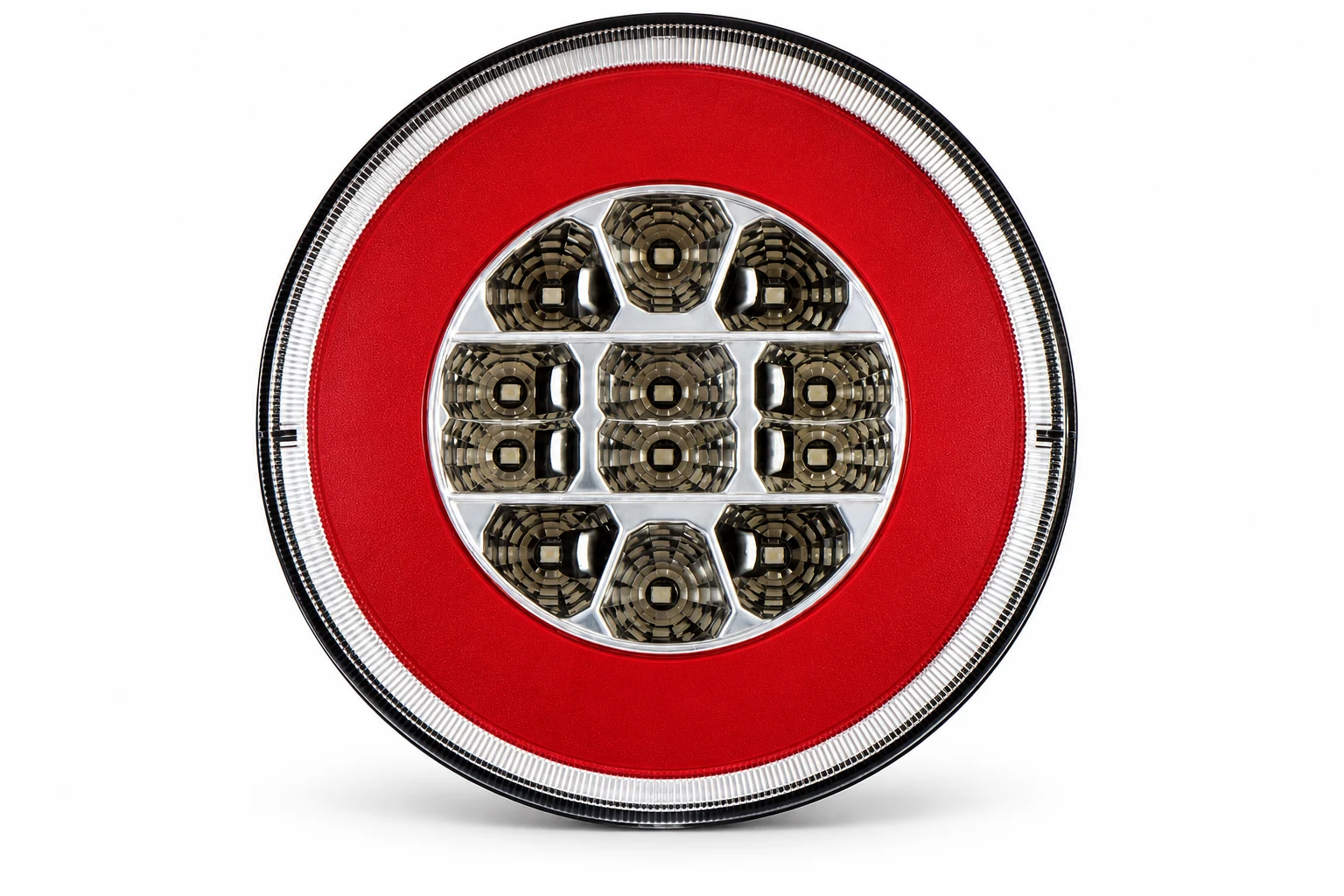

NS-TL002 is presented as a Glo-Trac rear lamp with a red annular field and a central metallic optical cluster. The official description lists position, direction-indicator and stop functions and refers to 29 LED chips. The chip count is not treated as a count of visible optical cups, nor does the lens presentation establish how each function is driven or which colour version is supplied.
The source states IP65 in its body and IP67 in its table. It also pairs a 140mm metric diameter with an inconsistent inch expression. The metric table is retained as a supplier entry, with neither protection rating nor the competing inch wording silently selected as verified. The purchasing question is which documented revision and drawing applies to the offered lamp.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Ask for a current TL002 label, function schedule and photograph. Confirm the position, stop and indicator arrangement and the supplied unit quantity. The prepared image preserves the visible lens family but does not demonstrate channel operation, luminous output or a package count. Keep the reference distinct from TL003, whose source emphasises a reversing function despite a similar red-ring appearance.
Request the complete envelope, bracket specification, fastening points, lead exit and connector identification. Ask the supplier to resolve the incompatible metric/inch wording in its body and identify the controlling drawing revision. A 140mm diameter alone does not establish clearance, bracket inclusion or replacement suitability. Retain the vehicle's existing lamp record and documented accessory circuit alongside the request.
Request the exact environmental test conditions and regulatory documents for the version being quoted, with identification linking them to the lamp. The source's IP65/IP67, E-mark, CE and EMC descriptions are not independently validated here. Neither a clear illustration nor a familiar model prefix proves ingress protection, legal use in a destination or a tested safety benefit.
TL002 and TL003 have similar overall ring-and-centre presentations, but their published functions and mounting descriptions differ. TL006 also has a 140mm diameter while using another optical arrangement. Keep the function list, reference, connector record and fastening drawing together; request explicit supplier evidence before accepting one as a replacement for another.
Official evidence identifies TL002 and the published role and dimension entries. Its protection-rating discrepancy, inch conversion, bracket supply, channel arrangement, certification and application suitability remain unresolved or unverified. No interchangeability, guaranteed output or stock claim is provided.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/glo-trac-led-hamburg-tail-light.html
Product body and specification table reviewed on 19 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
