Supplier product reference · reviewed 19 October 2026
A wedge-shaped scene light with a 153.8 mm drawing length and separately described supply and colour options; confirm the exact offered version.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.

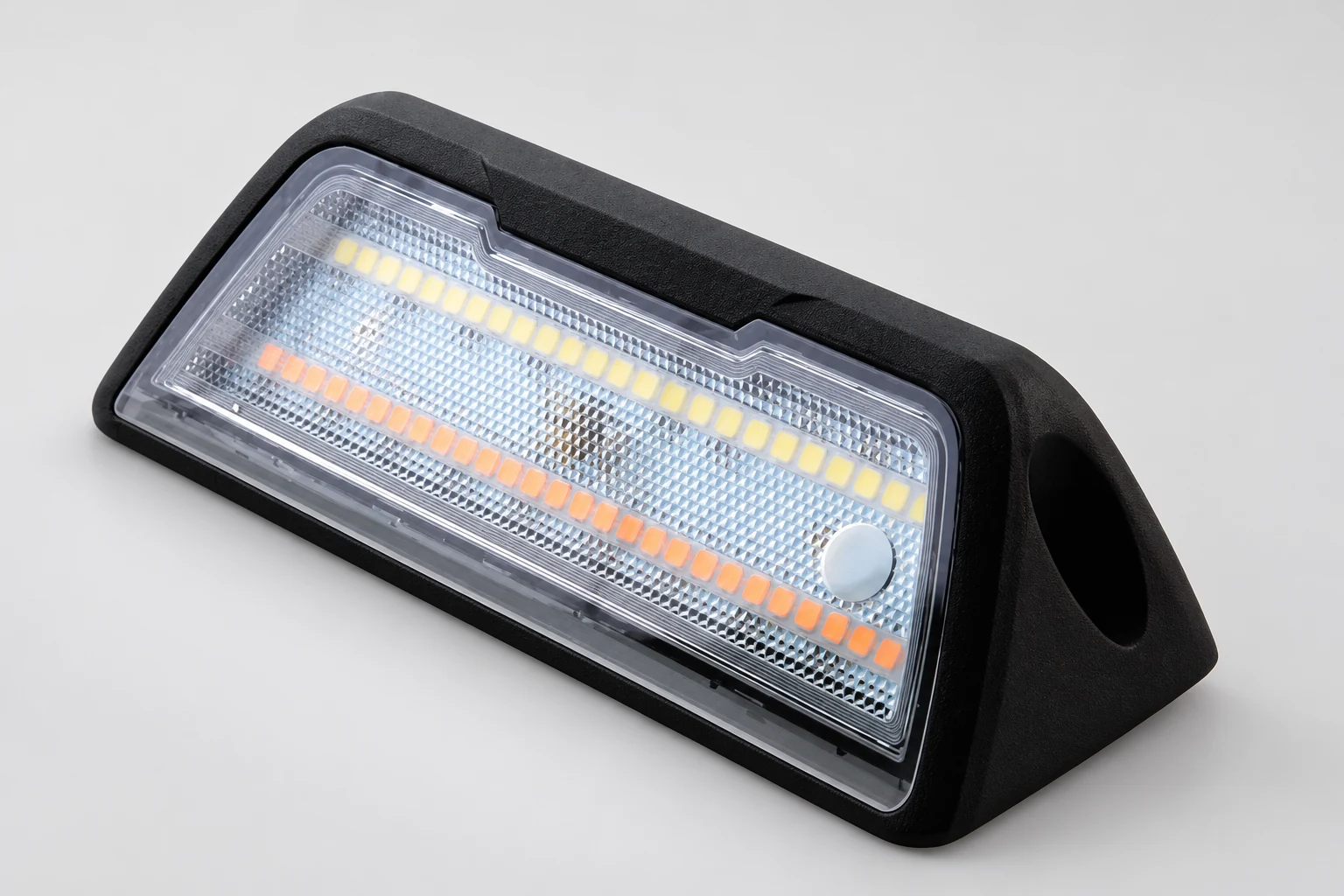

NA-L51 is a separately labelled scene light in the official catalogue. Its wedge-shaped black housing and broad textured lens differ from a flat warning lighthead or a narrow interior diffuser. The reviewed drawing gives a 153.8 mm body length and side-view annotations of 48.4 mm and 49.8 mm. Those values are retained as drawing annotations, rather than extended to an unpictured mounting package or interpreted as complete installed clearance.
The source describes 51 × 1 W LEDs and 1080 lm, together with 12 V or 10–30 V supply wording. These are supplier statements, not measured consumption or output from a tested sample. The wording does not settle whether the quotation is for a dedicated 12 V version or a wider-input assembly. Ask for a single current electrical specification tied to the exact reference before comparing prices or accessory-circuit requirements.
The panel presents single-, dual- and triple-colour options, a 45-degree scene-light description and a 120-degree flood claim. It does not provide a photometric report or a numeric enclosure-rating table for this item. The pictured white and amber presentations do not establish that every unit changes colour, supplies every mode or produces a verified installed lighting pattern. Adjacent auxiliary-light ratings are not assigned to NA-L51.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request a complete ordering code, current electrical sheet and labelled photograph for the selected configuration. Clarify the dedicated 12 V versus 10–30 V wording, actual consumption and available control modes. Specify the required colour arrangement and operating purpose. The source description does not establish that all voltage and colour combinations exist or are currently in stock.
Ask for a complete drawing showing the fixing positions, cable exit, body orientation and clearance around the wedge. Keep the 153.8, 48.4 and 49.8 mm annotations attached to their original views until a supplier drawing defines the installed assembly. The 45-degree description is not an installation instruction, a guaranteed aiming angle on a particular machine or evidence of an approved mounting method.
Obtain a photometric record identifying the chosen version, supply, measurement conditions and relevant output distribution. The 1080 lm and 120-degree wording remains attributed to the supplier; neither proves usable illumination at a particular distance or on a particular work area. Ask for environmental and regulatory documents applicable to the offered unit. No enclosure grade, forklift fit or safety outcome is inferred from the shared catalogue page.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
The official catalogue supports this printed reference, pictured body and attributed entries. Publication date, current inventory, authorization, tested output, certification scope and machine fit are not independently verified. Obtain current documentation for the exact offered configuration. Missing specifications are not copied from neighbouring products.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
Official PDF catalogue page 26 (printed 49–50) reviewed on 19 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
