Supplier product reference · reviewed 20 October 2026
1004 mm PDF-catalogue strip-light reference with source-specific ratings, cover and lead options, and purchasing questions for the current offered version.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
NSLP100 is the longer PDF reference at 1004 mm overall body length. The supplier PDF identifies this code in its own table. The dimension is copied from the labelled row rather than calculated from the numeric suffix. End treatment, cable clearance and clip positions still need a complete drawing for the configuration being purchased.
The PDF row attributes maximum 12 W and 1004 × 20 × 10 mm; the webpage table gives maximum 6 W and 1000 × 17 × 7 mm. Both list 1200 lm. Equal listed lumen figures are not evidence that either rating is independently measured or that the electrical revisions are identical.
The PDF family is shown with clear and milky covers and different channel finishes. Treat these as configuration choices, not a promise that every combination is supplied under the same code. The webpage also describes optional sensing and connector arrangements, but a family option does not establish a PIR sensor, switch or connector on this particular assembly. Ask for those items to be identified in the proposal.
Use this page to prepare a precise sourcing brief: full reference, selected cover and colour temperature, lead length and termination, body drawing, mounting components, quantity and destination. The supplier profile and the existing NSLP overview remain linked for company and family context. General vehicle-use wording does not establish fit to a particular forklift, cab opening or accessory circuit.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Specify whether the requirement is the PDF 1004 × 20 × 10 mm body or the webpage 1000 × 17 × 7 mm entry. Request a current code-labelled drawing and a full-length sample photograph. Do not accept a nominal one-metre description as a complete physical or electrical specification.
Ask for the current NSLP100 electrical sheet and identify the applicable input, consumption and lighting entries. The PDF family states 10–30 V, while the webpage mixes 10–30 V descriptive text with 12 V table entries. Keep each source attributed. The figures here are supplier publications, not test results or a wiring specification. If output is important, request a report with its supply and test conditions.
Request a configuration-specific photograph and packing list covering clear or milky cover, channel finish, cable length, termination and clip hardware. An optional PIR sensor or DC connector must be separately specified rather than inferred from a family picture. Ask for relevant environmental documents tied to the offered version; the shared IP67 catalogue entry is not proof of installed protection, a test certificate or a machine-specific approval.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.

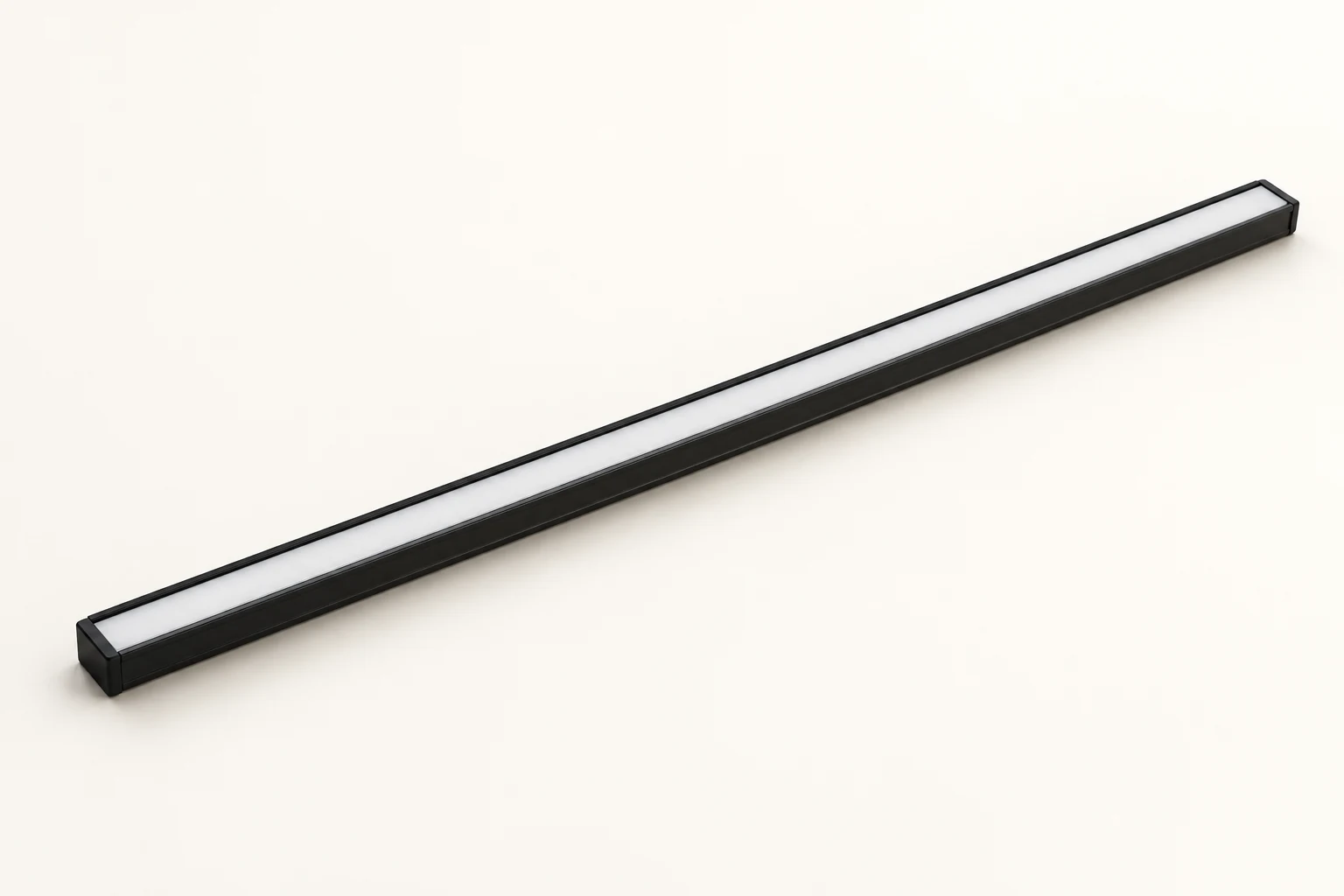

PDF and webpage values are kept as separate supplier records. Their revision dates, reason for differences and present availability remain unverified. The family-based illustration is not a model-labelled sample photo, exact LED-count or dimensional evidence. No stock, authorization, certification or vehicle compatibility is established.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
https://www.novavehicle.com/interior-and-exterior-12v-led-strip-light.html
Official PDF page 24 (printed 45–46) and current family webpage reviewed on 20 October 2026. PDF row is the primary model reference; publication date is not inferred from the filename. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
