Supplier product reference · reviewed 20 October 2026
500 mm nominal / 530 mm overall drawing reference with separate supply ranges, source limits and version-specific purchasing questions.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
NSVP50 is the half-metre nominal reference, with a 530 mm overall length in the shared drawing. The code is explicitly listed in the supplier table, and the shared drawing supplies the nominal and overall length sets. These references support a separate model entry while the parent page remains the family overview.
Its overall length differs from both the 500 mm nominal figure and the 504 mm NSLP50 body listed elsewhere in the catalogue. The same 50 suffix across two families does not establish equal end fittings, cross-section or installation space. Specify NSVP50 when asking a supplier to identify this particular assembly.
The NSVP50 row lists maximum 7.2 W and 800 lm. Those are supplier entries, not measured performance. They must not be borrowed to resolve the unclear NSVP30 power cell or transferred to a similarly sized NSLP/NSLD light. Ask which current data sheet belongs to the offered reference.

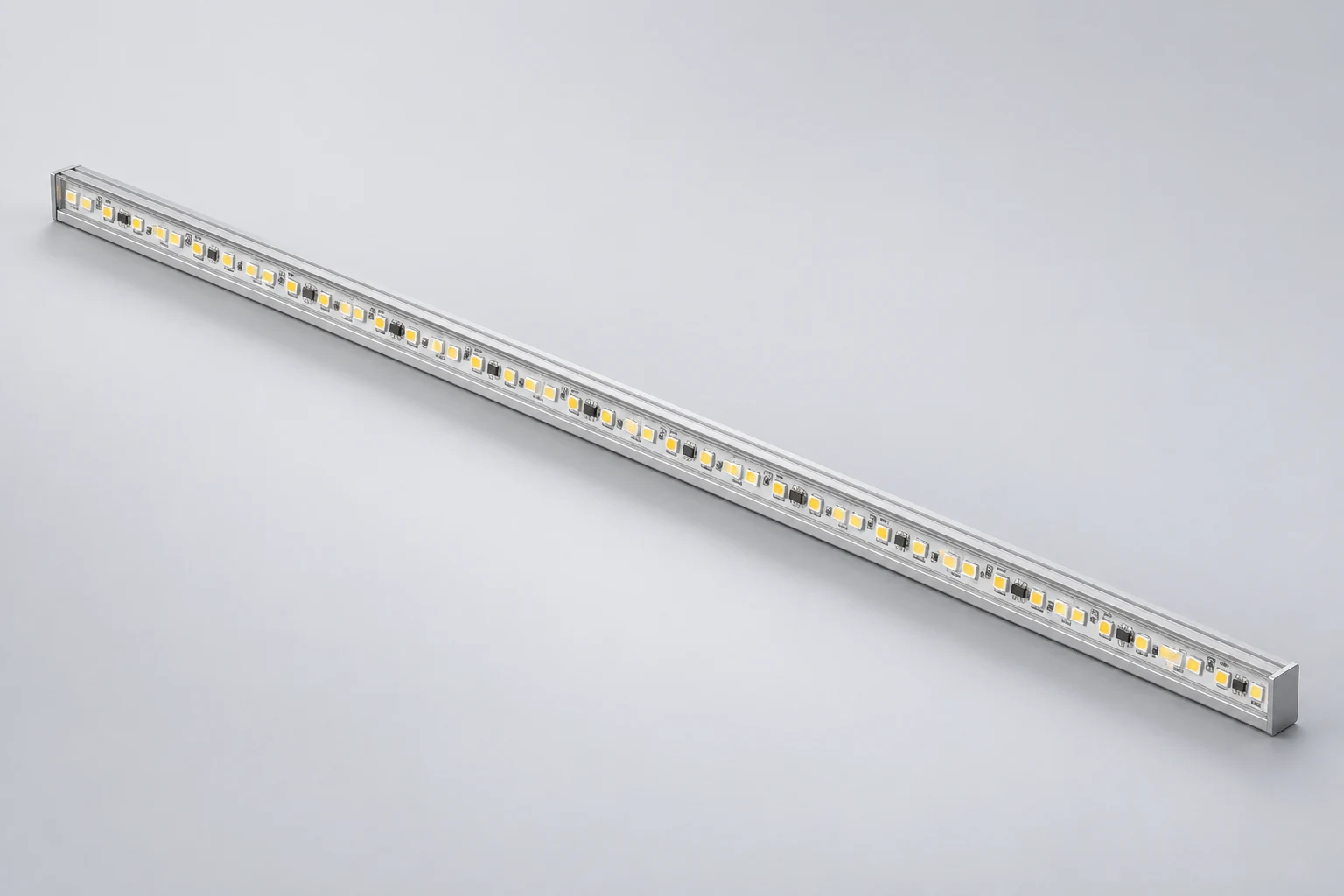

The family table describes colour-temperature choices of 4500 K, 5000 K and 6000 K. Choose the actual configuration in the written offer rather than assigning a colour temperature by its position beside a model row. A sensor-like element in a family photograph is not evidence that each quoted light includes a sensor, switch or a particular control function. The independently prepared illustration on this page represents the family appearance, not an authenticated model sample.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Ask for an NSVP50-labelled drawing distinguishing 500 mm nominal length from 530 mm overall. Identify cable exit, end fittings and fixing centres separately. An offer described only as a 50 cm strip does not confirm this family or all the space required by its proposed mounting arrangement.
Ask the supplier to identify the selected supply version, operating limits and current power data for NSVP50. The PDF uses 10–16 V or 24–30 V wording; it does not document continuous operation throughout 10–30 V. Keep those separate ranges intact and request the relevant current sheet instead of assuming every unit accepts both. A lumen entry is not a light-distribution report or an electrical connection instruction.
Ask for fixing details, cable exit, selected 1 m or 2 m lead and termination on the configuration drawing and packing list. The catalogue mentions clip and screw mounting without establishing every supplied combination or stock position. Request confirmation of any sensor or switch separately. Obtain environmental documentation tied to the offered version if required; a shared IP67 entry is not a certificate, independent test result or confirmation of protection after installation.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
Primary evidence is official PDF page 25, printed 47–48. The drawing labels mm while the table dimension cells end in m; drawing values are identified explicitly and a corrected current document is still requested. Publication date, inventory, authorization, certifications and machine fit remain unverified. The illustration does not establish dimensions, LED count, controls, mounting scope or measured output.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
Official PDF page 25 (printed 47–48), visually read on 20 October 2026; fresh PDF bytes match the local source. No publication date is inferred from its filename. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
