Supplier product reference · reviewed 18 October 2026
Ten length variants with separate main-beam, daytime-running and turning-function questions for the chosen configuration.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
The NW-OX table lists ten length codes: OX7, OX12, OX17, OX22, OX27, OX32, OX37, OX42, OX47 and OX52. Its shortest entry is 178mm at 30W, while the longest is 1321mm at 300W. A middle example, OX22, is 559mm with a 120W entry. These are supplier figures for separate versions, not one bar with selectable length or power.

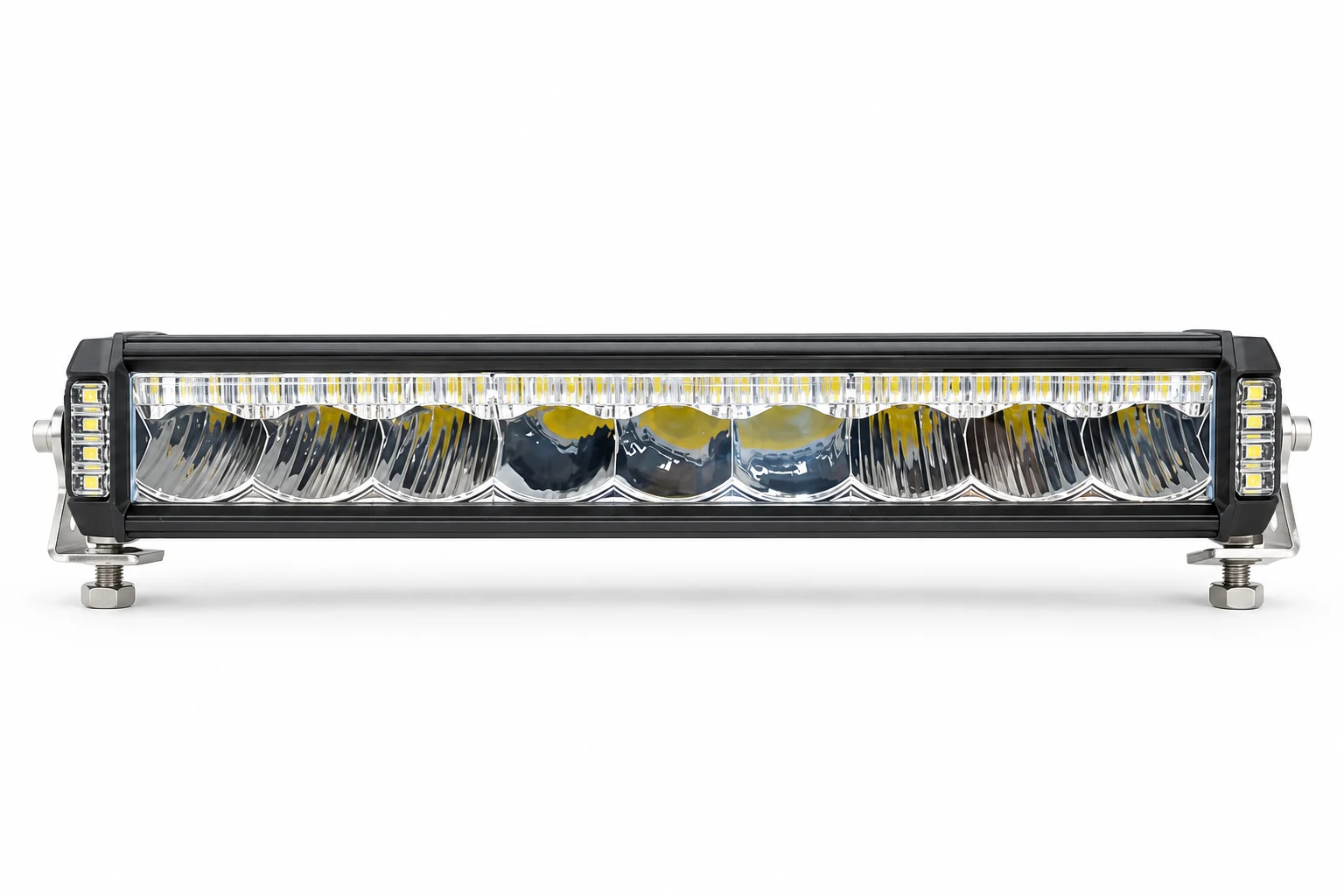

The body discusses main-beam, daytime-running and turning functions, plus optional side-shooter lighting. It explicitly describes R7 and R112 as pending. This page does not convert that wording into an approval claim or treat a daytime-running-light name as proof of lawful use. The prepared illustration reflects the photographed family appearance without establishing a particular size suffix.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request the chosen suffix, overall drawing and model-specific electrical information. The nominal size label does not replace the millimetre envelope or mounting pitch. Keep the bracket and cable-clearance requirements separate from the common 89 × 85mm cross-section entry.
List required main lighting, DRL, turning and optional side functions separately. Ask for the selected configuration and supporting function documentation. An exterior photograph cannot establish control inputs, simultaneous-operation rules or the optical performance of each function.
If approval is required, request current version-specific evidence rather than relying on pending source wording. Confirm bracket, fasteners, lead, connector and controller inclusion in the quotation. Do not assign the longest version’s power or lumen value to a shorter bar or present supplier output figures as measured results.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
The official NW-OX source supports ten listed lengths and attributed function descriptions. Pending approval wording remains pending source evidence. Photometric results, environmental performance and suitability for a particular machine or road use are not established.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
