Supplier product reference · reviewed 18 October 2026
A fourteen-optic source reference with a stated wide-angle claim and unrelated model wording that must remain separate.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.

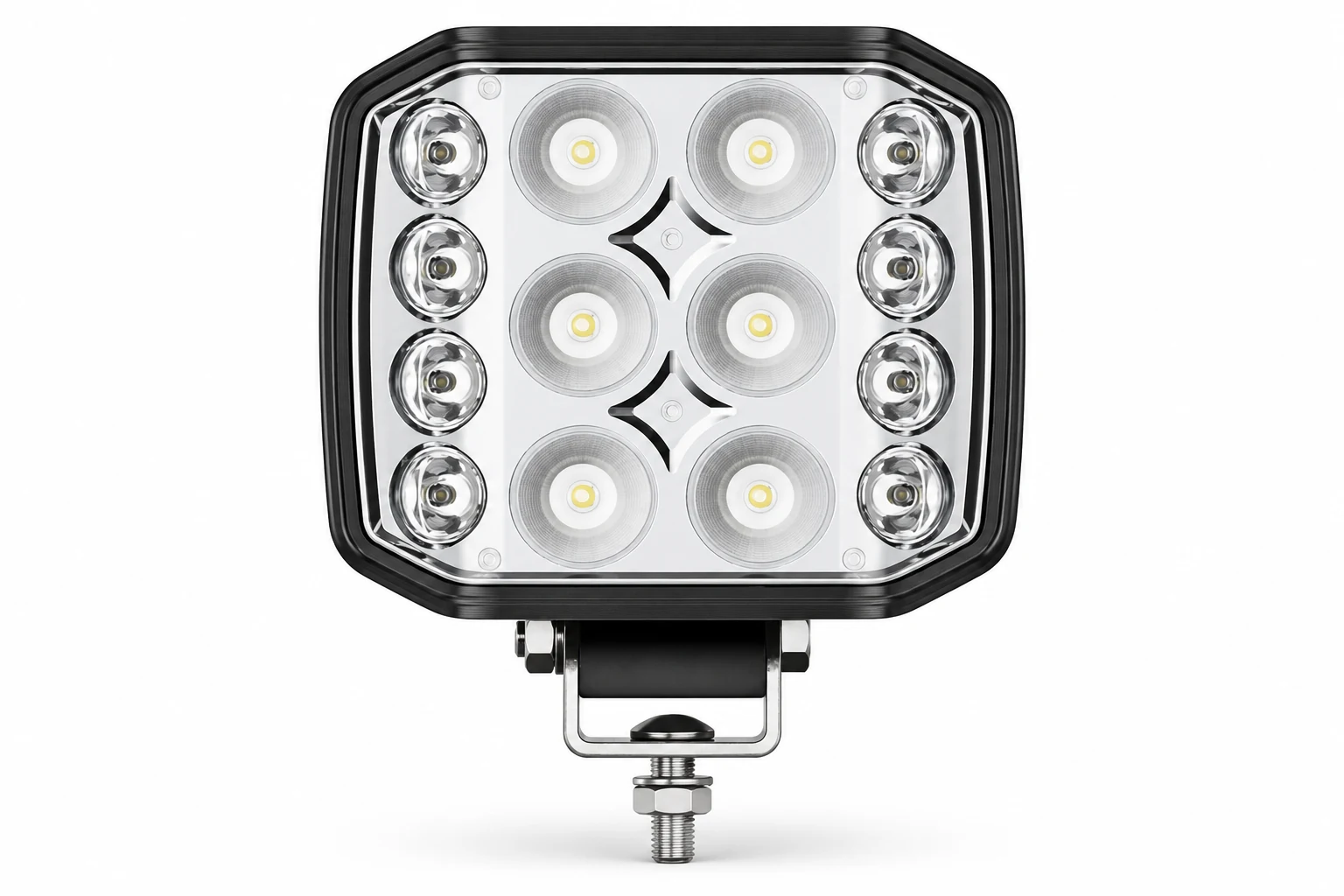

NW-S14 is the identity in the main feature section and specification table. An introductory paragraph instead mentions NW-S9 and thin-height options. Those details are not imported into NW-S14 as confirmed dimensions or evidence of an interchangeable model. The independent image retains six large central optics and eight smaller side optics from the NW-S14 source photograph.
The body lists six 5W spot emitters and eight 3W flood emitters alongside a 48W power entry. Those descriptions have different rating contexts and are not recalculated into a new total here. The 150-degree claim describes the supplier’s intended wide-angle result; it is not a witnessed beam measurement or proof of suitable illumination on a particular task.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request NW-S14 by its table reference and ask the supplier to separate the NW-S9 introduction. Confirm the offered voltage range and assembled-unit current demand. Do not choose between 9–36V and 9–32V wording without a current version sheet.
State the intended work area and ask for the applicable beam data and measurement conditions. The 4200lm and 150-degree figures alone do not establish light levels, glare or coverage at working distance. A multi-optic photograph cannot supply that evidence.
Obtain the full drawing, adjustment envelope, fixing pitch, cable length and termination. The 133 × 109 × 70mm table should not be mixed with the separate thin-height language. Required approval and protection documents must refer to the offered model and revision.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
Official NW-S14 table and feature text support the reference while retaining model-name, voltage and rating-context limitations. Optical coverage, lifespan, approval and environmental claims are not independently established. No safe-working result or universal vehicle fit is promised.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/wide-angle-150-degree-combo-driving-light.html
Product body and specification table reviewed on 18 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
