Xinnuoli catalogue: TFD35 / TFD70 manual lift tables

What the official reference establishes

The TFD entry sits in the supplier’s manual-platform category. Its parameter image separates TFD35 and TFD70: nominal loads are 350kg and 700kg, and platform dimensions are 910 × 500 × 53mm and 1220 × 610mm respectively. One source image shows a wheeled double-scissor table, so both codes remain grouped as one family rather than becoming duplicate pages for a differently sized platform.

Define the work before choosing a configuration

Define the workpiece footprint, centre of gravity, required working-height range, transfer interface and whether the table must move with a load. These are purchasing questions, not operating approval. The parameter image repeats the same Chinese maximum-height label on two rows: 355/445mm and 1300/1500mm. This reference preserves that labelling problem instead of silently reclassifying one row as minimum height. Ask for a corrected current drawing and the rated-load conditions.

Keep the supply package explicit

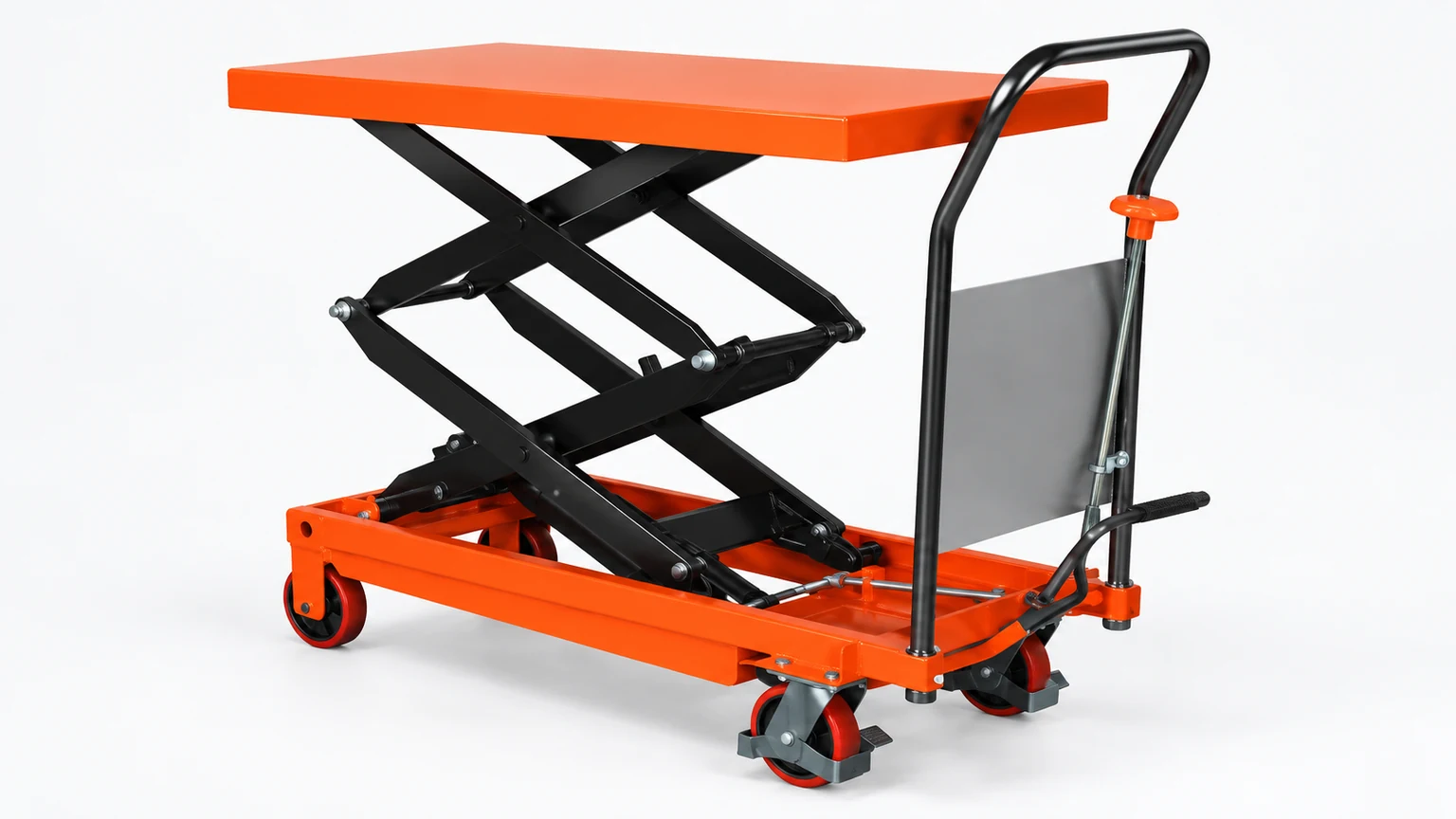

The presentation follows an orange top and chassis, black double-scissor arms, push handle, wheels and manual hydraulic lifting form. It does not establish which pump, cylinder, brakes, wheel material or protective features are supplied. The table lists different weights and pumping-stroke counts for the variants; those do not prove lift speed, cycle life, a safe moving-load duty or suitability as an access platform. No lifting or servicing steps are provided.

Questions for the proposed product

Which exact product and package are being quoted?

State the complete code, revision, condition, quantity, included equipment and documents. Link each proposed value to the current datasheet, nameplate or assembly drawing.

What confirms the application match?

Use the real load, dimensions, interfaces and site conditions. For a battery, confirm the whole pack and charger together; for handling equipment, obtain the relevant load basis and clearance drawing. Similar names or appearance are insufficient.

Who supplies and supports the order?

Identify the legal quotation and invoice issuer, delivery scope, warranty route and support responsibilities. Keep lead time, availability, exclusions and unresolved source details explicit. No stock or current authorization is verified here.

From product research to a comparable request

Prepare one written equipment or component requirement. For handling equipment, state the load, working height, access and route conditions. For a battery, identify the truck and whole-pack electrical and mechanical interfaces. Compare the exact configuration, documents and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The company-controlled About and Contact pages identify Taizhou Luqiao Xinnuoli Forklift Machinery Co., Ltd. and the Taizhou operating-centre address at No.816–818 East Luqiao Avenue, matching the existing profile. The company describes equipment sales and service; agency claims remain its own statements, not independently verified current authorization. These selected products are actually linked in its own catalogue. Product bodies are undated, and image-folder dates do not establish a launch date. The public HTTP bodies and original parameter images were read; HTTPS certificate verification failed during this review. No credentials or forms were used. Neither catalogue presence nor an illustration proves stock, manufacture, certification, performance, safe operating limits, fitment or the exact configuration supplied. Request current documents and a complete written quotation.
