MiMA ME electric pallet trucks

What the official reference establishes

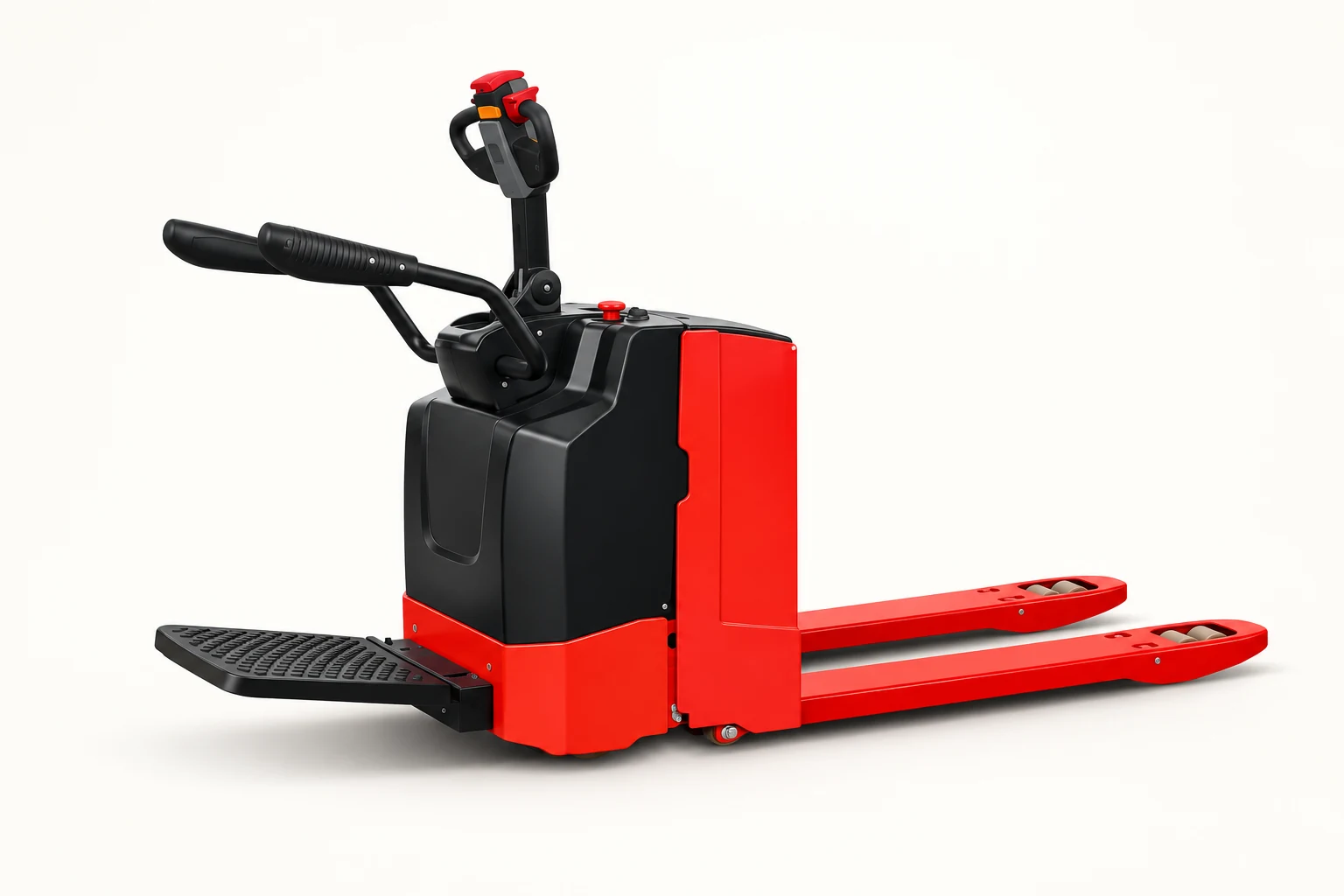

The MiMA ME product page documents battery-powered stand-on pallet trucks with a low fork chassis, tiller and platform. Its model heading and table list ME20, ME25, ME30 and ME40, with nominal load classes from 2.0 to 4.0 tonnes. This family supports a different purchasing decision from the MB mast stacker: pallet movement and transfer geometry rather than access to a higher rack level.

Define the work before choosing a configuration

Some body headings and introductory text say ME20/25/35/40, while the model selector and table use ME30. We preserve that discrepancy instead of creating a separate ME35 product or silently treating the two numbers as aliases. Different load classes, fork dimensions and platform-folded dimensions remain on one family reference. The source also describes both short-distance and medium-to-long-distance work; those descriptions are not a measured duty-cycle comparison for a particular route.

Keep the supply package explicit

Prepare the pallet underside and entry dimensions, load distribution, travel distance, floor and doorway constraints, transfer interfaces and charging plan. Ask which fork length, outside spread, wheels, standing platform and side supports belong to the quoted model. Keep the truck, battery, charger, options and service scope separately itemised. A low published lift height is not evidence that the truck can stack, and a headline load class does not approve an unusual pallet or site.

Questions for the proposed product

Does the quotation mean ME30 or ME35?

Ask for the complete manufacturer designation and current data sheet. The reviewed source is internally inconsistent, so a supplier response should resolve the code before the offers are treated as comparable.

Will the proposed fork geometry match the pallet requirement?

Provide pallet drawings or clear underside photographs and request the proposed fork dimensions and wheel arrangement in writing. The family image does not establish pallet compatibility.

What is included in the transport package?

Confirm battery chemistry and identification, charger, platform and support arrangement, documents, commissioning and after-sales responsibility. Separate options from standard scope rather than inferring them from the photograph.

From product research to a comparable request

Prepare a written equipment requirement around the actual load, working envelope, route and duty pattern. Request a full series/model designation and current configuration documents. Compare the truck, energy system or engine, mast, attachments, accessories, delivery and support separately. A shared short code, similar appearance or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The manufacturer-controlled MiMA website identifies Hefei Banyitong Science & Technology Developing Co., Ltd. and the Daihe Road/Cailun Road crossing in Xinzhan District, Hefei, matching this supplier record. The selected product body and its own image were read over HTTPS. Product pages are undated; image upload folders are not treated as launch dates. Model labels and values remain attributed catalogue information. Each source discrepancy described above stays unresolved until the correct current documents are obtained. For MHC, the differently labelled MHA/MH13 download is excluded. No stock, dealer authority, compliance, safety, performance or compatibility guarantee is inferred. This is purchasing preparation, not operating, installation, maintenance or release-to-service instruction.

https://www.mimaforklift.com/electric-pallet-truck/me20-me40/
