Golden bar-arm clamp

What the official reference establishes

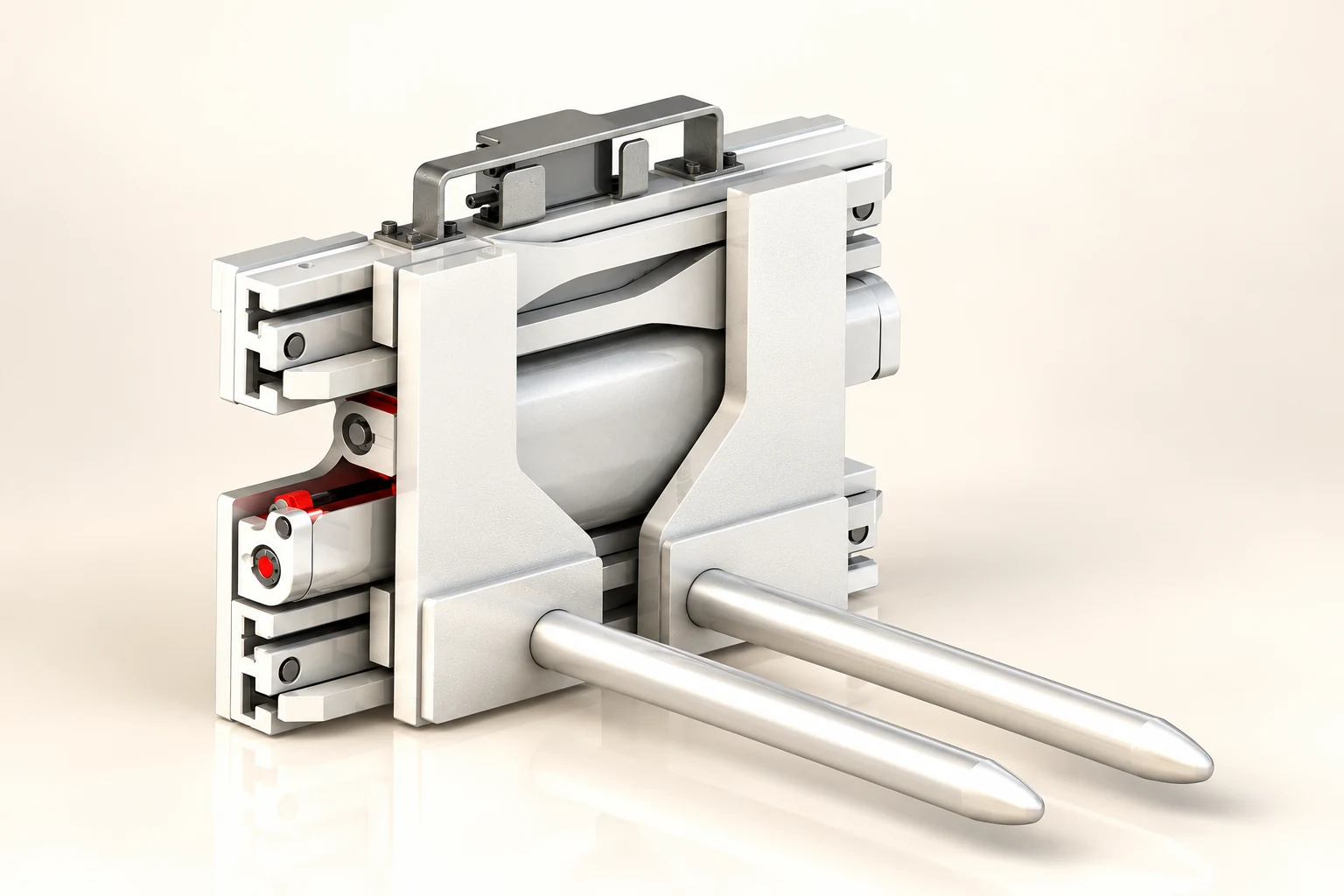

The Golden page labels this attachment as a round-bar clamp and provides its own primary image and technical table. The two forward cylindrical arms distinguish it from flat pallet forks and the broad contact arms of a bale clamp. The table includes several GA order codes under the same product page; they are configuration variants here, not separate new product pages.

Define the work before choosing a configuration

The GA20D-BAS-01A and GA20D-BAS-01B entries share several geometric fields but list different masses. Other entries change arm diameter, arm length, opening range and frame dimensions. The notes describe the listed products as sideshifting versions and discuss a non-sideshifting alternative with different hydraulic circuit requirements. That is an option boundary to document, not a reason to transfer circuit data from one variant to another.

Keep the supply package explicit

Provide the load and its intended interface with the cylindrical arms, dimensions and mass distribution. Identify the truck and carriage, existing attachment code if replacing one, and available hydraulic documents. Request the current complete GA designation, arm diameter and length, mounting details and included options. A visually similar pair of round arms does not establish approved material contact, load retention or truck compatibility.

Questions for the proposed product

Which complete GA code and arm geometry are offered?

Keep the BAS suffix and revision with the diameter, length, opening and frame dimensions. Ask the supplier to explain the mass difference where comparing otherwise similar entries.

Is sideshift included or excluded?

Require the offered hydraulic functions and interface documents to match the selected model. Do not infer a circuit count or sideshift capability solely from a product photograph.

What options change the contact arrangement?

The source mentions optional arm arrangements and special arm heads. Request their exact identification and current drawings separately; the standard illustration does not establish which options are supplied.

From product research to a comparable request

Prepare a written attachment requirement around the actual load, working envelope, route and duty pattern. Request a full series/model designation and current configuration documents. Compare the attachment, carriage interface, hydraulic functions, forks or arms, accessories, documentation, delivery and support separately. A shared short code, similar appearance or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The reviewed company-controlled website identifies Longyan Golden Machinery Manufacturing Co., Ltd. and a Longyan attachment business. The company and current contact bodies were read, together with each selected product body and its own image. The contact page currently lists No. 31 Jianglong Road, Longzhou Industrial Park, Xinluo District. The preserved directory introduction records an earlier No. 1 Jiangshan Road address; these are not silently treated as the same location or evidence of a legal relocation. Ask the contracting company to confirm its current identity and address. Product pages are undated; upload folders do not establish launch dates. The published HTTP source was read without an account or form submission; it is company-controlled material, not independent testing. Product statements remain bounded catalogue references, not current stock, authorization, certification, performance, safety or truck-fitment approval. Obtain current model-specific documents for the proposed combination. This is purchasing preparation, not installation, hydraulic adjustment, operating or return-to-service instruction.
