Suzhou Zowell supplier profile / RRE double-deep
Supplier-published product familyZowell RRE double-deep scissor reach truck
A standing reach-truck reference with a pantograph mechanism for double-deep pallet storage, with explicit rack and extended-load questions.
Identify the enquiry scope
- Supplier designation
- RRE standing double-deep scissor reach truck
- Published nominal capacity
- 1.45 t; confirm extended residual capacity
- Parameter-table lift height
- 11.225 m; headline rounds to 11.25 m
- Published reach stroke
- 1.03 m, supplier figure
Reviewed 20 October 2026. Supplier-published family information; request the current exact-model documents.
What the official product catalogue establishes

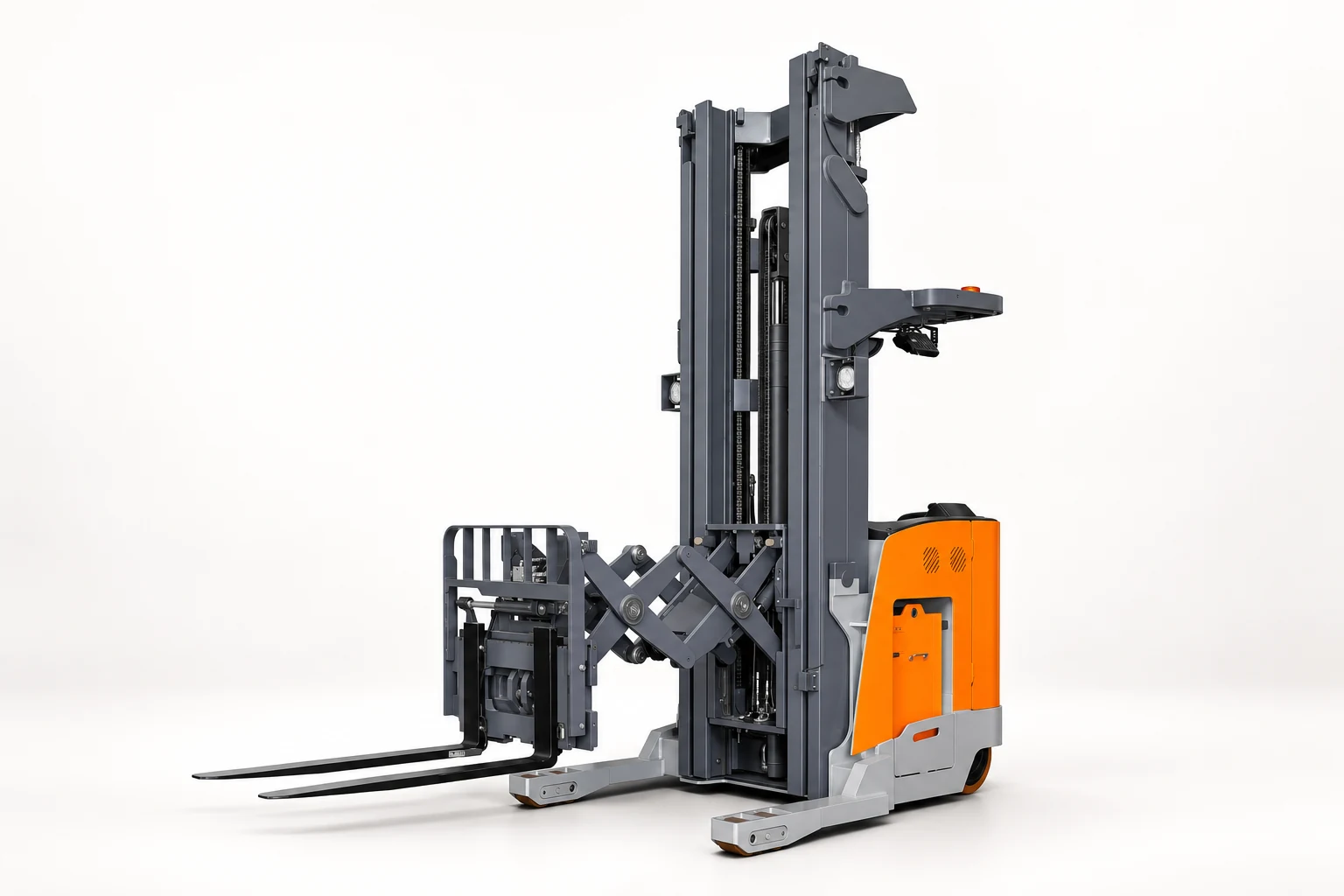

The official RRE page describes an electric standing truck with a scissor reach mechanism intended for double-deep racks. The pantograph is the feature separating this reference from a conventional reach truck or a three-way turret machine. Its role is access to the inner pallet position. The reference does not establish the accessibility of every pallet layout or the suitability of an existing rack installation.
Define the work before choosing a configuration
Zowell publishes 1.45 tonnes nominal capacity, an 11.225-metre lift figure in the body and parameter table, and 11.25 metres in the headline. This page preserves the table figure and identifies the headline variation. Ask for the current model sheet rather than assuming these values describe different trucks. The source also gives approximately 3.1 metres in prose and 3.12 metres in its table for the working aisle; neither replaces a pallet-specific layout.
Keep the supply package explicit
Prepare pallet entry dimensions, rack depths, beam heights, pallet supports, load centre and the required inner-position reach. The listed 1.03-metre reach stroke alone cannot establish access or capacity at the second position. Request the capacity information for the proposed extension, lift height, mast and forks. Separate truck configuration, any rack changes, installation checks and commissioning in the proposal; do not treat catalogue storage-density claims as measured results at your site.
Questions for the proposed truck
Is RRE a second listing of VUE?
No. RRE uses a scissor reach arrangement for double-deep pallets and is described as standing operation. VUE is a man-up turret concept; shared warehouse applications do not make the machines equivalent.
What should a double-deep proposal demonstrate?
The supplier should identify the actual truck and show the load and rack geometry, inner-position access, capacity limits and relevant clearance assumptions in current documents.
Does the source prove a cold-store truck is included?
No. Cold-store customization is described, but temperature capability and supplied equipment need exact-build documentation. No low-temperature or safety performance is independently confirmed here.
From product research to a comparable request
Prepare a written requirement with the load, load centre, lift height, mast restrictions, aisle and turning space, operating surfaces, shift pattern, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed truck, energy or engine package, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is Zowell’s official Chinese product centre. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
https://www.zowell.com.cn/proDetail.aspx?id=52
