Suzhou Zowell supplier profile / VUE man-up turret
Supplier-published product familyZowell VUE man-up turret forklift
An elevating operator-cab turret truck for high-level pallet handling and order-picking enquiries; keep rack layout and capacity evidence configuration-specific.
Identify the enquiry scope
- Supplier designation
- VUE man-up three-way turret truck
- Published nominal capacity
- 1.6 t; not residual capacity at every height
- Published lift range
- 3–18 m, supplier parameter table
- Aisle evidence
- Source gives different figures; obtain a site-specific layout
Reviewed 20 October 2026. Supplier-published family information; request the current exact-model documents.
What the official product catalogue establishes

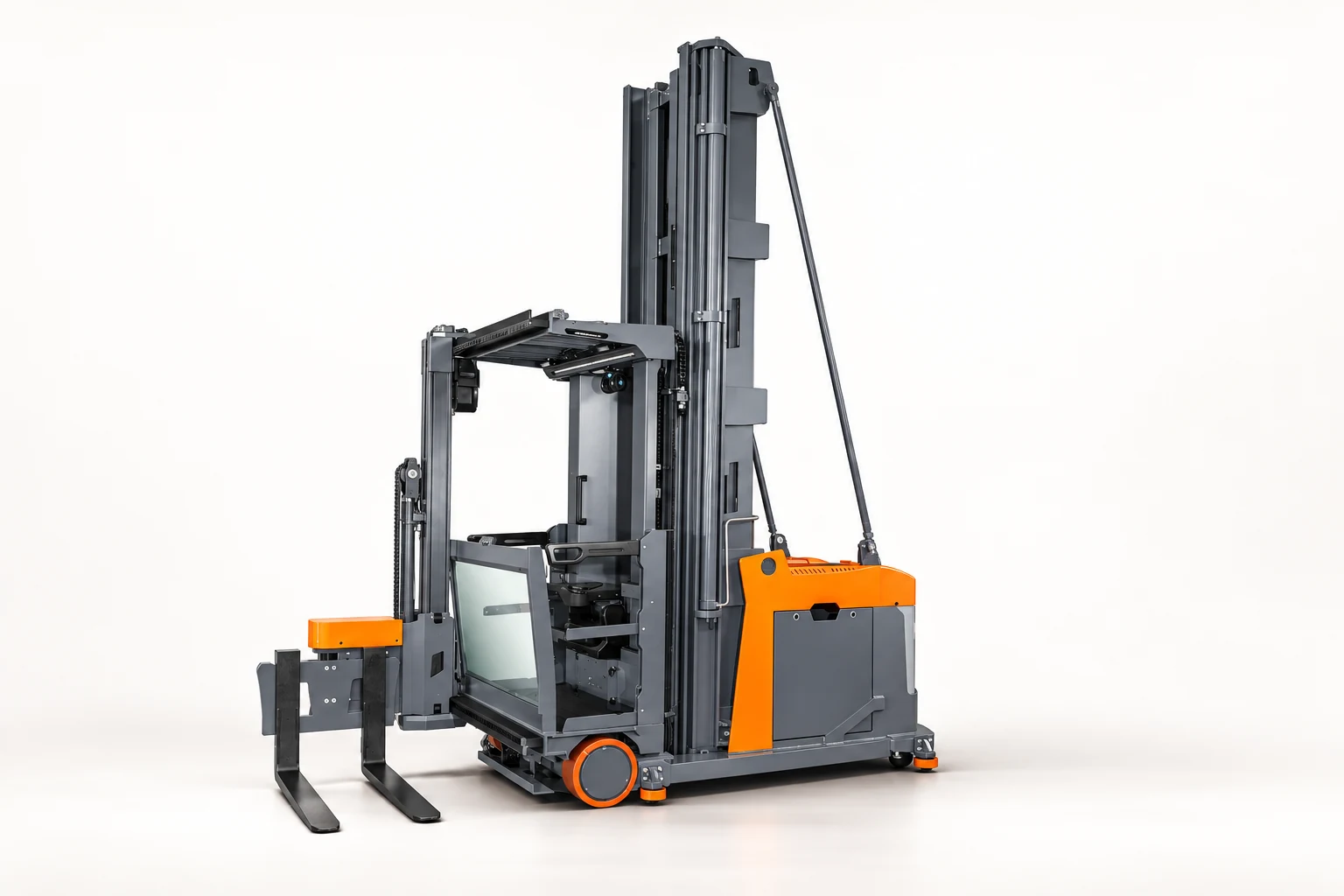

Zowell’s Chinese product centre identifies VUE as a man-up three-way turret truck. Its distinguishing arrangement combines an elevating operator compartment with a rotating fork head, rather than leaving the operator at floor level. The supplier describes both pallet stacking and high-level picking. These are catalogue functions for defining an enquiry, not approval of a particular warehouse or instructions for elevated work.
Define the work before choosing a configuration
The official page does not present one consistent minimum aisle figure: its introduction gives 1.65–1.85 metres, while its parameter table gives 1.75 metres. ForkliftIQ retains that difference instead of choosing the smallest number. Supply the pallet dimensions, load overhang, rack geometry, entry and transfer aisles, floor information and overhead restrictions. Request a dated layout for the proposed truck and guidance arrangement, with every clearance assumption visible.
Keep the supply package explicit
The page publishes a 1.6-tonne nominal rating and a 3–18-metre lift range. Those figures must not be combined into a claim that 1.6 tonnes can be handled at 18 metres. Ask for the exact mast, attachment, load-centre basis and residual-capacity chart. Clarify the intended split between full-pallet handling and picking, the operator compartment supplied, guidance infrastructure and commissioning scope. Do not assume an illustrated configuration includes every advertised option.
Questions for the proposed truck
How does VUE differ from the other references?
Its operator compartment rises with the handling arrangement. RRE addresses double-deep pallet access, RSEW long loads and JSH articulated steering. They are separate functions, not interchangeable model aliases.
Which aisle dimension belongs in the purchase record?
Use the supplier’s configuration-specific layout and stated load envelope. The conflicting catalogue numbers are discovery information, not a guaranteed design clearance.
Are cold-store or other special-environment options approved here?
No. The supplier mentions custom variants, but this reference does not establish certification or suitability. Obtain exact-build documents and the appropriate site review.
From product research to a comparable request
Prepare a written requirement with the load, load centre, lift height, mast restrictions, aisle and turning space, operating surfaces, shift pattern, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed truck, energy or engine package, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is Zowell’s official Chinese product centre. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
https://www.zowell.com.cn/proDetail.aspx?id=302
