CS single-scissor material table family

What the official product catalogue establishes

Tenderly’s CS page groups five single-scissor mobile material tables. The catalogue sheets distinguish the smaller 150 kg version, the 300 and 500 kg versions, and the 800 and 1,000 kg versions. The respective platform sizes are 700 × 450 × 35 mm, 815 × 500 × 50 mm for the middle pair, and 1,016 × 510 × 60 mm for the larger pair. These are separate table rows within one family, not five unrelated product pages. The supplier’s publication date belongs to the source listing, and later image update dates do not establish a new product launch.

Define the work before choosing a configuration

Start with the load footprint, mass, centre of gravity and the height of the receiving surface. A larger nominal rating does not by itself prove that a concentrated, rolling or overhanging load is acceptable. Ask for the load-distribution basis and a current drawing of the chosen model. Keep minimum platform height, maximum platform height and lifting travel separate. The push handle, wheels and pedal also affect the space needed at the workstation. This reference explains a material-handling interface; it does not establish suitability for raising people or a specific production process.

Keep the supply package explicit

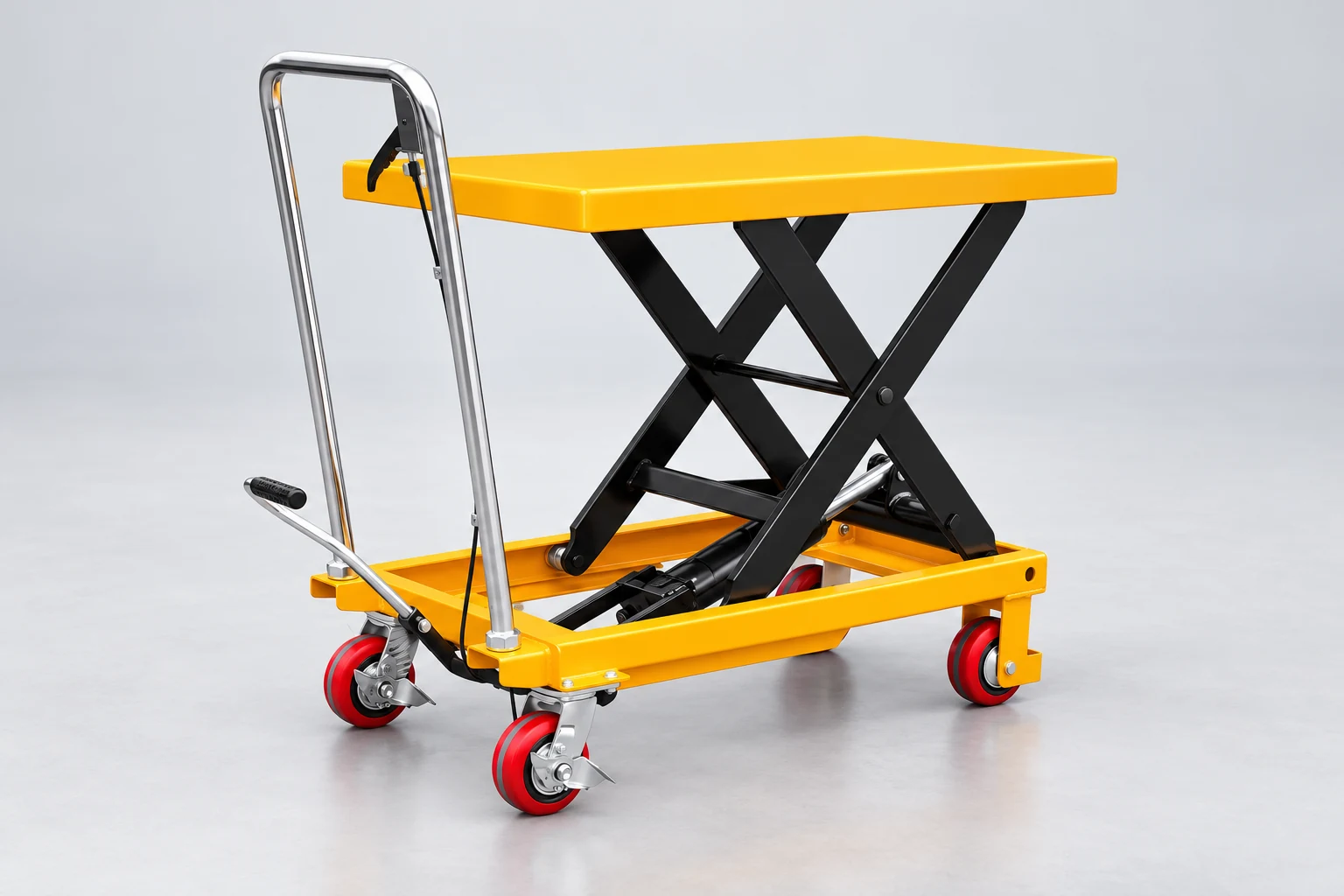

The source distinguishes wheel-side brakes on CS15A, CS30A and CS50A from a foot-operated brake arrangement on CS80A and CS100A. Confirm the actual ordered version rather than applying a feature from one image to the entire family. Ask which finish, wheel material, accessories and documentation are included. The independent presentation shows one representative configuration and is not a dimensional drawing or evidence that all five models share identical components. A similar-looking table from another supplier is not automatically the same model or an interchangeable parts source.

Questions for the proposed product

Which table row is attached to the quotation?

Request the exact CS code, platform dimensions, lowered and raised heights, machine mass and complete footprint on a drawing. Have the supplier identify the measurement points and current revision. Compare the proposed load and transfer height with that drawing before comparing prices.

What load and workstation information should be supplied?

Provide load dimensions, centre of gravity, support/contact arrangement and the receiving surface layout. Ask for the applicable load-distribution basis and exclusions. Keep any fixture, roller top or special platform separate from the standard table quote; the family capacity is not approval of an unspecified accessory.

What belongs in the purchase record?

List the model, brake and wheel arrangement, accessories, manuals, delivery condition, warranty and service-parts route. Ask for current availability and lead time in writing. Preserve the supplier’s answers and any unresolved dimensional points alongside the quotation; an old catalogue listing is not a current offer.

From product research to a comparable request

Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.

Sources and evidence boundary

The source is Wuxi Tenderly’s own sales catalogue. The supplier entry is dated 18 July 2024. This historical catalogue date is not evidence of a current offer or new release; the review date is not a release date. The company describes development and manufacture on its own website; inclusion is not an independent factory audit or proof of brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
