Wuxi Tenderly supplier profile / EJ-N
Supplier-published product familyEJ-N lightweight semi-electric stacker family
Four source variants combine lightweight stacking and workstation handling. The 2,000 mm version is rated at 200 kg, while the three lower versions are listed at 400 kg.
Identify the enquiry scope
- Source model sequence
- EJ4130A-N / EJ4150A-N / EJ4180A-N / EJ2200A-N
- Listed load sequence / load centre
- 400 / 400 / 400 / 200 kg; 325 mm
- Maximum fork heights
- 1,300 / 1,500 / 1,800 / 2,000 mm respectively
- Fork length / outside adjustment
- 650 mm / 220–550 mm
Reviewed 23 October 2026. Dimensions and ratings are attributed to the supplier table, not independent testing; request current exact-model documents.
What the official product catalogue establishes
The EJ-N source presents a lightweight semi-electric stacker family with adjustable forks and a pictured flat-platform arrangement. Four model codes appear in its parameter table. The first three are listed at 400 kg, while EJ2200A-N is listed at 200 kg. Grouping the related versions on one page keeps that distinction visible and avoids turning a general 400 kg family description into a claim about the 2 metre model. The published load centre is 325 mm. A longer or deeper load needs its own assessment rather than an assumption based solely on nominal mass.
Define the work before choosing a configuration
Describe the load dimensions, support points, centre of gravity and required receiving height. Ask for the exact model drawing, including lowered fork height, overall mast height, support-leg geometry and clearance at the workstation. The source shows a platform arrangement in addition to forks; confirm whether it is included, optional or a special configuration in the current offer. Do not create a second verified product from that illustration alone. A platform changes the load-support interface, so its own dimensions and load basis should remain attached to the written proposal.
Keep the supply package explicit

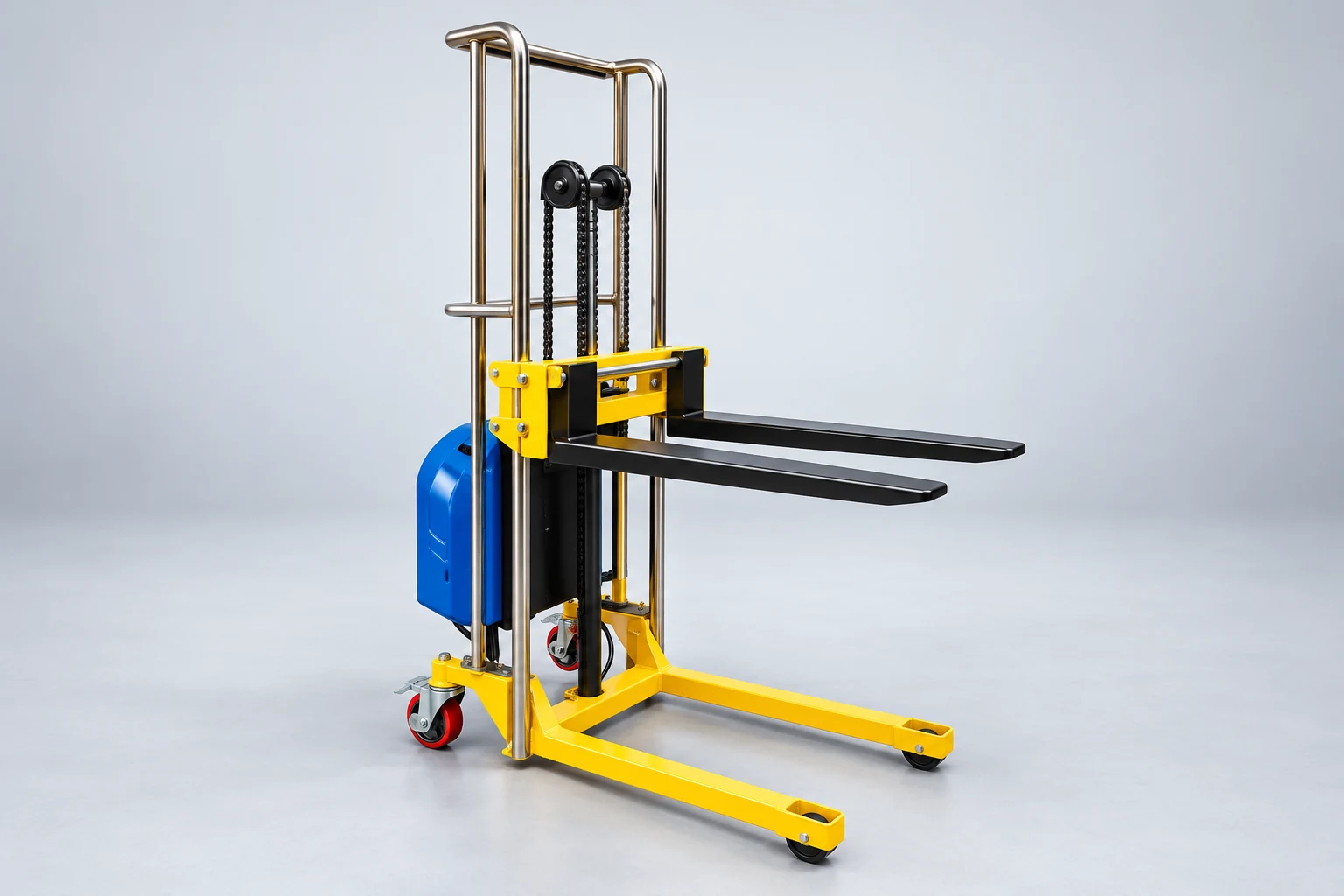

The parameter sheet lists a 0.8 kW pump and a battery row headed Ah/V with 52/12 notation. Obtain current battery, charger and electrical identification rather than assuming every offer uses the same package. Semi-electric describes the source family and does not establish a powered travel drive. Ask the supplier to identify which functions are powered and which require manual movement. The image is a representative family presentation, not proof of capacity at every height, certification, operational suitability or delivery of a particular model. No runtime or safety benefit is independently verified here.
Questions for the proposed product
Which code and load chart correspond to the required height?
Require the complete model suffix, load-centre basis, maximum fork height and relevant capacity documentation. Explicitly distinguish the 200 kg EJ2200A-N from the three 400 kg versions. Keep a standard table rating separate from any proposed modification or different load geometry.
Are forks or a platform included?
Provide the load footprint and transfer interface. Ask for fork adjustment limits, platform dimensions where proposed, support-leg layout and overall envelope on the ordered drawing. Do not use a representative image or a brief accessory note as evidence of an exact supplied package.
How should the energy and service package be compared?
Request battery and charger labels, supply requirements, manuals, delivery condition and service-parts identification. List accessories and any special dimensions separately. Compare each offer against the same load, height and route requirements, and preserve incomplete answers as open points rather than silently choosing assumptions.
From product research to a comparable request
Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is Wuxi Tenderly’s own sales catalogue. The supplier entry is dated 25 August 2025. This historical catalogue date is not evidence of a current offer or new release; the review date is not a release date. The company describes development and manufacture on its own website; inclusion is not an independent factory audit or proof of brand authorization. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
