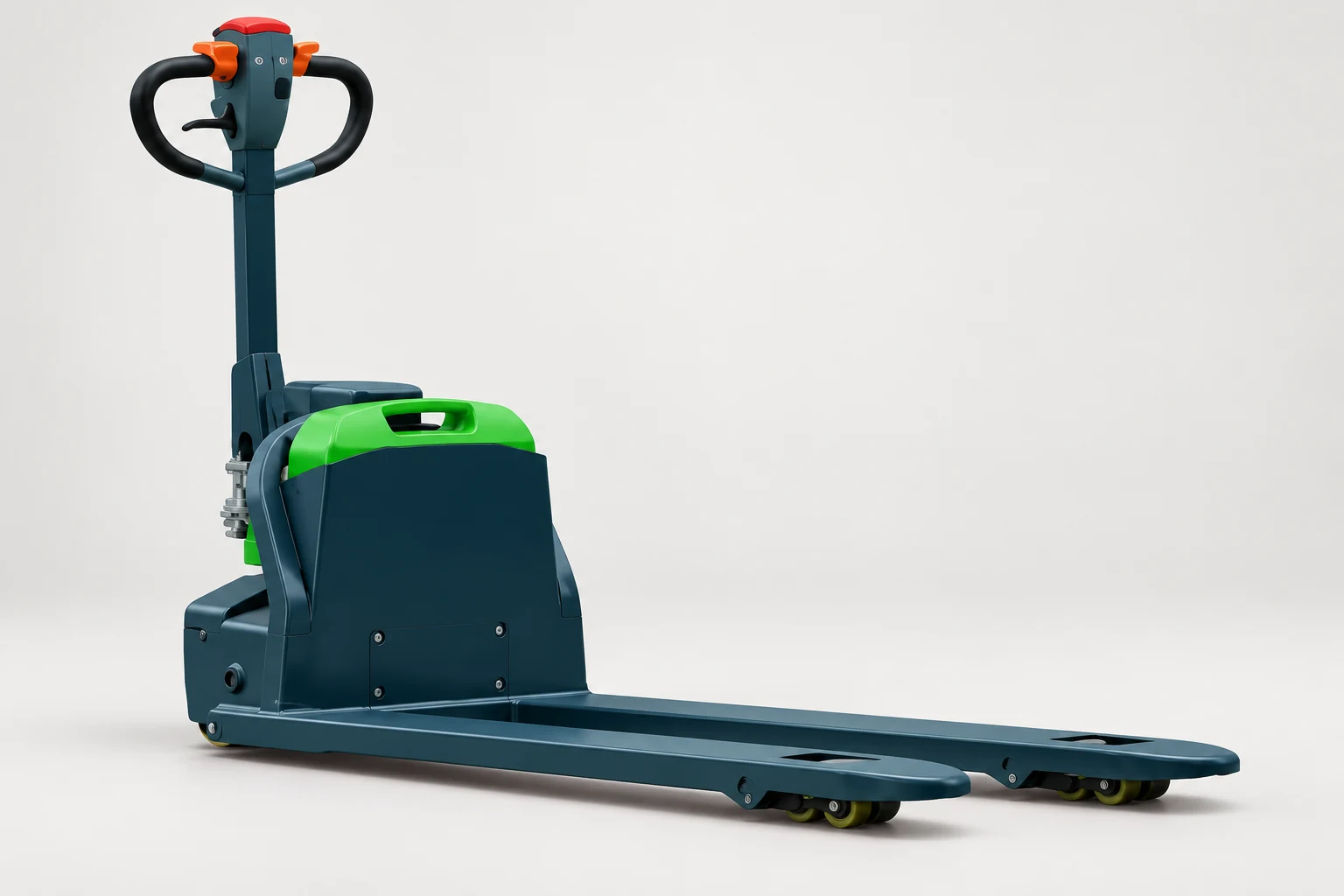

Lonking CBD15/20-E1 lithium pallet trucks

What the official reference establishes

This is a low-lift walk-behind pallet truck, not a mast stacker or a ride-on truck. The detail table explicitly separates CBD15-E1 and CBD20-E1, while the category summary shows only a 1,500 kg figure. Both variants remain in one family reference, with that difference visible. They are not duplicated as new products merely because capacity or battery choices change. Similar CBD15-E1C2 names elsewhere in the range are not treated as interchangeable E1 versions.

Define the work before choosing a configuration

Record pallet entry geometry, fork spread, load weight and centre, route distance, floor joints, gradients, thresholds and any vehicle or lift restrictions. Ask for the exact truck mass including the proposed battery if a floor, tail lift or goods lift has a weight limit. Low lifting height does not establish suitability for stacking, and a catalogue claim about compactness is not approval for a particular confined space.

Keep the supply package explicit

The table lists several 24 V battery options for CBD15-E1 and 48 V choices for CBD20-E1. Do not assume the two capacities share the same battery, charger or component match. Category-summary fork notation and table choices should be reconciled against the offered configuration. Request the fork drawing and battery/charger identifiers, plus manuals and service-parts references, before comparing prices.

Questions for the proposed product

Which capacity and electrical version is being offered?

Require the full CBD15-E1 or CBD20-E1 designation and matching battery/charger information. A single 1.5-tonne summary cannot describe every table variant.

Do the forks match the actual pallet?

Provide the pallet opening and underside dimensions. Confirm outside fork spread, fork section and length from the proposed drawing, rather than appearance alone.

What should be included with the truck?

List battery, charger, plug, manuals, spare-battery options, delivery and support separately. Confirm compatibility of any extra battery; optional items are not standard merely because a picture or description mentions them.

From product research to a comparable request

Prepare one written equipment requirement around the actual load, handling height, route and shift pattern. Compare full model, mast, energy system, tyres, forks, attachments, dimensions, documents, delivery and support on the same basis. Keep assumptions visible. A shared short code or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The controlled company introduction identifies Lonking (Shanghai) Forklift Co., Ltd. as the forklift business, and its contact page lists No. 196 Xinrun Road, Xinqiao Town, Songjiang District, Shanghai, matching the existing profile. The company body describes Shanghai and Jiangxi production bases; it does not assign the proposed unit to one plant. Each selected manufacturer product body, mapped primary image and technical table was read. Product bodies are undated; image-folder dates do not establish a launch date or current availability. The NH heading versus NPL parameter-image discrepancy, diesel engine-version boundary and E1 category-summary differences are retained in the relevant references. Company-controlled information is not independent testing. Confirm current identity, model, configuration, destination documentation, warranty and commercial terms before contracting. These pages do not verify stock, authorization, certification, performance, safety or suitability for a specific site. They provide purchasing preparation, not operating, installation, high-voltage service or return-to-service instructions.
