Lonking CQD16/20-E4C5 seated reach trucks

What the official reference establishes

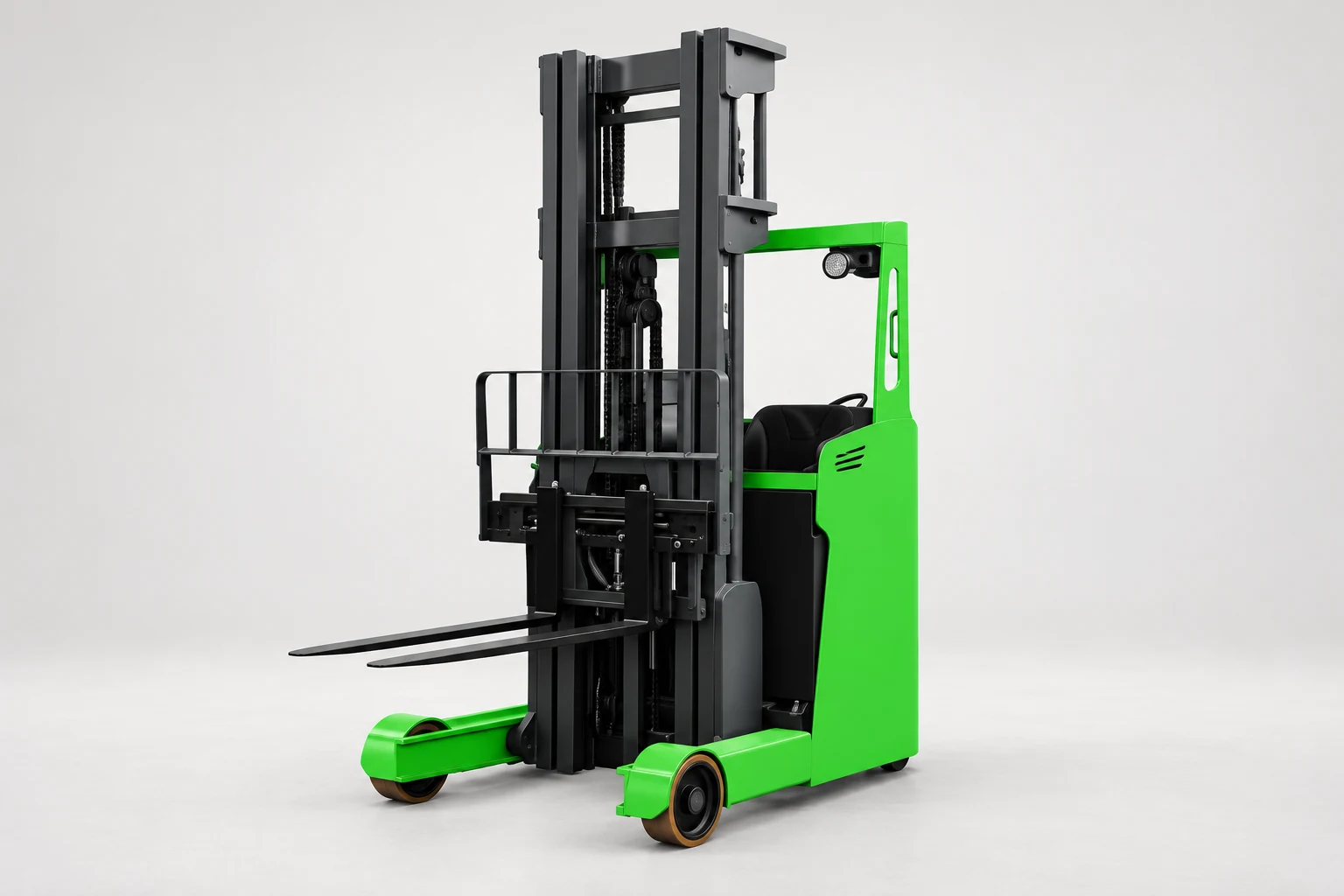

The controlled catalogue separates this seated reach-truck family from standing reach models with E2C15 suffixes. The E4C5 table has paired 1.6/2.0-tonne values and multiple mast columns, so it cannot be reduced to one universal set of dimensions. Its mapped image shows the narrow reach-truck form with forward outriggers. The illustration explains that layout; it does not establish the mast supplied with a quotation.

Define the work before choosing a configuration

Start with pallet orientation, pallet underside, rack beam levels, maximum load height, clear aisle, floor specification and doorway restrictions. Ask for the stacking-aisle calculation using the actual pallet, overhang and clearance allowance. A stated turning radius alone does not prove that a truck can work in the available aisle. Require the remaining capacity at the intended rack level with the selected mast and load centre.

Keep the supply package explicit

The table lists lead-acid and lithium alternatives, including different capacities, rather than one battery fitted to every truck. It also varies mast closed height and overall raised height by mast column. The source describes height preselection as optional; do not include it by implication. Confirm battery, charger, side shift and other options on the exact build sheet instead of combining attractive values from different variants.

Questions for the proposed product

Which mast column applies to the offered model?

Obtain the full model and mast designation, closed height, raised height, free lift and residual-capacity chart. The nominal 1.6/2.0-tonne class does not apply automatically at every height.

Will the truck fit the handling space?

Provide rack and pallet drawings, load overhang, floor constraints and doors. Request the configuration-specific aisle calculation and clearance assumptions.

Which energy and control options are included?

Separate battery chemistry and capacity, charger, battery handling arrangement, side shift and optional height preselection. Ask for current documents matching those choices.

From product research to a comparable request

Prepare one written equipment requirement around the actual load, handling height, route and shift pattern. Compare full model, mast, energy system, tyres, forks, attachments, dimensions, documents, delivery and support on the same basis. Keep assumptions visible. A shared short code or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The controlled company introduction identifies Lonking (Shanghai) Forklift Co., Ltd. as the forklift business, and its contact page lists No. 196 Xinrun Road, Xinqiao Town, Songjiang District, Shanghai, matching the existing profile. The company body describes Shanghai and Jiangxi production bases; it does not assign the proposed unit to one plant. Each selected manufacturer product body, mapped primary image and technical table was read. Product bodies are undated; image-folder dates do not establish a launch date or current availability. The NH heading versus NPL parameter-image discrepancy, diesel engine-version boundary and E1 category-summary differences are retained in the relevant references. Company-controlled information is not independent testing. Confirm current identity, model, configuration, destination documentation, warranty and commercial terms before contracting. These pages do not verify stock, authorization, certification, performance, safety or suitability for a specific site. They provide purchasing preparation, not operating, installation, high-voltage service or return-to-service instructions.
