Jinhua Hongshuo Chain supplier profile / C2082-A2
Supplier catalogue product referenceHongshuo C2082-A2 attachment conveyor chain
A double-pitch conveyor-chain reference with an A2 attachment. Preserve the suffix and attachment drawing rather than substituting a plain chain or K2 form.
Identify the enquiry scope
- Complete designation
- C2082-A2; A2 attachment suffix retained
- Sheet base cross-reference / pitch
- C216AL / P = 50.80mm
- Selected drawing symbols
- G = 38.10mm; L = 19.10mm; d4 hole 6.80mm
- Supply boundary
- Attachment side, count, spacing and mating drawing require confirmation
Reviewed 28 October 2026. Source dating: Official detail published 24 January 2018; body, original photo and parameter sheet reviewed 28 October 2026. No new-release or current-stock claim. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
The official C2082-A2 page is dated 24 January 2018 and links a double-pitch conveyor-chain sheet with standard attachments. Its C2082 row carries ISO/DIN reference C216AL and lists P = 50.80mm, G = 38.10mm, L = 19.10mm and d4 hole diameter 6.80mm. These symbols must be read against the supplier’s attachment drawing; they are not generic overall chain dimensions.
Define the work before choosing a configuration

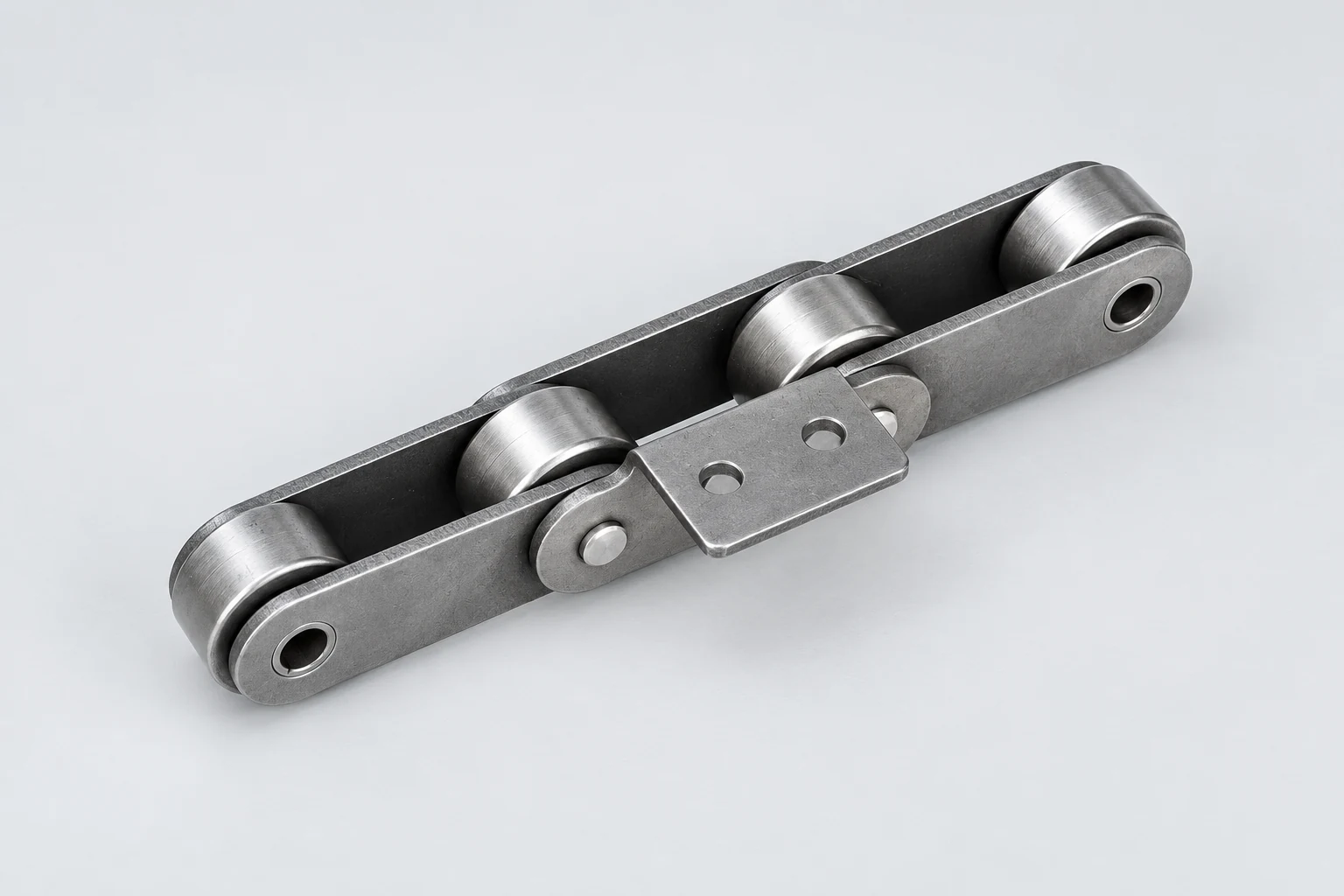

The original product photograph shows a one-sided bent attachment with two holes. The linked sheet distinguishes A-1, A-2, K-1 and K-2 forms. Keep A2 with the complete C2082 designation and ask for the required attachment side, spacing pattern, hole layout, mating-part drawing and current chain specification. The photograph of one attachment is not proof of how many attachments are supplied along a purchased length.
Keep the supply package explicit
This is a conveyor/attachment-chain enquiry route, not an automatically approved forklift lifting-chain substitute. The listed geometry does not establish attachment load, fatigue performance, alignment or compatibility with another conveyor. Confirm the exact assembly and connecting scope, material/finish, environmental duty, required documents and responsibility for technical acceptance. No bracket modification, drilling, welding, chain joining or installation steps are supplied here.
Questions for the proposed product
Which complete chain specification is being quoted?
State the full series and suffix, construction, pitch, plate or strand arrangement, pin/roller/bore geometry, length, end connections and any attachments. Request the current approved drawing tied to the offer.
What proves the application match?
Provide the installed equipment identity and its chain specification to the responsible technical party. Require written application review. Similar pitch or appearance and catalogue tensile strength do not establish interchangeability or allowable lift load.
What is included and documented?
Confirm quantity, current availability, material/finish, connecting and attachment scope, traceability, required technical documents, delivery and warranty. Website categories do not independently prove certification, stock, authorization or vehicle fitment.
From product research to a comparable request
Prepare a written component requirement preserving the installed equipment identity and full chain specification. Compare the correct chain series, construction, pitch, geometry, length, end connections, attachment pattern, material and documentation. Keep unresolved differences visible for technical review. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The official contact body identifies Jinhua Hongshuo Chain Co., Ltd. at No.1389 Xianyuan Road, Wucheng District, Jinhua, Zhejiang. The company-controlled product bodies, individual original photos and linked parameter sheets were read directly. The product details retain their 24 January 2018 publication dates; a current reachable page is not proof of a new release, current stock or unchanged specifications. Supplier standard-series headings are not independent certification. Generic forklift application wording does not approve every chain for a truck. Confirm the current complete specification, application, contracting entity and documentation. Images explain chain form and are not dimensional, strength, factory or test evidence. No installation, replacement, adjustment, joining or lifting procedures are provided.
