Hongshuo Hollow-pin roller chain family

What the official reference establishes

The company detail is titled hollow pin roller chain and is dated 24 January 2018. Its linked dimension sheet lists several distinct HP-series rows rather than one complete model code for the family photograph. Examples include 08BHP at 12.70mm pitch, 10BHP at 15.875mm and 12BHP at 19.05mm. Separate 40HP, 50HP, double-pitch and other rows remain separate references, not aliases of the same chain.

Define the work before choosing a configuration

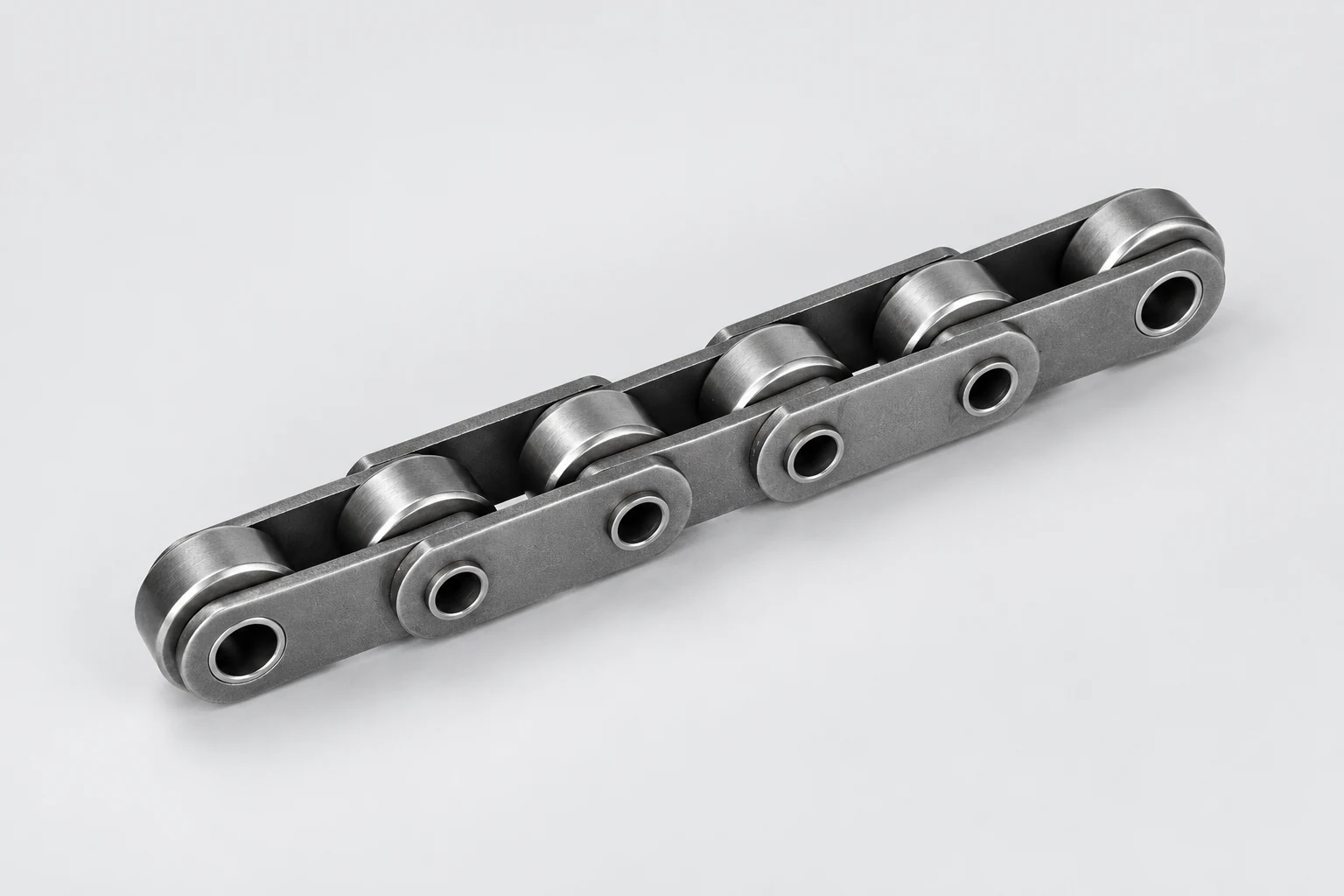

The visible hollow pin bores distinguish this construction from solid-pin roller chain. For example, the supplier 08BHP row gives a 7.75mm inner width and a d3 bore entry of 4.50mm; those values do not apply automatically to the other HP rows. Ask for the exact full code, bore and outside-pin geometry, roller size, attachment or cross-rod requirements, total length and current drawing. No cross-rod, fastening method or accessory is included merely because the bore is illustrated.

Keep the supply package explicit

The family image cannot select a specific HP row or establish a custom attachment load. Avoid treating the same pitch in 08BHP, 40HP or a double-pitch code as proof of replacement equivalence. Confirm the proposed chain’s application, material, environment, connection scope, documents and contractual responsibilities. Catalogue strength data are not converted to working-load or lifting limits. This reference offers no assembly, pin insertion, chain joining or operating procedure.

Questions for the proposed product

Which complete chain specification is being quoted?

State the full series and suffix, construction, pitch, plate or strand arrangement, pin/roller/bore geometry, length, end connections and any attachments. Request the current approved drawing tied to the offer.

What proves the application match?

Provide the installed equipment identity and its chain specification to the responsible technical party. Require written application review. Similar pitch or appearance and catalogue tensile strength do not establish interchangeability or allowable lift load.

What is included and documented?

Confirm quantity, current availability, material/finish, connecting and attachment scope, traceability, required technical documents, delivery and warranty. Website categories do not independently prove certification, stock, authorization or vehicle fitment.

From product research to a comparable request

Prepare a written component requirement preserving the installed equipment identity and full chain specification. Compare the correct chain series, construction, pitch, geometry, length, end connections, attachment pattern, material and documentation. Keep unresolved differences visible for technical review. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The official contact body identifies Jinhua Hongshuo Chain Co., Ltd. at No.1389 Xianyuan Road, Wucheng District, Jinhua, Zhejiang. The company-controlled product bodies, individual original photos and linked parameter sheets were read directly. The product details retain their 24 January 2018 publication dates; a current reachable page is not proof of a new release, current stock or unchanged specifications. Supplier standard-series headings are not independent certification. Generic forklift application wording does not approve every chain for a truck. Confirm the current complete specification, application, contracting entity and documentation. Images explain chain form and are not dimensional, strength, factory or test evidence. No installation, replacement, adjustment, joining or lifting procedures are provided.
