Jinrui CZL-F-003 engine water pump — 4FE1

What the official reference establishes

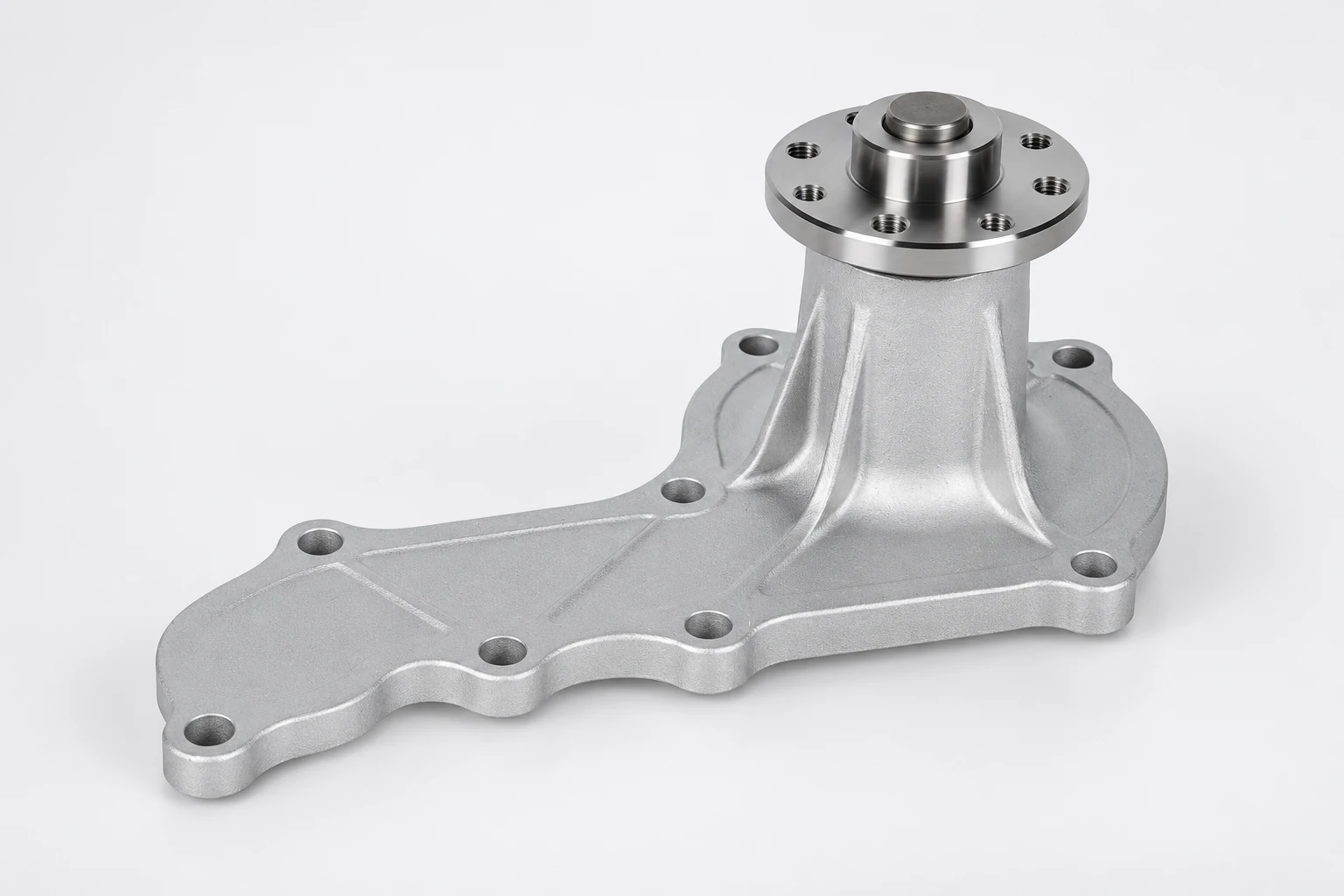

Jinrui publishes CZL-F-003 under its forklift water-pump category and prints 4FE1 immediately above the code. Three linked images belong to this product module. The principal view shows a silver-finish elongated mounting body and an upright drive-flange support. The page offers a traceable supplier reference and a view of its form; the readable module provides no dimensioned drawing or serial-number applicability statement.

Keep the reference and interfaces together

Start the enquiry with CZL-F-003 and the unchanged 4FE1 label, then supply the installed engine identity and existing assembly reference. A long mounting outline is useful for explaining which photograph belongs to the request, but its hole spacing, gasket profile and drive-flange position must come from a drawing or component record. This entry must not be selected simply because another pump also carries a familiar engine label.

Keep the supply package explicit

Keep the complete pump assembly separate from a housing, repair component or accessory offer. Ask which drive hub, impeller, sealing parts, pulley and gasket are actually supplied where relevant to the proposed assembly. The supplier must explain differences from the buyer’s record and provide a documented matching basis. No material grade, rotation direction, coolant performance or service-life figure is inferred from the silver appearance.

Questions for the proposed product

Which installed assembly is being matched?

Provide the engine nameplate, complete engine model and serial number, installed pump reference and parts-book record. Keep the supplier catalogue code separate from the installed part number.

Which interfaces and included parts define the offer?

Request a dimensioned mounting and drive drawing, connection positions, hub and pulley details, gasket specification and an itemised assembly list. A photograph does not establish dimensions or inclusion.

What should the written proposal confirm?

Ask the quoting supplier to state the exact code, engine-variant evidence, revision, condition, origin, quantity, current delivery terms and any unresolved differences. Catalogue inclusion establishes neither stock nor an approved replacement.

From product research to a comparable request

Prepare one written component requirement with the engine and installed pump identity, existing part records, photographs, quantity, destination and requested supply scope. Compare the exact proposed assembly and record unresolved interface or reference differences. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The current official About body names Zhejiang Jinrui Pump Co., Ltd. and describes engine water-pump development, production and sales. Its public contact location is in Longquan, Lishui, Zhejiang. The selected codes, printed labels and dedicated image galleries were read in the forklift water-pump catalogue. Generic category prose also describes hydraulic lifting; that prose is not adopted as a technical description of these engine cooling components. No serial-number application, dimensioned drawing, material grade, flow, authorization, current stock or tested life is established here. Obtain the exact supplier proposal and matching documents. Independent illustrations explain visible form rather than proving a delivered assembly.
