Jinheng 008 welded structural assembly reference

What the official reference establishes

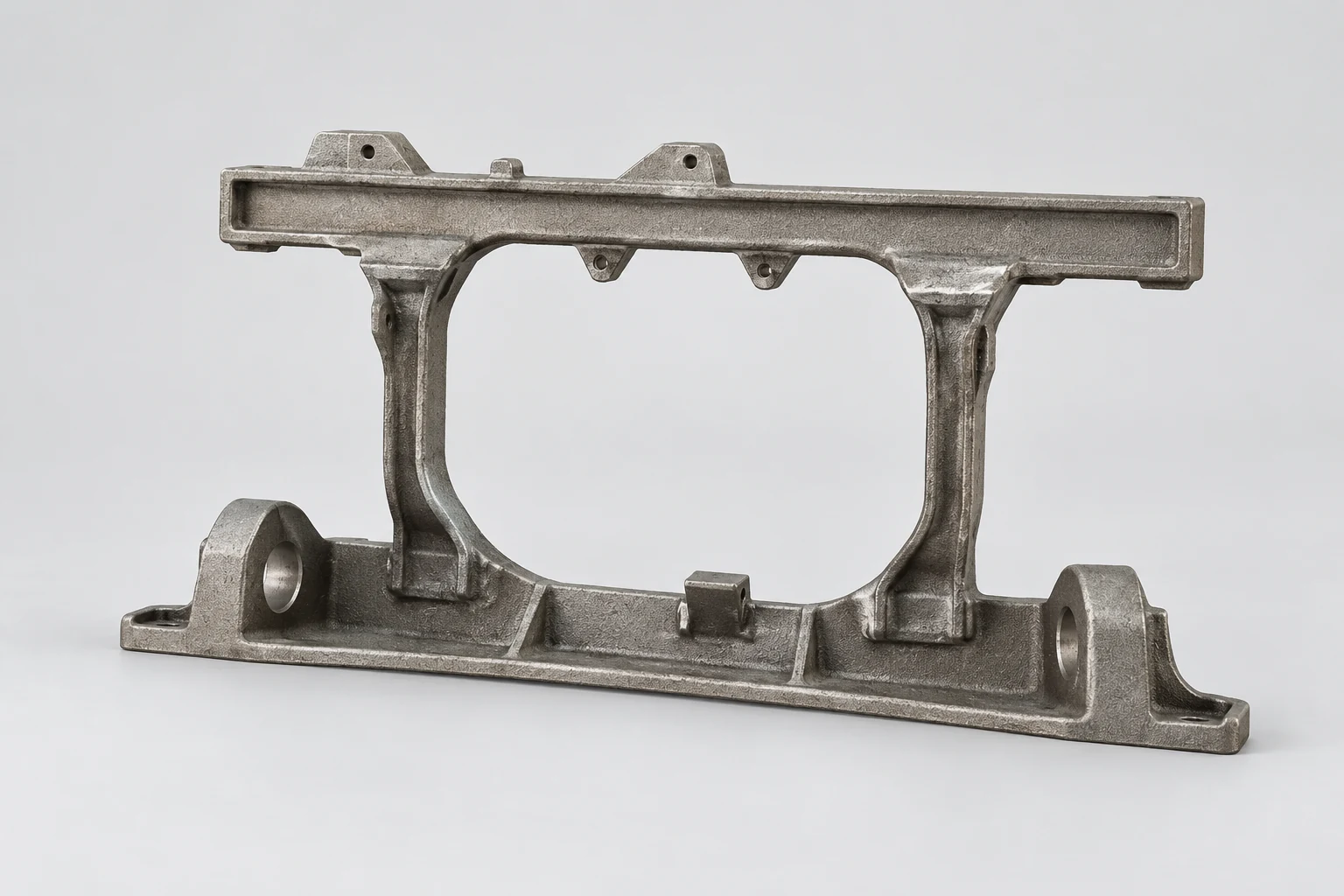

Jinheng’s official product route places entry 008 under its category for welded sheet-metal and casting assemblies. The dedicated photograph shows an open structural form with long upper and lower members, two uprights and mounting features. The image is repeated in the page presentation, so it remains one catalogue reference. The visible number 008 is retained as a supplier website identifier; it is not presented as an OEM part number.

Keep the reference and interfaces together

Use the source URL and entry number to ask which current drawing describes the offered assembly. Supply the intended application, available assembly records, mating interfaces and required quantity. The website does not publish a dimensional drawing, material grade, tolerance schedule, joint specification or an approved vehicle association for this entry. A frame-like appearance cannot establish that it is an axle support, mast component or interchangeable truck part.

Keep the supply package explicit

Separate a finished assembly quotation from a rough component, machining-only job or welding service. Ask the supplier to define material and process responsibilities, included pieces, machining datums, finish, inspection requirements and drawing revision in its proposal. Where structural acceptance is relevant, the responsible technical parties must specify the requirements and evidence. No weld qualification, load capacity, fatigue life, fitment or brand authorization is inferred from this example.

Questions for the proposed product

What identifies the proposed item?

Keep the full supplier reference, revision, intended machine or application, quantity and destination in the request. A category photograph is not an installed part number. Ask the supplier to identify the exact drawing and supply scope.

Which documents support the comparison?

For a complete truck, request the configuration-specific datasheet and application limits. For a component, obtain the controlled drawing, material and process specification, interfaces and agreed inspection criteria. Keep unknowns visible rather than estimating from an image.

What belongs in the written offer?

Confirm the quoting entity, item condition and origin, included accessories or subcomponents, tooling where applicable, current delivery terms, warranty and acceptance documents. No image or directory entry establishes stock, certification, suitability or manufacturer approval.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The official company pages identify Ningbo Jinheng Machinery Manufacturing Co., Ltd. at Shanglijia Industrial Area, Yunlong Town, Yinzhou District, Ningbo. The YBD table, welded-assembly entry 008, sheet-metal entry 023 and forklift casting category were read with their original images. Repeated pallet pages share a table and are grouped; a rider-style image does not override the walking-operation row. Numbered components have no published controlled drawings or confirmed applications. Company-wide patents, certification, customer logos, production claims and application marketing are not independently audited. Source-based illustrations explain visible form, not stock, technical acceptance, a supplied kit or an approved replacement.
