Jinheng 023 sheet-metal component reference

What the official reference establishes

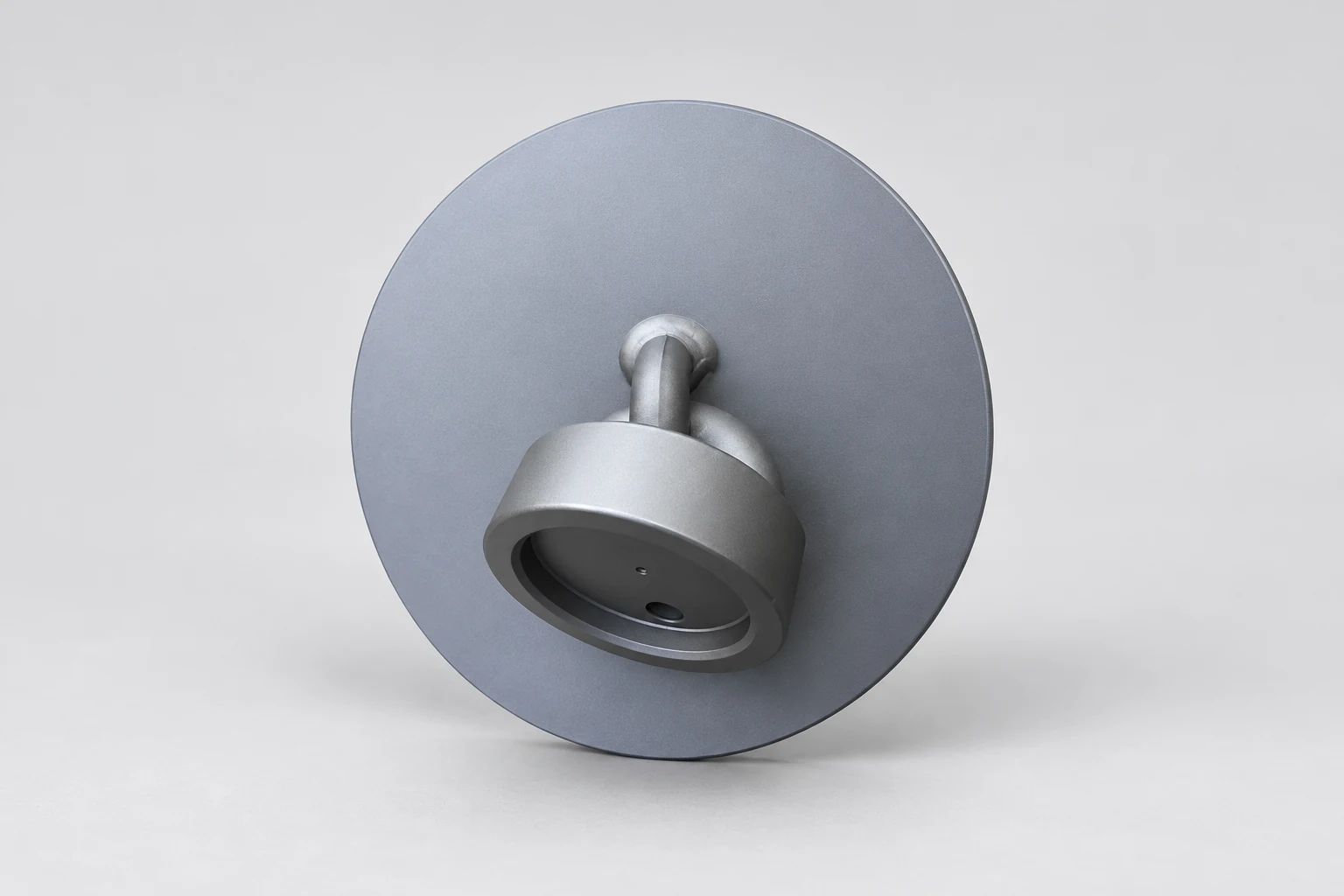

The official sheet-metal structural-parts category links entry 023 to its own product page and photograph. The image shows a circular plate with a short central projection and a cup-like cylindrical face. This page records that visible shape and the source identifier without assigning an unverified machine function. The repeated copies of the same page image do not represent separate parts or a supplied assembly set.

Keep the reference and interfaces together

Treat 023 as an enquiry locator within this supplier’s catalogue. It does not establish a material grade, plate thickness, bore size, concentricity requirement or equipment compatibility. Send a controlled drawing or an existing component record and ask whether the supplier’s current proposal addresses those exact interfaces. Appearance alone cannot identify it as a brake component, pulley, cover or approved replacement.

Keep the supply package explicit

Define whether the offer covers the complete illustrated form, individual pieces or a fabrication process. Agree material, thickness, dimensions, tolerances, joining and finishing requirements where applicable to the actual drawing. Ask for the relevant inspection and traceability records rather than treating a smooth presentation as evidence of precision. Tooling, samples, quantity, delivery, condition and included accessories belong in a current written quotation; no production capacity or stock promise is made here.

Questions for the proposed product

What identifies the proposed item?

Keep the full supplier reference, revision, intended machine or application, quantity and destination in the request. A category photograph is not an installed part number. Ask the supplier to identify the exact drawing and supply scope.

Which documents support the comparison?

For a complete truck, request the configuration-specific datasheet and application limits. For a component, obtain the controlled drawing, material and process specification, interfaces and agreed inspection criteria. Keep unknowns visible rather than estimating from an image.

What belongs in the written offer?

Confirm the quoting entity, item condition and origin, included accessories or subcomponents, tooling where applicable, current delivery terms, warranty and acceptance documents. No image or directory entry establishes stock, certification, suitability or manufacturer approval.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The official company pages identify Ningbo Jinheng Machinery Manufacturing Co., Ltd. at Shanglijia Industrial Area, Yunlong Town, Yinzhou District, Ningbo. The YBD table, welded-assembly entry 008, sheet-metal entry 023 and forklift casting category were read with their original images. Repeated pallet pages share a table and are grouped; a rider-style image does not override the walking-operation row. Numbered components have no published controlled drawings or confirmed applications. Company-wide patents, certification, customer logos, production claims and application marketing are not independently audited. Source-based illustrations explain visible form, not stock, technical acceptance, a supplied kit or an approved replacement.
