Supplier product reference · reviewed 18 October 2026
A slim six-optic lamp with selectable beam and termination options, keeping nominal and effective power wording distinct.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
The NW-S6 title uses 18W, while the body explicitly describes effective power as 15W and the table lists 15W maximum. The page preserves these different labels rather than declaring an independently measured consumption or simply choosing the larger number. Ask the supplier for the rating basis and current specification when electrical demand matters.

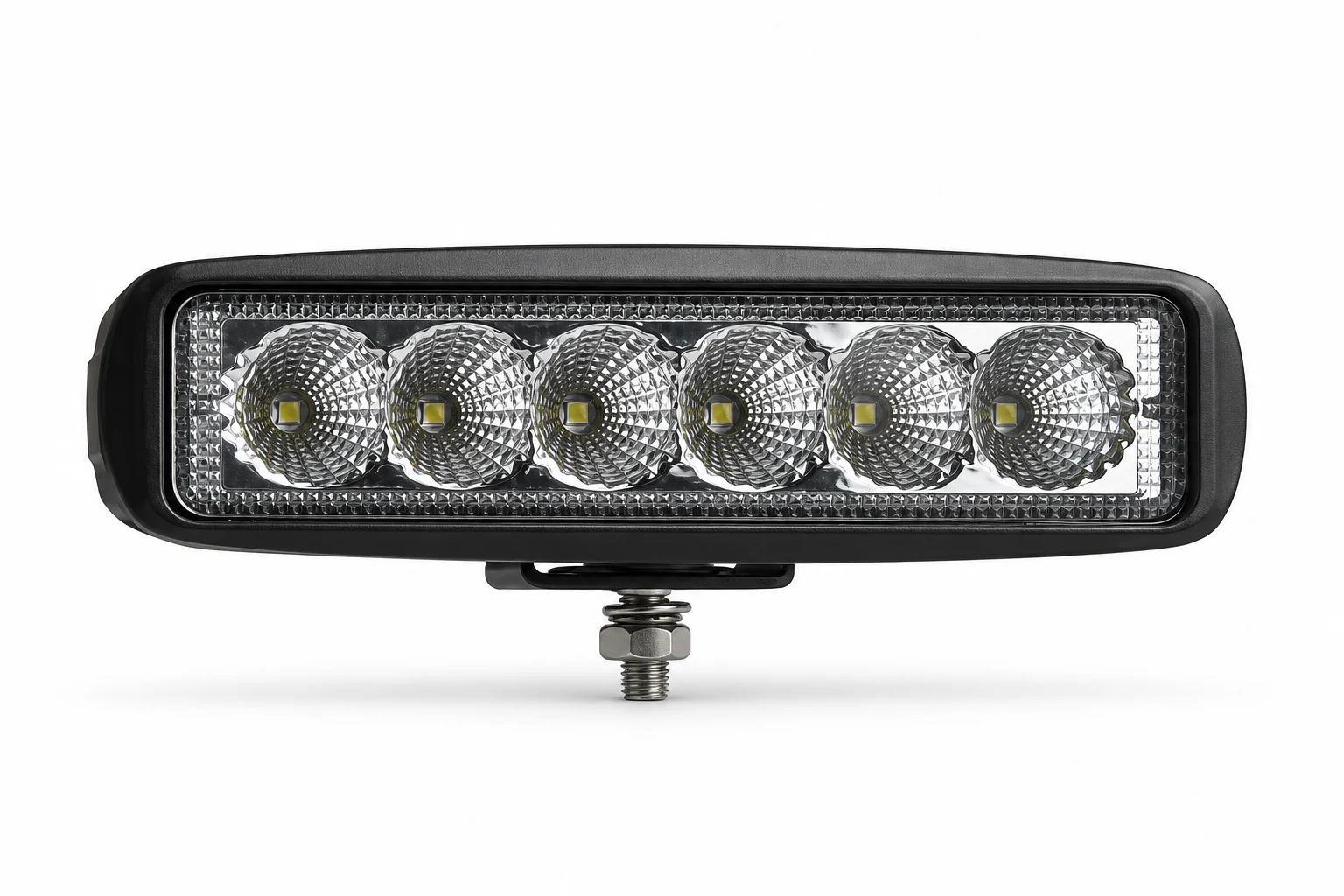

The prepared picture retains the source’s six circular optics, narrow black housing and lower mounting arrangement. Spot and flood are described as options, not proof that one lamp switches between both patterns. The body also offers DT, AMP and cable-end terminations while the table names cable end; the supplied connection must be selected explicitly.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
State spot or flood and request the exact version sheet, including how 18W nominal and 15W effective/table wording are used. The 1300lm entry remains a supplier claim. Obtain available photometric evidence for the selected optic instead of inferring beam reach from power alone.
Request DT, AMP or cable end by name and confirm the mating part and lead length. Ask for the actual bracket drawing, hardware and clearance requirements. A body claim about adjustment does not establish every possible mounting attitude or installation suitability.
The table envelope is 160 × 45 × 50mm, but the quotation should include fixing pitch and the complete assembly with its chosen bracket. Do not treat the six-inch title as an exact installed length or assume a visually similar lamp shares its mounting footprint.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
Official NW-S6 body and table support identification and selectable beam/termination choices. Effective-power wording is not an independent test result. Anti-glare, approval, protection and universal-vehicle claims have not been verified for a particular installation.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/6inch-18w-flood-and-spot-work-light.html
Product body and specification table reviewed on 18 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
