Supplier product reference · reviewed 20 October 2026
300 mm nominal / 330 mm overall drawing reference with separate supply ranges, source limits and version-specific purchasing questions.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
The shortest NSVP drawing reference separates a 300 mm nominal light from a 330 mm overall length. The code is explicitly listed in the supplier table, and the shared drawing supplies the nominal and overall length sets. These references support a separate model entry while the parent page remains the family overview.
A short compartment or mounting surface should be compared with the complete envelope rather than the numeric suffix. The longer total includes end portions in the family drawing; the source does not establish that every quoted assembly has identical fittings. A 300 mm NSLP or NSLD label is not a substitute for an NSVP30 drawing.
The NSVP30 power cell prints an extra character before its maximum-power wording. This page intentionally withholds a definitive wattage: it does not reinterpret that mark as 4 W, assume 7.2 W from the next row, or create an efficiency claim from the 420 lm entry.

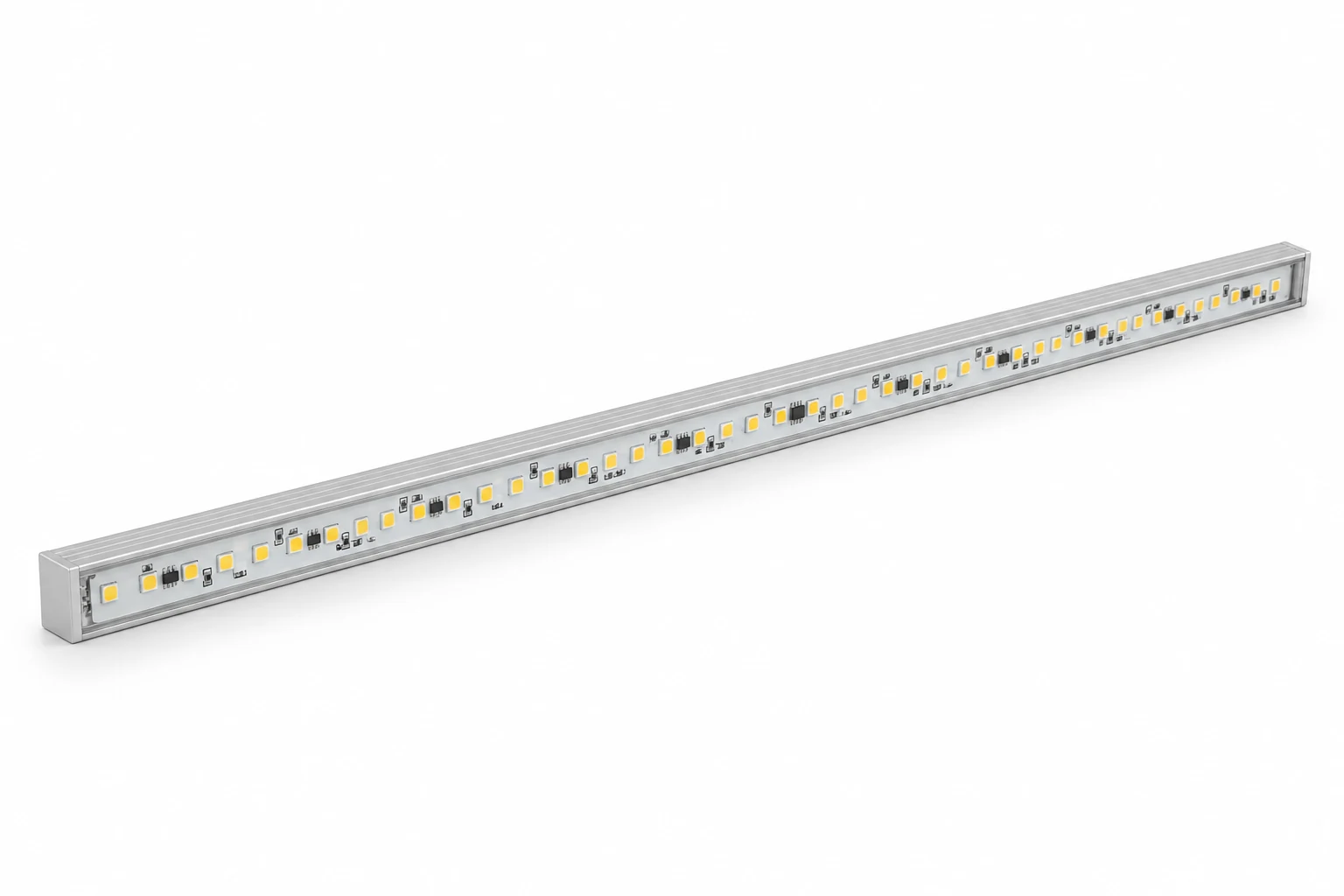

The family table describes colour-temperature choices of 4500 K, 5000 K and 6000 K. Choose the actual configuration in the written offer rather than assigning a colour temperature by its position beside a model row. A sensor-like element in a family photograph is not evidence that each quoted light includes a sensor, switch or a particular control function. The independently prepared illustration on this page represents the family appearance, not an authenticated model sample.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request a current NSVP30-labelled drawing showing the nominal and overall length, plus a corrected power entry. Keep the quoted electrical version with that drawing. The unclear PDF cell is a documentation gap, not evidence of a new suffix, upgraded output or interchangeable 500 mm lamp.
Ask the supplier to identify the selected supply version, operating limits and current power data for NSVP30. The PDF uses 10–16 V or 24–30 V wording; it does not document continuous operation throughout 10–30 V. Keep those separate ranges intact and request the relevant current sheet instead of assuming every unit accepts both. A lumen entry is not a light-distribution report or an electrical connection instruction.
Ask for fixing details, cable exit, selected 1 m or 2 m lead and termination on the configuration drawing and packing list. The catalogue mentions clip and screw mounting without establishing every supplied combination or stock position. Request confirmation of any sensor or switch separately. Obtain environmental documentation tied to the offered version if required; a shared IP67 entry is not a certificate, independent test result or confirmation of protection after installation.
A catalogue input range does not establish compatibility with an electric forklift’s traction battery or accessory circuit. Ask the equipment supplier to identify the documented accessory supply, control interface and intended application. The truck model, serial number and installed-component record remain important even when a lamp or controller looks similar.
Primary evidence is official PDF page 25, printed 47–48. The drawing labels mm while the table dimension cells end in m; drawing values are identified explicitly and a corrected current document is still requested. Publication date, inventory, authorization, certifications and machine fit remain unverified. The illustration does not establish dimensions, LED count, controls, mounting scope or measured output.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
Official PDF page 25 (printed 47–48), visually read on 20 October 2026; fresh PDF bytes match the local source. No publication date is inferred from its filename. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
