Supplier product reference · reviewed 19 October 2026
A separately named 9-optic work-light reference from the official PDF catalogue, with power and mounting-scope questions kept explicit.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.

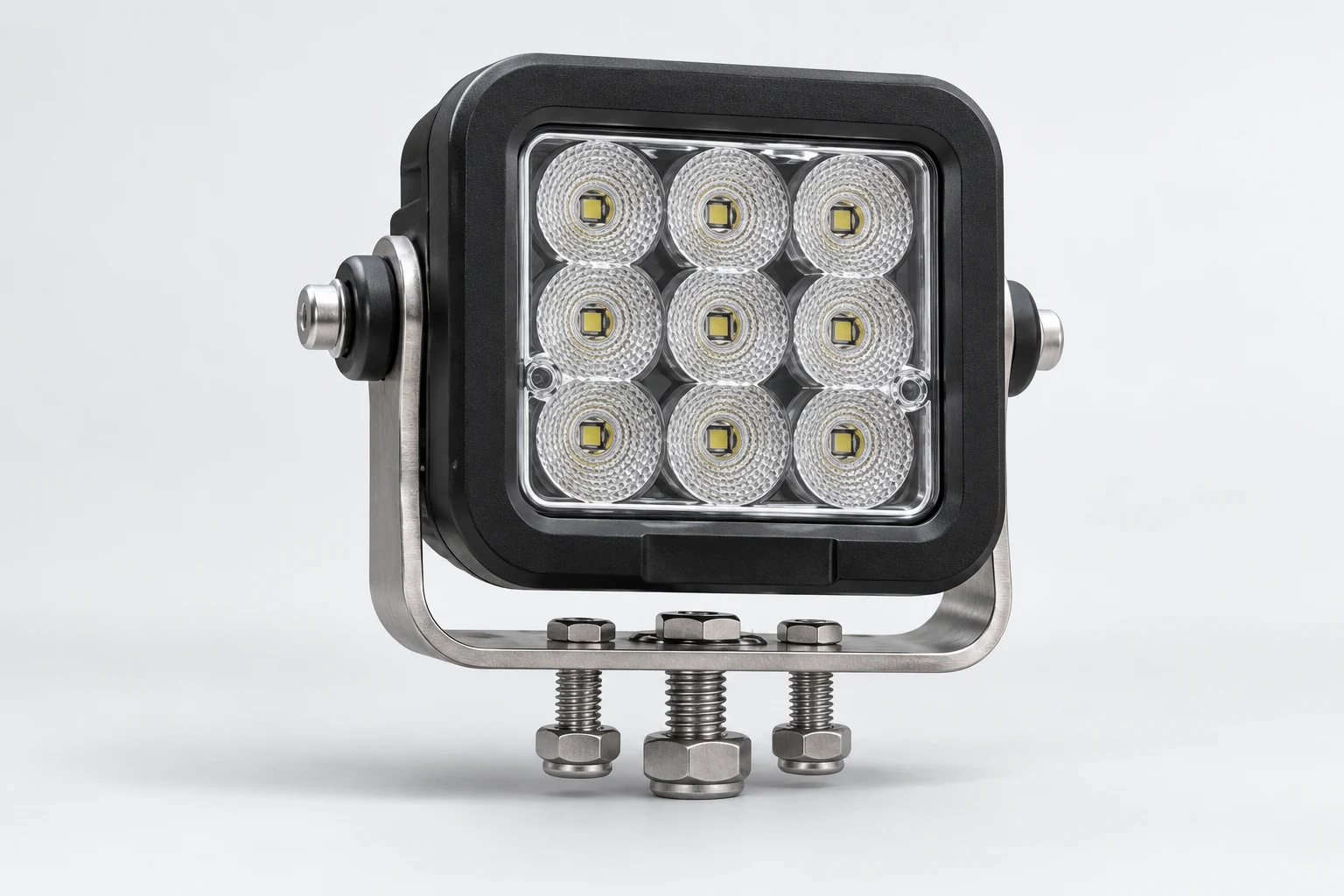

NW-FM90 appears on PDF page 29 in a separate model row, with its own product photograph and drawing. It is not a second title for NW-FM60 simply because both belong to the same supplier work-light section. The 9 circular optics and the different dimensional row provide concrete identification points. Keep the full model code in the purchasing brief instead of selecting only by a shared lamp category.
The catalogue gives an LED arrangement of 9 ×10W and a 36W max-power entry. The emitter label is not a measured total input and must not be multiplied into a replacement electrical specification. The shared table also includes colour-temperature, enclosure and operating-temperature entries. They remain catalogue data for the illustrated revision, not an independent test or confirmation that every present-day offer uses the same components.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request NW-FM90 by its full code and ask for a dated specification, matching label and current photograph. Keep NW-FM60 and the unresolved NW-M50/NW-FM50 naming issue separate. The official catalogue source has no independently established issue date in this review, so current supply and revision still require confirmation.
Ask the supplier to reconcile the 36W row with the emitter arrangement and provide documented operating consumption for the selected optical version. The catalogue lumen figure and IP68 claim are not verified measurements here. Obtain supporting reports if those properties are material to the purchase.
Request a labelled current drawing showing lamp body, bracket, studs, adjustment envelope and connector or lead arrangement. The table envelope and additional drawing annotations do not by themselves resolve whether all mounting hardware is included in each dimension. Do not treat a similar bracket photograph as proof of vehicle fit.
The 10–32V catalogue range is an accessory-lamp input entry, not a statement that the lamp can connect to a forklift traction battery. Ask the equipment supplier to document the accessory supply and mounting requirements for the intended application. No wiring or installation procedure is provided, and the product is not verified as a substitute for an original truck lighting assembly.
The official PDF supports NW-FM90 as a separate named catalogue reference and provides the attributed table values. It does not establish stock, current revision, measured output, protection-test results, an approved reversing function or compatibility with a particular machine. Shared table cells must not be read as proof that every function or component is interchangeable.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
Official PDF catalogue page 29 (printed 55–56) reviewed on 19 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
