Supplier product reference · reviewed 19 October 2026
A separately documented larger half-dome projection lamp with a 20 W catalogue entry; keep colour, electrical version and mounting requirements together.
Published identification
Supplier-published entries. Ratings and configuration still require current documentation.
The official catalogue separately labels NW-U20, with its own product photograph, drawing and specification row. The name is not a new spelling for NW-U5: that existing reference has a different body, 5 W power entry and envelope. This page supplies the missing independent reference without splitting colour choices into duplicate product pages.

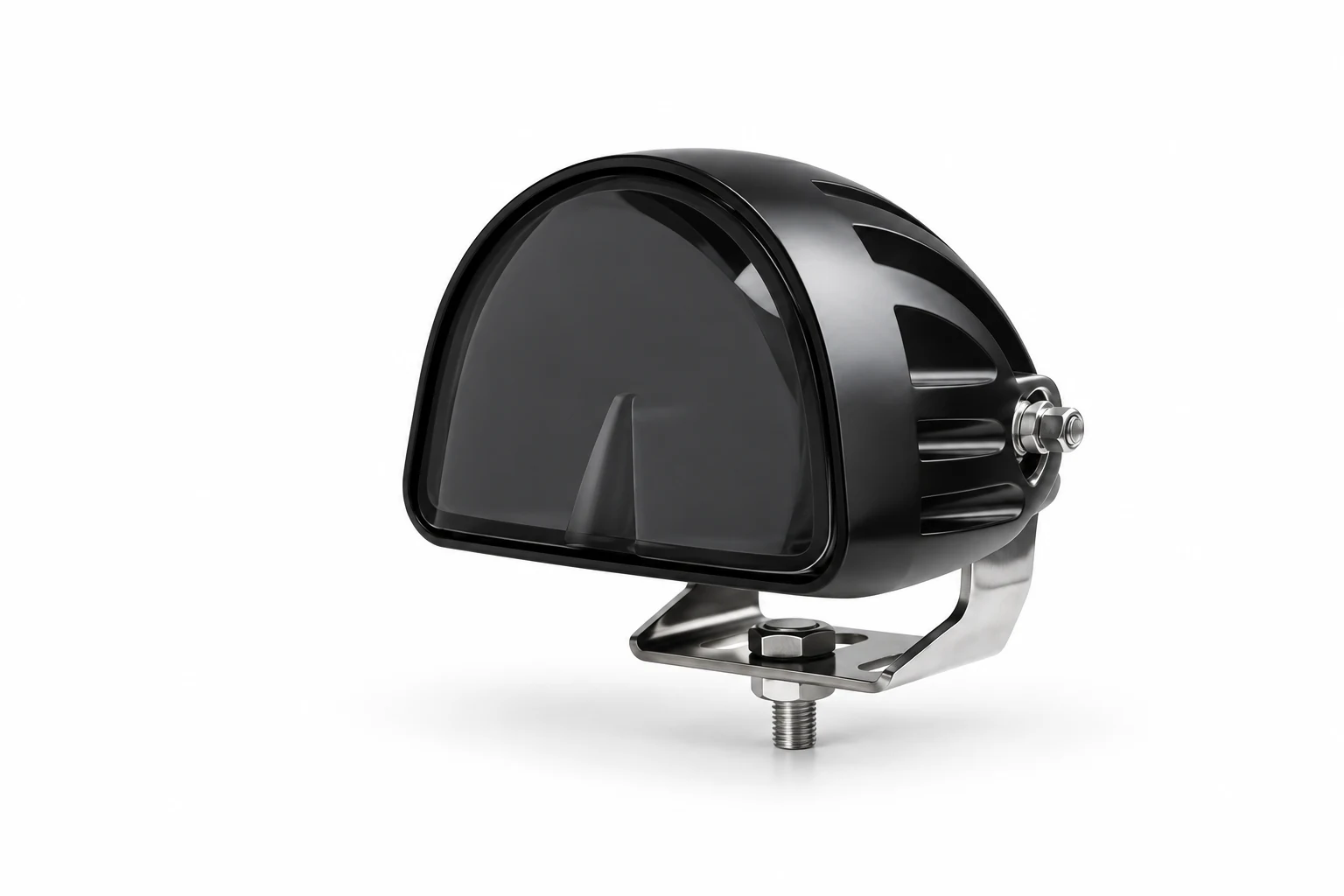

The larger half-dome projection lamp is represented here from the supplier product photograph only. The catalogue also depicts a projected floor marking, but that application artwork is not a measured result and is not recreated in this page’s image. Lens appearance does not establish optical pattern, distance, visibility under ambient light or a protective function.
NW-U20 has a larger half-dome body and a 20 W table entry. The smaller NW-U5 is a separate 5 W reference, not an automatically equivalent substitute. The similarly named NW-L20 also lists 20 W but has an oval twin-projector body. The common wattage therefore does not identify the required lamp.
Procurement checklist
Keep the item identity, physical version and supply scope together. Use the questions alongside the published specifications when preparing a sourcing brief.
Request the complete NW-U20 reference, selected colour and current input sheet. The shared catalogue wording separates 9–80 V red from 9–110 V blue or green. Keep the colour-specific range attached to the quotation; do not assign the broadest range to every unit. The 20 W value is supplier-published, not a witnessed measurement. Ask for current demand and interface documentation for the selected version.
The table gives 128.5 × 92 × 120 mm, while the drawing also contains bracket and overall annotations. The drawing shows an overall bracket-height annotation separate from the 92 mm body height. Obtain a current labelled drawing covering the housing, pivot bracket, stud, fixing positions, adjustment envelope and lead. Do not derive installation clearance from the prepared image or assume that all pictured hardware is included.
Ask the supplier to identify the optical version and provide any pattern, distance and photometric information under stated conditions. Request a current packing list and the equipment supplier’s accessory requirements. A demonstration photograph is not evidence of collision prevention, guaranteed conspicuity, universal forklift fit or an approved safety function. No aiming distance or wiring procedure is prescribed here.
A lamp listed under forklift lights is not by itself a verified protective system. The catalogue does not establish reduced accident risk or replace the equipment supplier’s instructions. Ask for the documented supply, control interface, mounting requirements and intended application for the actual machine. A broad catalogue input range is not permission to connect an accessory to a traction battery. No wiring, aiming or installation procedure is supplied.
Official catalogue page 29 supports the separate NW-U20 label, product appearance and attributed specification row. Its publication date is unverified. The shared approval wording, IP entry and application images remain supplier claims requiring applicable documents. Stock, current revision, authorization, measured optical performance and machine compatibility are not verified.
This reference is neither a quotation nor a stock, delivery or authorisation commitment. Request a current written proposal from the quoting entity. Preserve the item reference, quantity, destination and included accessories in that proposal so that changes of configuration remain visible.
https://www.novavehicle.com/upload/6649/20251126091527313516.pdf
Official PDF catalogue page29 (printed55–56) reviewed on 19 October 2026. Purchasing explanations are ForkliftIQ editorial guidance. No repair, wiring or installation procedure is provided.
