XILIN OPSM mini order picker

What the official reference establishes

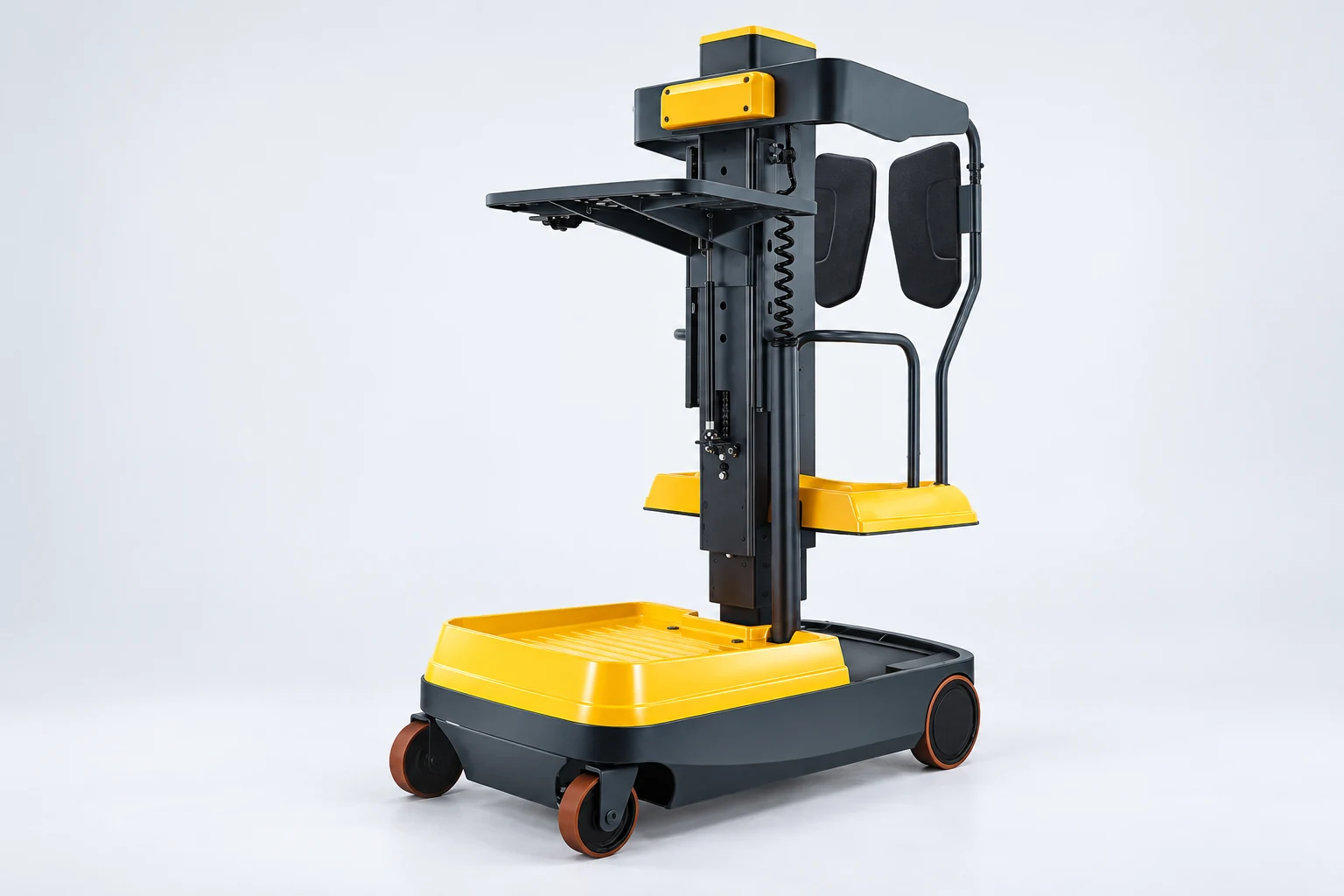

The official Ningbo Ruyi product page identifies OPSM as a mini order picker. Its dedicated photograph shows a compact wheeled chassis, upright mast, standing platform and front tray. The technical table distinguishes a 3000 mm platform lift from an approximately 5000 mm picking height. Those are different measurements: the higher figure must not be described as the platform height or guaranteed usable reach for every operator and task. The existing XILIN OPS15 reference concerns another product and is retained rather than copied here.

Keep the reference and interfaces together

The table lists three separate load entries: 90 kg for the goods tray, 150 kg for the load-carrying tray and 130 kg for the operator compartment. The source labels are retained as separate entries, not combined into a total machine payload. Ask the supplier to identify each tray in the current drawing and explain permitted combinations. Published overall length and width are 1500 × 750 mm, with a listed 1300 mm turning radius. These catalogue figures support initial comparison, not a site-clearance approval.

Keep the supply package explicit

The page describes differential turning, an adjustable front tray and a built-in charger. Its protection and automatic speed-reduction statements are supplier descriptions, not an independent safety assessment. The battery entry reads 24 V / 88(220) Ah; the parenthesized value is not a confirmed standard package. Request the actual battery configuration, platform restrictions, manual and workplace assessment. No zero-maintenance cost, safe elevated operation or suitability for installation work is promised.

Questions for the proposed product

What belongs in the requirement?

Give the full proposed model and revision, load dimensions and mass, operating route, quantity and destination. Describe the task and site constraints before comparing quotations. A catalogue image does not establish the equipment configuration or suitability.

Which current documents are needed?

Request a configuration-specific datasheet, applicable operating manual, load or towing limits and matched battery/charger information. Have the responsible supplier assess the actual workplace and duty. Keep discrepancies between web text and tables open until documented.

What should the written offer identify?

Confirm the quoting company, exact machine, condition and origin, included battery, charger and accessories, delivery terms, warranty and acceptance documents. Existing contact and purchasing links are preparation routes; clicking them is not a completed or qualified enquiry.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The official About and Contact pages identify Ningbo Ruyi and the XILIN brand at No. 656 Taoyuan North Road, Ninghai, Ningbo. Four detail bodies, photographs and technical images were read. Separate model columns and measurement labels are retained. QDD electrical/braking descriptions differ between prose and table; CSD20 nominal and elevated-capacity entries do not agree. Current documents must resolve those limits before selection. Company awards, patents, market share, maintenance claims, certification and workplace suitability are not independently audited. Illustrations explain visible family form, not stock or an approved configuration.
