Aplifts EPA20E walkie electric pallet truck

What the official reference establishes

The official Aplifts product page names EPA20E and describes a walkie-type electric pallet truck. Its linked product-detail file contains the actual table and narrative; the empty-looking static detail area alone would miss that evidence. The table lists 2000 kg capacity at a 500 mm load centre. These are supplier catalogue figures, not an independently measured rating or approval for a different load centre. No rider platform or seated configuration is inferred from the photograph.

Keep the reference and interfaces together

The table gives fork dimensions of 57/160/1150 mm and alternative widths over forks of 550/685 mm, while overall width is listed as 685 mm. Keep those entries as printed and ask which fork-width configuration the offered truck uses. A 24 V / 120 Ah battery entry is published, together with 1.2 kW drive and 0.8 kW lifting motors. Battery chemistry, charger details, usable runtime and a current build revision are not established by those entries.

Keep the supply package explicit

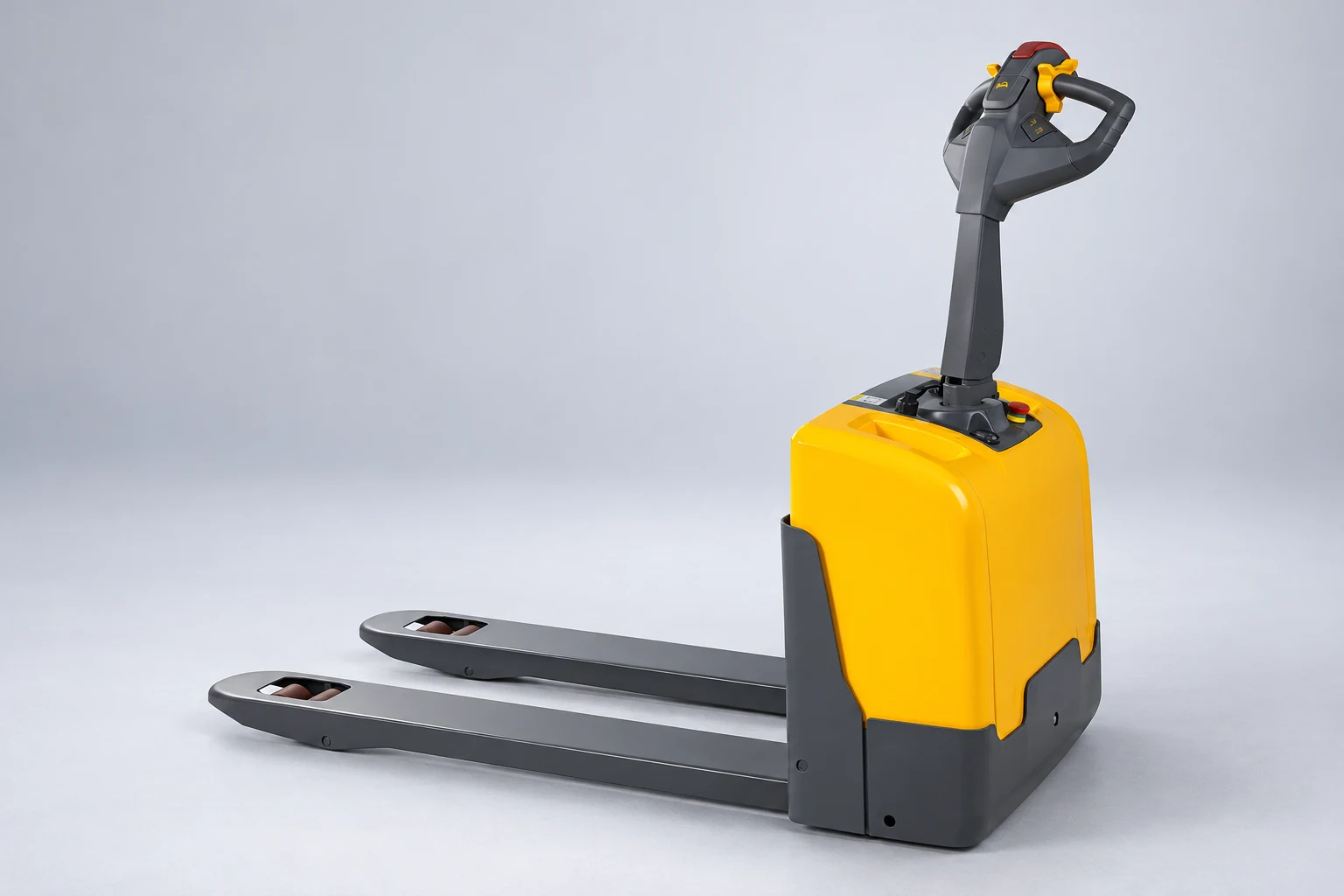

Prepare pallet entry dimensions, load distribution, travel route and duty so the supplier can identify the correct fork and energy package. The narrative describes an AC system, vertical motor and regenerative braking, but its claims about response, energy savings, battery service life and frame durability are not treated as independent performance guarantees. Request the current specification, operating limits, supplied battery/charger and acceptance documents. The illustration follows the external form and does not prove current stock or an exact delivered configuration.

Questions for the proposed product

What belongs in the enquiry?

Keep the exact supplier model, selected configuration, load dimensions and centre, duty, quantity and destination together. Describe the pallet, working surface or drum from its actual record. Similar photographs and model-number digits do not establish compatibility or a rating.

Which documents should support the offer?

Ask for the current model-specific datasheet, applicable capacity and operating limits, controlled dimensions and manual. Request a documented explanation of alternative table entries, energy equipment and included accessories. Have the responsible supplier assess the actual application and keep unresolved matters visible.

How should the supply scope be recorded?

Confirm the quoting legal entity, condition and origin, complete machine versus accessories, agreed inspection documents, delivery terms and warranty. Props in an illustration are not included automatically. Existing purchasing tools prepare a comparable requirement; a link click is not an effective enquiry or an order.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The official About and Contact pages identify Zhejiang Aplifts at Jiangshan Town, Yinzhou, Ningbo. Four dedicated product bodies and mapped source images were reviewed. EPA20E, BSL and HTA technical tables are supplied through linked detail-content files, which were read as text data. Model columns and BSL configuration alternatives remain distinct. DTF450B has no published technical table in its inspected detail area; no load or drum match is inferred from the code or image. Factory, staffing, OEM, service, safety and performance marketing is not independently audited. Current written specifications, an exact offer and responsible application review remain necessary. Illustrations explain form, not stock, test results or an included kit.
