Zhejiang Aplifts supplier profile / HTA1000 / HTA1500 / HTA2000
Supplier catalogue product referenceAplifts HTA1000 / 1500 / 2000 scissor lift tables
Three supplier model columns grouped in one goods lift-table family. Maximum tabletop height, minimum height and vertical rise are retained as separate measurements.
Identify the enquiry scope
- Supplier model columns
- HTA1000 / HTA1500 / HTA2000
- Corresponding catalogue capacities
- 1000 / 1500 / 2000 kg
- Table heights and rise
- 380 mm minimum; 1000 mm maximum; 620 mm rise
- Tabletop and service weights
- 1200 × 600 × 60 mm; 165 / 180 / 190 kg respectively
Reviewed 28 October 2026. Source dating: Official body, original image and linked detail table where present reviewed 28 October 2026. No current technical revision or launch date is inferred from source file dates.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
The official page groups HTA1000, HTA1500 and HTA2000 under a heavy-duty single-scissor lift-table reference. Its linked table assigns capacities of 1000, 1500 and 2000 kg respectively. All three columns list a maximum tabletop height of 1000 mm, minimum table height of 380 mm and lifting rise of 620 mm. The rise is not another maximum height, and none of these supplier figures is an independent load-test result.
Keep the reference and interfaces together

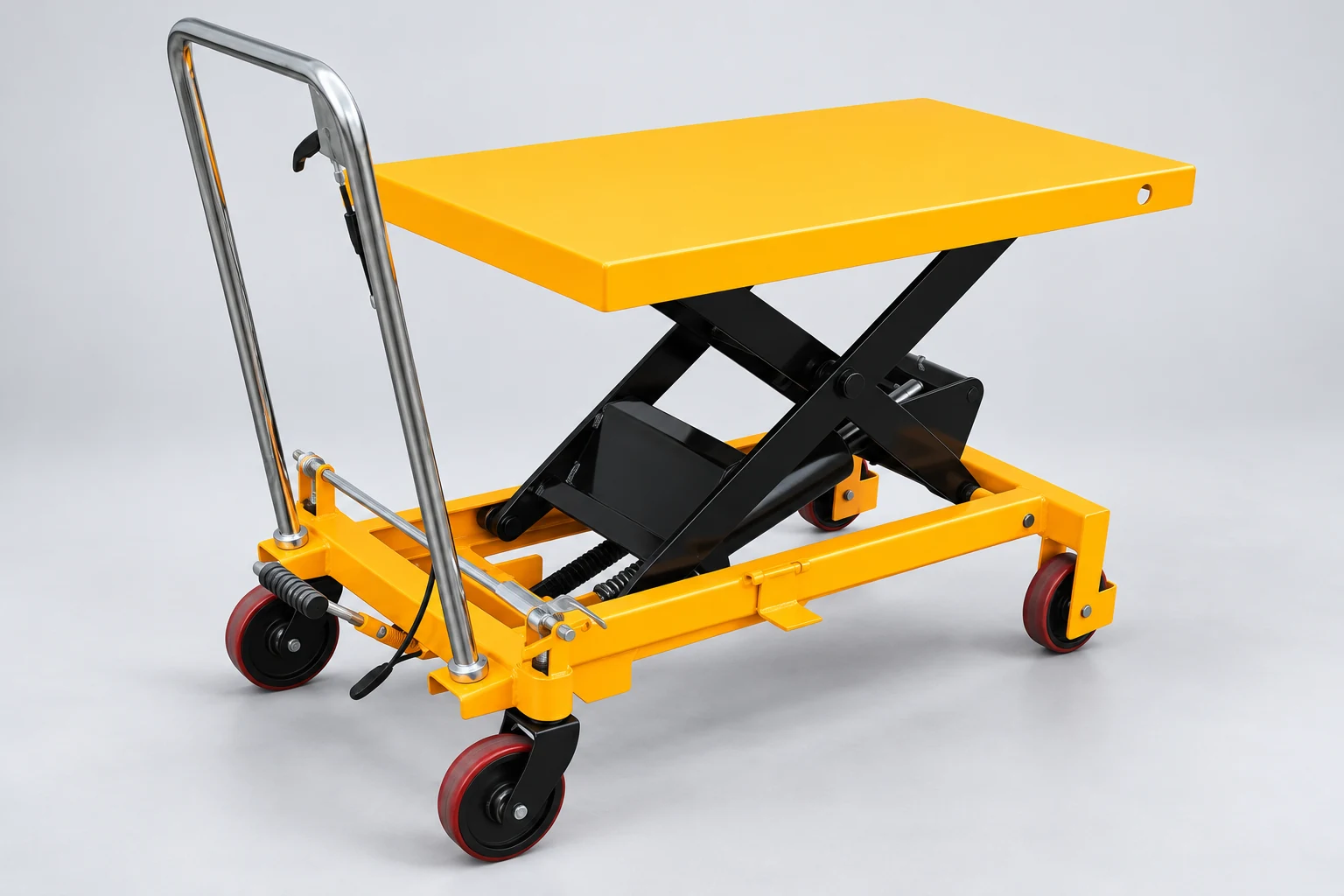

The common tabletop entry is 1200 × 600 × 60 mm and wheel diameter is 150 mm. Service weights differ by model: 165, 180 and 190 kg respectively. Preserve the model-to-capacity and model-to-weight associations rather than presenting one universal package. The source image shows a mobile goods table with a single scissor structure, push handle, wheels and foot control. It does not establish an electric drive, battery or personnel-lifting configuration.
Keep the supply package explicit
Ask the supplier for the proposed model, current load-distribution limits, tabletop and wheel details, operating duty and manual. Agree the application and acceptance requirements for the actual goods and workplace. The supplier mentions an overload bypass, protection bracket and rear-wheel brakes; those feature statements are not an independent safety assessment or approval for carrying people. Confirm the assembly and accessories included in the written offer and retain any unresolved drawing or configuration differences.
Questions for the proposed product
What belongs in the enquiry?
Keep the exact supplier model, selected configuration, load dimensions and centre, duty, quantity and destination together. Describe the pallet, working surface or drum from its actual record. Similar photographs and model-number digits do not establish compatibility or a rating.
Which documents should support the offer?
Ask for the current model-specific datasheet, applicable capacity and operating limits, controlled dimensions and manual. Request a documented explanation of alternative table entries, energy equipment and included accessories. Have the responsible supplier assess the actual application and keep unresolved matters visible.
How should the supply scope be recorded?
Confirm the quoting legal entity, condition and origin, complete machine versus accessories, agreed inspection documents, delivery terms and warranty. Props in an illustration are not included automatically. Existing purchasing tools prepare a comparable requirement; a link click is not an effective enquiry or an order.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The official About and Contact pages identify Zhejiang Aplifts at Jiangshan Town, Yinzhou, Ningbo. Four dedicated product bodies and mapped source images were reviewed. EPA20E, BSL and HTA technical tables are supplied through linked detail-content files, which were read as text data. Model columns and BSL configuration alternatives remain distinct. DTF450B has no published technical table in its inspected detail area; no load or drum match is inferred from the code or image. Factory, staffing, OEM, service, safety and performance marketing is not independently audited. Current written specifications, an exact offer and responsible application review remain necessary. Illustrations explain form, not stock, test results or an included kit.
